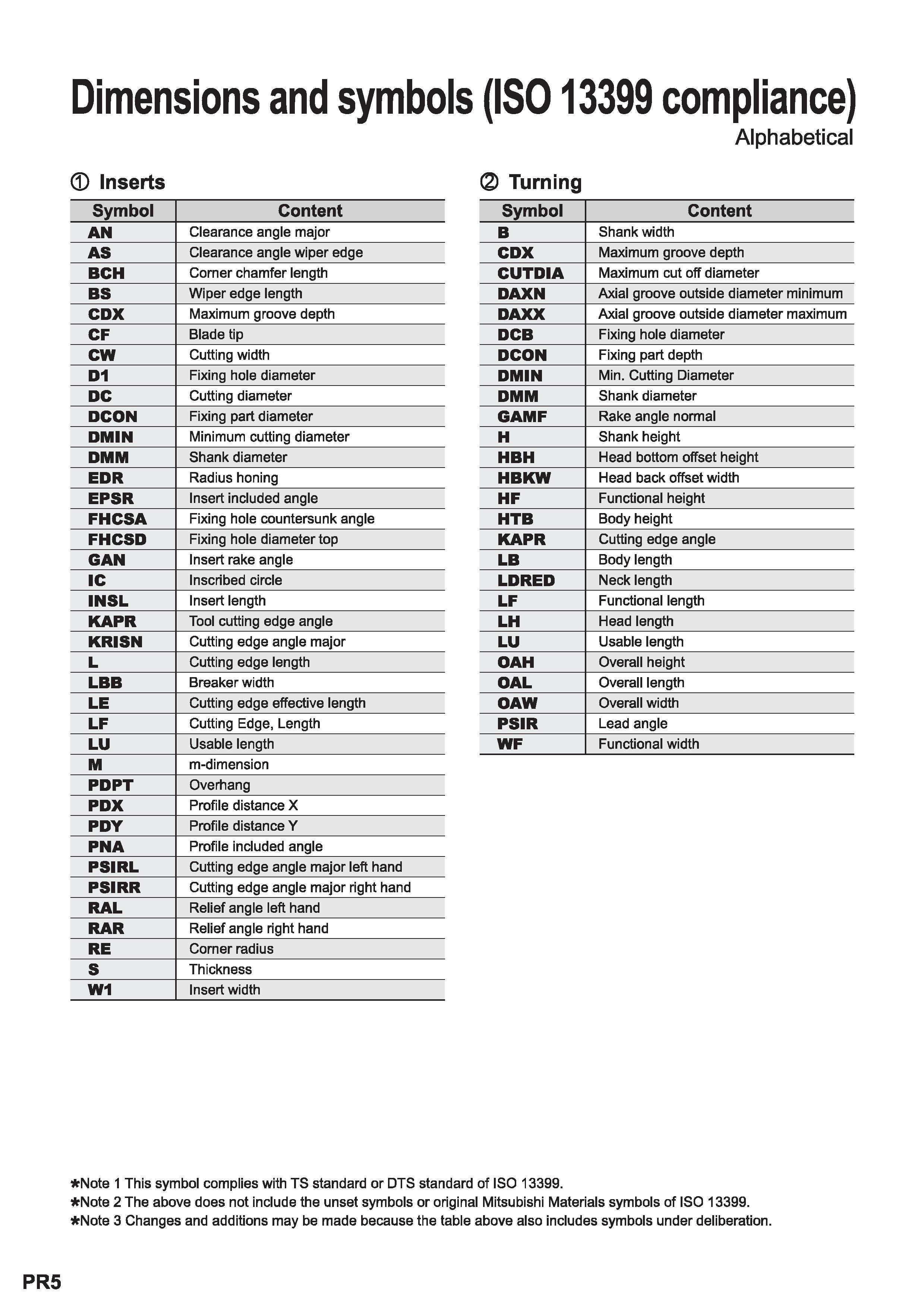

Dimensions and symbols (IS0 13399 compliance) 0 Inserts Symbol Content AN Clearance angle major AS Clearance angle wiper edge BCH Corner chamfer length BS Wiper edge length CDX Maximum groove depth CF Blade tip CW Cutting width D1 Fixing hole diameter DC Cutting diameter DCON Fixing part diameter DMIN Minimum cutting diameter DMM Shank diameter EDR Radius honing EPSR Insert included angle FHCSA Fixing hole countersunk angle FHCSD Fixing hole diameter top GAN Insert rake angle 1C Inscribed circle INSL Insert length KAPR Tool cutting edge angle KRISN Cutting edge angle major L Cutting edge length LBB Breaker width LE Cutting edge effective length LF Cutting Edge Length Usable length M m-dimension PDPT Overhang PDX Profile distance X PDY Profile distance Y PNA Profile included angle PSIRL Cutting edge angle major left hand PSIRR Cutting edge angle major right hand RAL Relief angle left hand RAR Relief angle right hand RE Corner radius S Thickness W1 Insert width Alphabetical Symbol Content B Shank width CDX Maximum groove depth CUTDIA Maximum cut off diameter DAXN Axial groove outside diameter minimum DAXX Axial groove outside diameter maximum DCB Fixing hole diameter DCON Fixing part depth DMIN Min. Cutting Diameter DMM Shank diameter GAMF Rake angle normal H Shank height HBH Head bottom offset height HBKW Head back offset width HF Functional height HTB Body height KAPR Cutting edge angle LB Body length LDRED Neck length LF Functional length LH Head length Usable length OAH Overall height OAL Overall length OAW Overall width PSIR Lead angle WF Functional width Note 1 This symbol complies with TS standard or DTS standard of ISO 13399. Note 2 The above does not include the unset symbols or original Mitsubishi Materials symbols of ISO 13399. Note 3 Changes and additions may be made because the table above also includes symbols under deliberation. PR5
