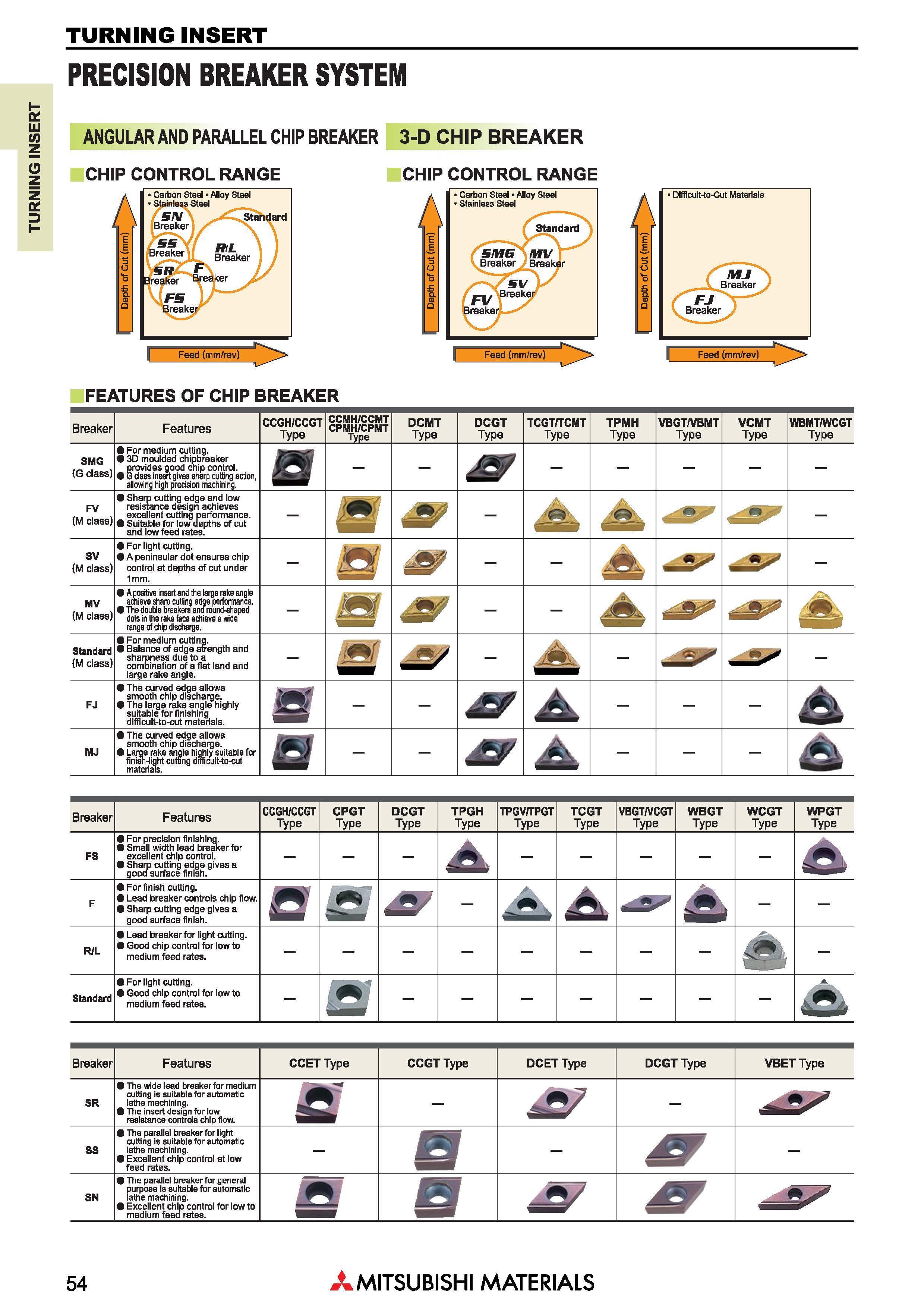

Токарные пластины Mitsubishi TURNING INSERT _ PRECISION BREAKER SYSTEM ANGULAR AND PARALLEL CHIP BREAKER 3-D CHIP BREAKER CHIP CONTROL RANGE CHIP CONTROL RANGE Подача (мм/оборот) Feed (mm/rev) FEATURES OF CHIP BREAKER Breaker Features CCGH/CCGT Type CCMH/CCMT CPMH/CPMT Type CMT Type DCGT Type TCGT/TCMT Type TPMH Type VBGT/VBMT Type VCMT Type WBMT/WCGT Type SMG (G class) For medium cutting. 3D moulded chipbreaker provides good cnip control. G dass insert gives sharp cutting action, allowing high predsion machining. a & FV (M class) Sharp cutting edge and low resistance design achieves excellent cutting performance. Suitable for low depths of cut and low feed rates. m A A m m ; SV (M class) For light cutting. A peninsular dot ensures chip control at depths of cut under 1mm. & Si -2 MV (M class) A positive insert and the large rake angle achieve sharp cutting edge performance. Tho double breakers ana round-shaped dots in the rake face achieve a wide range of chip discharge. in Standard (M class) For medium cutting. Balance of edge strength and sharpness due to a combination of a flat land and large rake angle. A -sx FJ The curved edge allows smooth chip discharge. The large rake angle highly suitable for finishing difficult-to-cut materials. & A A MJ The curved edge allows smooth chip discharge. Large raka angle highly suitable for finish-light cutting dirficult-to-cut materials. A & Breaker Features CCGH/CCGT Type CPGT Type DCGT Type TPGH Type TPGV/TPGT Type TCGT Type VBGT/VCGT Type WBGT Type WCGT Type WPGT Type FS For precision finishing. Small width lead breaker for excellent chip control. Sharp cutting edge gives a good surface finish. A A F For finish cutting. Lead breaker controls chip flow. Sharp cutting edge gives a good surface finish. a A. A A R/L Lead breaker for light cutting. Good chip control for low to medium feed rates. & Standard For light cutting. Good chip control for low to medium feed rates. B A Breaker Features CCET Type CCGT Type DCET Type DCGT Type VBET Type SR The wide lead breaker for medium cutting is suitable far automatic lathe machining. The insert design for low resistance controls chip flow. £ & SS The parallel breaker for light cutting is suitable for automatic lathe machining. Excellent chip control at low feed rates. m f SN The parallel breaker for general purpose is suitable for automatic lathe machining. Excellent chip control for low to medium feed rates. B s 54 Mitsubishi Materials
