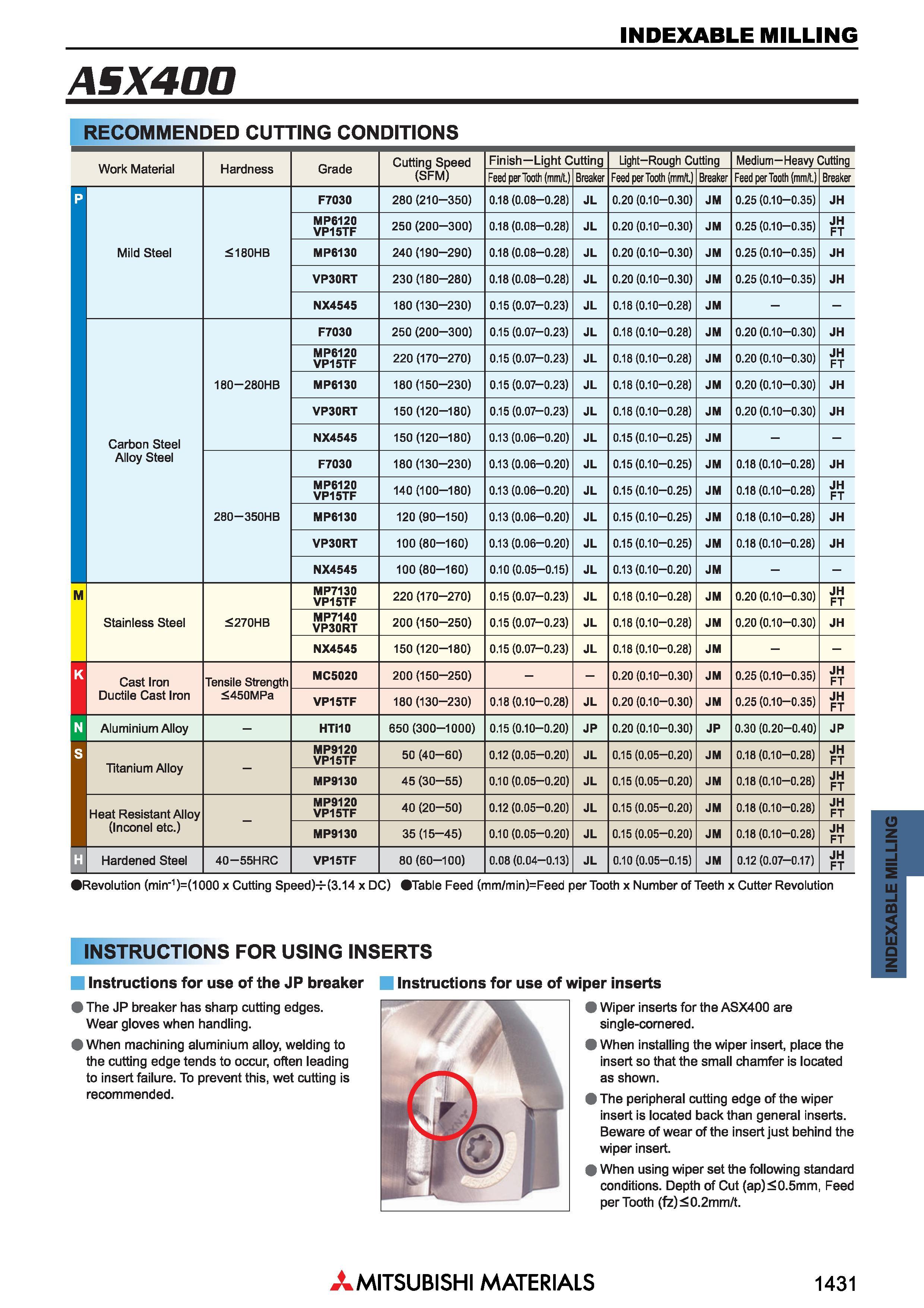

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ ASX400 Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS Обрабатываемые материалы Work Material Hardness Grade Cutting Speed Finish Light Cutting Light-Rough Cutting Medium Heavy Cutting (SFM) Подача на зуб Feed per Tooth (mm/t.) Breaker Подача на зуб Feed per Tooth (mm/t.) Breaker Подача на зуб Feed per Tooth (mm/t.) Breaker F7030 280 (210-350) 0.18 (0.08-0.28) JL 0.20 (0.10-0.30) JM 0.25(0.10-0.35) JH MP6120 VP15TF 250 (200-300) 0.18 (0.08-0.28) JL 0.20 (0.10-0.30) JM 0.25(0.10-0.35) JH FT Mild Steel <180HB MP6130 240 (190-290) 0.18 (0.08-0.28) JL 0.20 (0.10-0.30) JM 0.25(0.10-0.35) JH VP30RT 230 (180-280) 0.18 (0.08-0.28) JL 0.20 (0.10-0.30) JM 0.25(0.10-0.35) JH NX4545 180 (130-230) 0.15 (0.07-0.23) JL 0.18 (0.10-0.28) JM - - F7030 250 (200-300) 0.15 (0.07-0.23) JL 0.18 (0.10-0.28) JM 0.20(0.10-0.30) JH MP6120 VP15TF 220 (170-270) 0.15 (0.07-0.23) JL 0.18 (0.10-0.28) JM 0.20(0.10-0.30) JH FT 180 280HB MP6130 180 (150-230) 0.15 (0.07-0.23) JL 0.18 (0.10-0.28) JM 0.20(0.10-0.30) JH VP30RT 150 (120-180) 0.15 (0.07-0.23) JL 0.18 (0.10-0.28) JM 0.20(0.10-0.30) JH Carbon Steel NX4545 150 (120-180) 0.13 (0.06-0.20) JL 0.15(0.10-0.25) JM - - Alloy Steel F7030 180 (130-230) 0.13 (0.06-0.20) JL 0.15(0.10-0.25) JM 0.18(0.10-0.28) JH MP6120 VP15TF 140 (100-180) 0.13 (0.06-0.20) JL 0.15(0.10-0.25) JM 0.18(0.10-0.28) JH FT 280 350HB MP6130 120(90-150) 0.13 (0.06-0.20) JL 0.15(0.10-0.25) JM 0.18(0.10-0.28) JH VP30RT 100(80-160) 0.13 (0.06-0.20) JL 0.15(0.10-0.25) JM 0.18(0.10-0.28) JH NX4545 100(80-160) 0.10 (0.05-0.15) JL 0.13(0.10-0.20) JM - - M MP7130 VP15TF 220 (170-270) 0.15 (0.07-0.23) JL 0.18 (0.10-0.28) JM 0.20(0.10-0.30) JH FT Stainless Steel <270HB MP7140 VP30RT 200 (150-250) 0.15 (0.07-0.23) JL 0.18 (0.10-0.28) JM 0.20(0.10-0.30) JH NX4545 150 (120-180) 0.15 (0.07-0.23) JL 0.18 (0.10-0.28) JM - - U Cast Iron Tensile Strength MC5020 200 (150-250) - 0.20 (0.10-0.30) JM 0.25(0.10-0.35) JH FT 1 Ductile Cast Iron <450MPa VP15TF 180 (130-230) 0.18 (0.10-0.28) JL 0.20 (0.10-0.30) JM 0.25(0.10-0.35) JH FT Aluminium Alloy - HTi10 650 (300-1000) 0.15 (0.10-0.20) JP 0.20 (0.10-0.30) JP 0.30 (0.20-0.40) JP j Titanium Alloy MP9120 VP15TF 50 (40-60) 0.12 (0.05-0.20) JL 0.15 (0.05-0.20) JM 0.18(0.10-0.28) JH FT MP9130 45 (30-55) 0.10 (0.05-0.20) JL 0.15 (0.05-0.20) JM 0.18(0.10-0.28) JH FT Heat Resistant Alloy MP9120 VP15TF 40 (20-50) 0.12 (0.05-0.20) JL 0.15 (0.05-0.20) JM 0.18(0.10-0.28) JH FT i (Inconel etc.) MP9130 35 (15-45) 0.10 (0.05-0.20) JL 0.15 (0.05-0.20) JM 0.18(0.10-0.28) JH FT Hardened Steel 40 55HRC VP15TF 80 (60-100) 0.08(0.04-0.13) JL 0.10 (0.05-0.15) JM 0.12 (0.07-0.17) JH FT Revolution (min'1)=(1000 x Cutting Speed)-j-(3.14 x DC) Table Feed (mm/min)=Feed pe Tooth x Количество режущих зубьев Number of Teeth x Cutter Revolution INSTRUCTIONS FOR USING INSERTS Instructions for use of the JP breaker Instructions for use of wiper inserts The JP breaker has sharp cutting edges. Wear gloves when handling. When machining aluminium alloy, welding to the cutting edge tends to occur, often leading to insert failure. To prevent this, wet cutting is recommended. Wiper inserts for the ASX400 are single-cornered. 9 When installing the wiper insert, place the insert so that the small chamfer is located as shown. The peripheral cutting edge of the wiper insert is located back than general inserts. Beware of wear of the insert just behind the wiper insert. 9 When using wiper set the following standard conditions. Depth ofCut (ap)<0.5mm, Feed per Tooth (fz)<0.2mm/t. Mitsubishi Materials 1431 INDEXABLE MILLING
