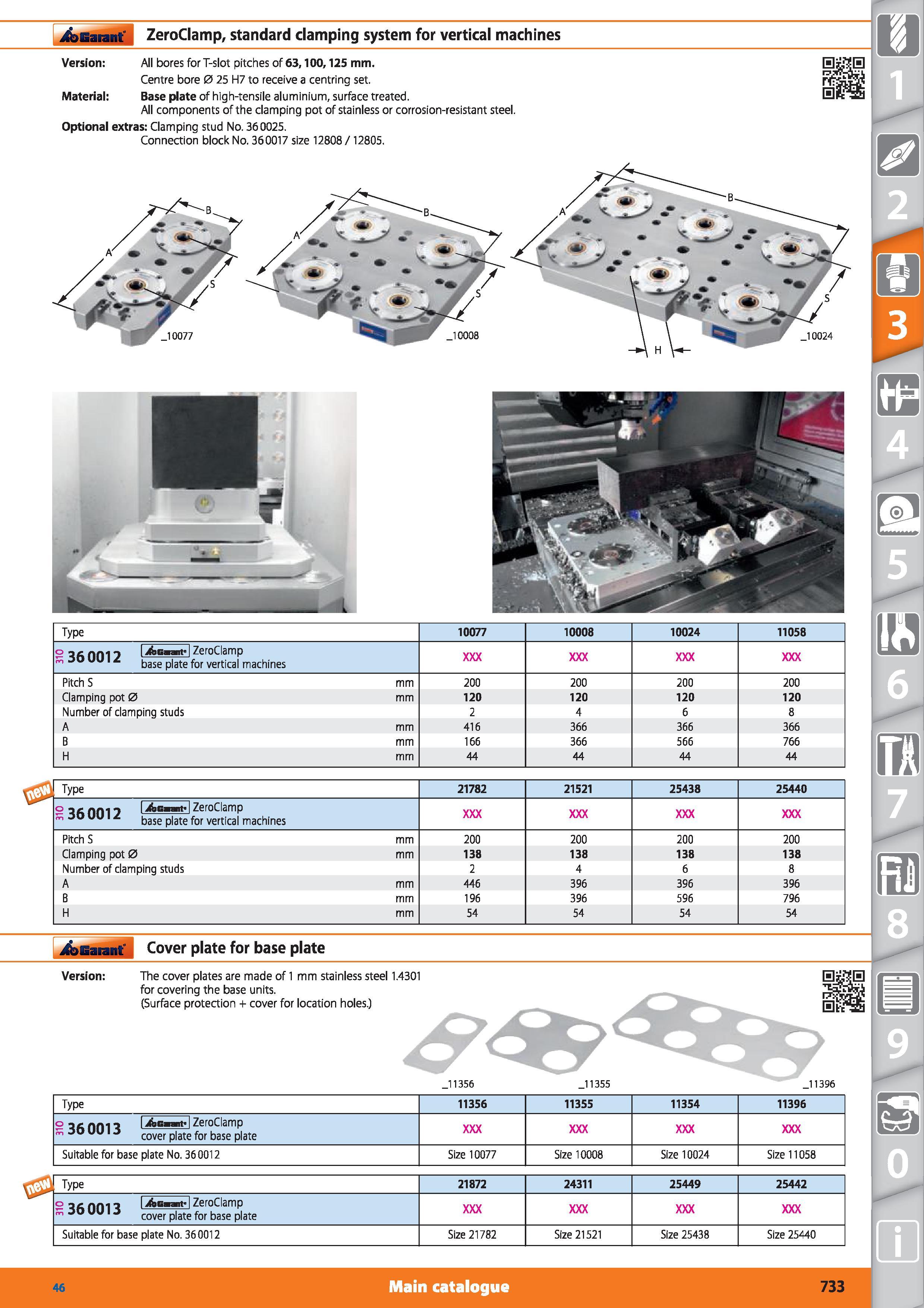

Garant ZeroClamp, standard damping system for vertical machines Version All bores for T-slot pitches of 63,100,125 mm. Centre bore 0 25 H7 to receive a centring set. Material Base plate of high-tensile aluminium, surface treated. All components of the clamping pot of stainless or corrosion-resistant steel. Optional extras Clamping stud No. 360025. Connection block No. 360017 size 12808 /12805. iijHi Type 10077 10008 10024 11058 o firii 1 iGaant” 1 ZeroClamp 30 uu z p ate fQr verticaj mach nes Pitch S mm 200 200 200 200 Clamping pot 0 mm 120 120 120 120 Number of clamping studs 2 4 6 8 A mm 416 366 366 366 B mm 166 366 566 766 H mm 44 44 44 44 3. Type 21782 21521 25438 25440 o (1017 iAicaant ZeroClamp base plate for vertical machines Pitch S mm 200 200 200 200 Clamping pot 0 mm 138 138 138 138 Number of damping studs 2 4 6 8 A mm 446 396 396 396 B mm 196 396 596 796 H mm 54 54 54 54 itibirauaurtf Cover plate for base plate Version The cover plates are made of 1 mm stainless steel 1.4301 for covering the base units. (Surface protection + cover for location holes.) J1356 J1355 J1396 Type 11356 11355 11354 11396 o nm I iftiGaant I ZeroClamp s cover plate for base plate Suitable for base plate No. 360012 Size 10077 Size 10008 Size 10024 Size 11058 Type 21872 24311 25449 25442 o nfll 1 1 iGHant 1 ZeroClamp m cover plate for base plate Suitable for base plate No. 360012 Size 21782 Size 21521 Size 25438 Size 25440 Main catalogue Hoffmann Group 46 733
