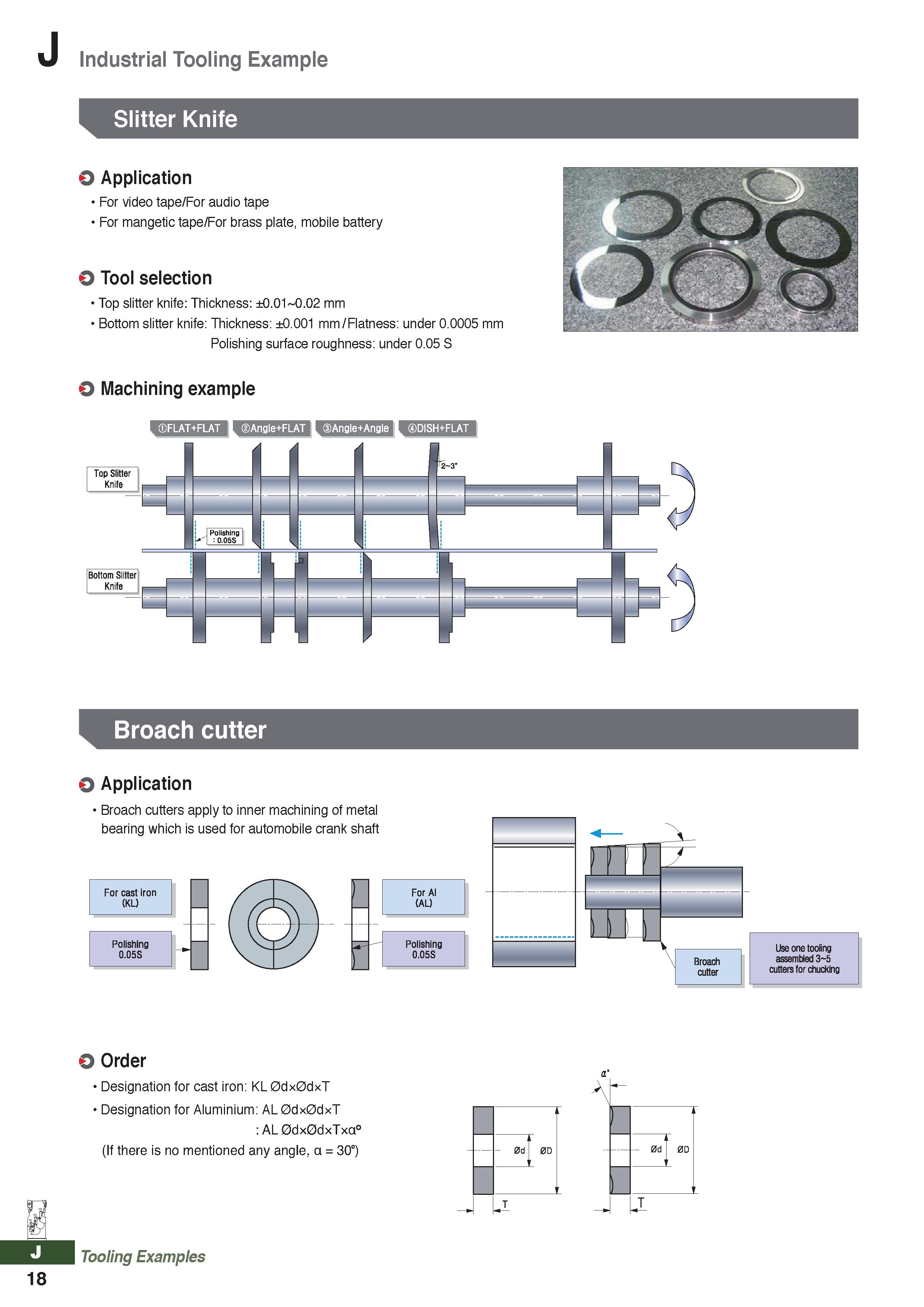

Industrial Tooling Example Slitter Knife O Application For video tape/For audio tape For mangetic tape/For brass plate, mobile battery O Tool selection Top slitter knife: Thickness: ±0.01 0.02 mm Bottom slitter knife: Thickness: ±0.001 mm / Flatness: under 0.0005 mm Polishing surface roughness: under 0.05 S O Machining example maw mammnu mmmmm I I I I I Top Slitter Knife i i I I I I i I P Bottom Slitter 1 1 1 1 1 Knife Broach cutter O Application Broach cutters apply to inner machining of metal bearing which is used for automobile crank shaft For cast iron (KL) Polishing 0.05S For Al (AL) Polishing 0.05S O Order Designation for cast iron: KL 0dx0dxT Designation for Aluminium: AL 0dx0dxT : AL0dx0dxTxa° (If there is no mentioned any angle, a = 30°) J Tooling Examples - 0d r 0D , 0D 18
