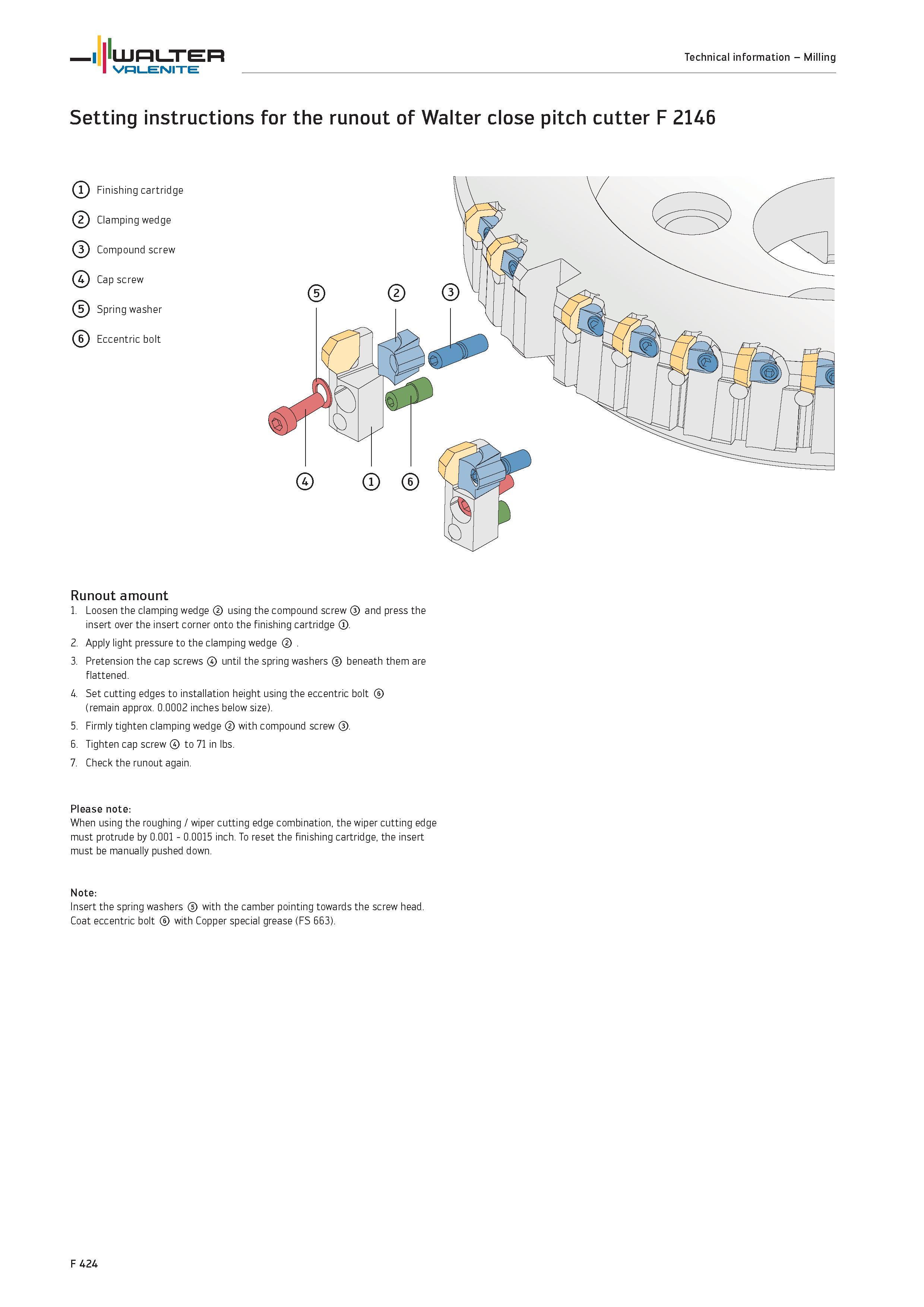

Setting instructions for the runout of Walter close pitch cutter F 2146 Finishing cartridge Clamping wedge Compound screw Cap screw Spring washer

Setting instructions for the runout of Walter close pitch cutter F 2146 Finishing cartridge Clamping wedge Compound screw Cap screw Spring washer Eccentric bolt Runout amount 1. Loosen the clamping wedge using the compound screw and press the insert over the insert corner onto the finishing cartridge 2. Apply light pressure to the clamping wedge 3. Pretension the cap screws until the spring washers beneath them are flattened. 4. Set cutting edges to installation height using the eccentric bolt (remain approx. 0.0002 inches below size). 5. Firmly tighten clamping wedge with compound screw 6. Tighten cap screw to 71 in lbs. 7. Check the runout again. Please note When using the roughing / wiper cutting edge combination, the wiper cutting edge must protrude by 0.001 0.0015 inch. To reset the finishing cartridge, the insert must be manually pushed down. Note Insert the spring washers with the camber pointing towards the screw head. Coat eccentric bolt with Copper special grease (FS 663). F 424 WALTER Valenite Technical information Milling
