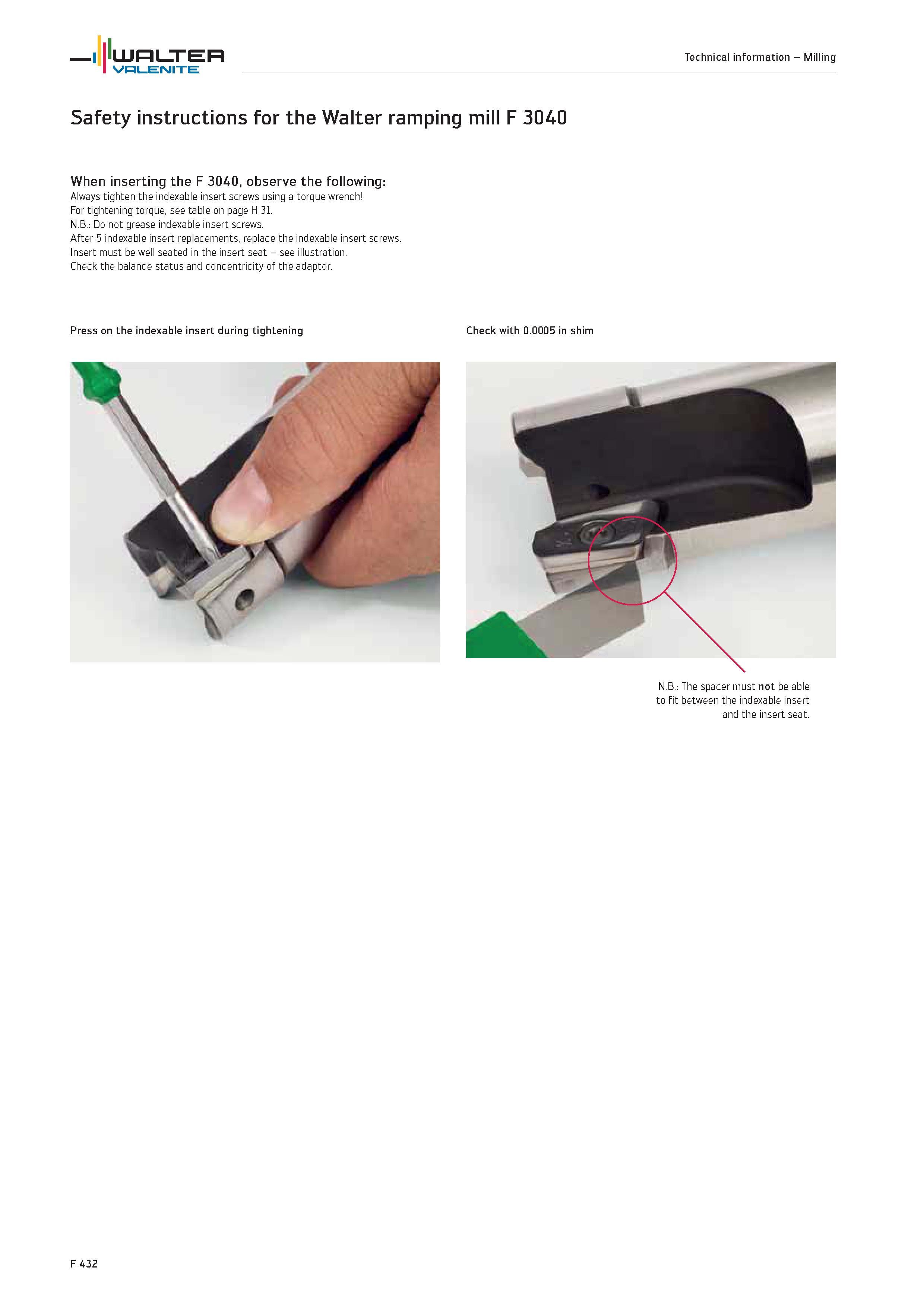

Safety instructions for the Walter ramping mill F 3040 When inserting the F 3040, observe the following Always tighten the indexable insert screws using a torque wrench For tightening torque, see table on page H 31. N.B. Do not grease indexable insert screws. After 5 indexable insert replacements, replace the indexable insert screws. Insert must be well seated in the insert seat see illustration. Check the balance status and concentricity of the adaptor. Press on the indexable insert during tightening Check with 0.0005 in shim N.B. The spacer must not be able to fit between the indexable insert and the insert seat. F 432 WALTER Technical information Milling Valenite
