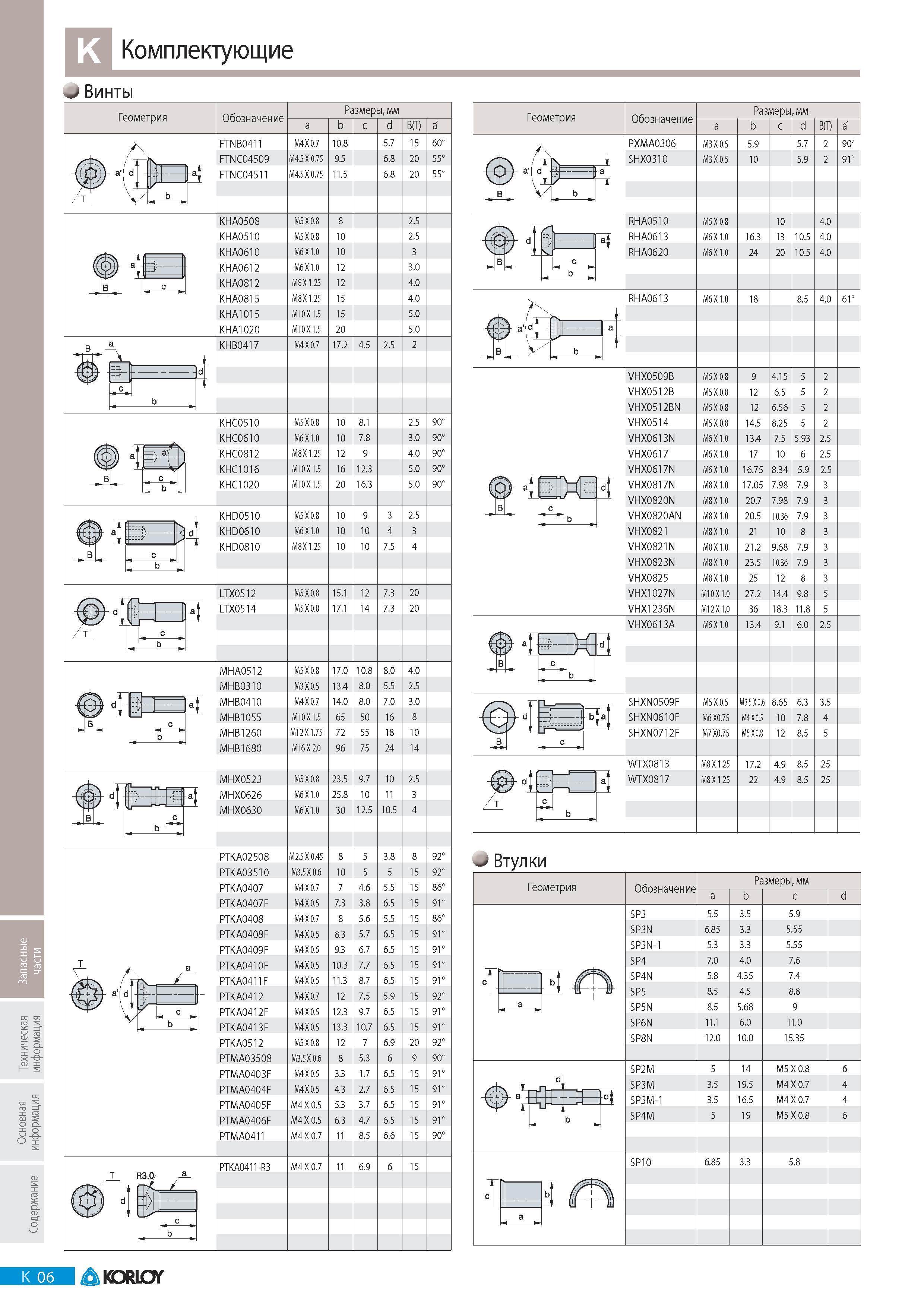

Комплектующие Korloy Винты Геометрия Обозначение Размеры мм a b c d B(T) a FTNB0411 M4 X 0 7 10 8 5 7 15 60 FTNC04509 M4 5 X 0 75 9 5 6 8 20 55 FTNC04511 M

Комплектующие Korloy Винты Геометрия Обозначение Размеры мм a b c d B(T) a FTNB0411 M4 X 0.7 10.8 5.7 15 60 FTNC04509 M4.5 X 0.75 9.5 6.8 20 55 FTNC04511 M4.5 X 0.75 11.5 6.8 20 55 KHA0508 M5 X 0.8 8 2.5 KHA0510 M5 X 0.8 10 2.5 KHA0610 M6 X 1.0 10 3 KHA0612 M6 X 1.0 12 3.0 KHA0812 M8 X 1.25 12 4.0 KHA0815 M8 X 1.25 15 4.0 KHA1015 M10 X 1.5 15 5.0 KHA1020 M10 X 1.5 20 5.0 KHB0417 M4 X 0.7 17.2 4.5 2.5 2 KHC0510 M5 X 0.8 10 8.1 2.5 90 KHC0610 M6 X 1.0 10 7.8 3.0 90 KHC0812 M8 X 1.25 12 9 4.0 90 KHC1016 M10 X 1.5 16 12.3 5.0 90 KHC1020 M10 X 1.5 20 16.3 5.0 90 KHD0510 M5 X 0.8 10 9 3 2.5 KHD0610 M6 X 1.0 10 10 4 3 KHD0810 M8 X 1.25 10 10 7.5 4 LTX0512 M5 X 0.8 15.1 12 7.3 20 LTX0514 M5 X 0.8 17.1 14 7.3 20 MHA0512 M5 X 0.8 17.0 10.8 8.0 4.0 MHB0310 M3 X 0.5 13.4 8.0 5.5 2.5 MHB0410 M4 X 0.7 14.0 8.0 7.0 3.0 MHB1055 M10 X 1.5 65 50 16 8 MHB1260 M12 X 1.75 72 55 18 10 MHB1680 M16 X 2.0 96 75 24 14 MHX0523 M5 X 0.8 23.5 9.7 10 2.5 MHX0626 M6 X 1.0 25.8 10 11 3 MHX0630 M6 X 1.0 30 12.5 10.5 4 PTKA02508 M2.5 X 0.45 8 5 3.8 8 92 PTKA03510 M3.5 X 0.6 10 5 5 15 92 PTKA0407 M4 X 0.7 7 4.6 5.5 15 86 PTKA0407F M4 X 0.5 7.3 3.8 6.5 15 91 PTKA0408 M4 X 0.7 8 5.6 5.5 15 86 PTKA0408F M4 X 0.5 8.3 5.7 6.5 15 91 PTKA0409F M4 X 0.5 9.3 6.7 6.5 15 91 PTKA0410F M4 X 0.5 10.3 7.7 6.5 15 91 PTKA0411F M4 X 0.5 11.3 8.7 6.5 15 91 PTKA0412 M4 X 0.7 12 7.5 5.9 15 92 PTKA0412F M4 X 0.5 12.3 9.7 6.5 15 91 PTKA0413F M4 X 0.5 13.3 10.7 6.5 15 91 PTKA0512 M5 X 0.8 12 7 6.9 20 92 PTMA03508 M3.5 X 0.6 8 5.3 6 9 90 PTMA0403F M4 X 0.5 3.3 1.7 6.5 15 91 PTMA0404F M4 X 0.5 4.3 2.7 6.5 15 91 PTMA0405F M4 X 0.5 5.3 3.7 6.5 15 91 PTMA0406F M4 X 0.5 6.3 4.7 6.5 15 91 PTMA0411 M4 X 0.7 11 8.5 6.6 15 90 PTKA0411-R3 M4 X 0.7 11 6.9 6 15 Геометрия Шж -sJ Обозначение Размеры мм a b c d B(T) a' PXMA0306 M3 X 0.5 5.9 5.7 2 90 SHX0310 M3 X 0.5 10 5.9 2 91 RHA0510 M5 X 0.8 10 4.0 RHA0613 M6 X 1.0 16.3 13 10.5 4.0 RHA0620 M6 X 1.0 24 20 10.5 4.0 RHA0613 M6 X 1.0 18 8.5 4.0 61 VHX0509B M5 X 0.8 9 4.15 5 2 VHX0512B M5 X 0.8 12 6.5 5 2 VHX0512BN M5 X 0.8 12 6.56 5 2 VHX0514 M5 X 0.8 14.5 8.25 5 2 VHX0613N M6 X 1.0 13.4 7.5 5.93 2.5 VHX0617 M6 X 1.0 17 10 6 2.5 VHX0617N M6 X 1.0 16.75 8.34 5.9 2.5 VHX0817N M8 X 1.0 17.05 7.98 7.9 3 VHX0820N M8 X 1.0 20.7 7.98 7.9 3 VHX0820AN M8 X 1.0 20.5 10.36 7.9 3 VHX0821 M8 X 1.0 21 10 8 3 VHX0821N M8 X 1.0 21.2 9.68 7.9 3 VHX0823N M8 X 1.0 23.5 10.36 7.9 3 VHX0825 M8 X 1.0 25 12 8 3 VHX1027N M10 X 1.0 27.2 14.4 9.8 5 VHX1236N M12 X 1.0 36 18.3 11.8 5 VHX0613A M6 X 1.0 13.4 9.1 6.0 2.5 SHXN0509F M5 X 0.5 M3.5 X 06 8.65 6.3 3.5 SHXN0610F M6 X0.75 M4 0.5 10 7.8 4 SHXN0712F M7 X0.75 M5 0.8 12 8.5 5 WTX0813 M8 X 1.25 17.2 4.9 8.5 25 WTX0817 M8 X 1.25 22 4.9 8.5 25 Втулки Геометрия твз сП К Обозначение Размеры мм a b c d SP3 5.5 3.5 5.9 SP3N 6.85 3.3 5.55 SP3N-1 5.3 3.3 5.55 SP4 7.0 4.0 7.6 SP4N 5.8 4.35 7.4 SP5 8.5 4.5 8.8 SP5N 8.5 5.68 9 SP6N 11.1 6.0 11.0 SP8N 12.0 10.0 15.35 SP2M 5 14 M5 X 0.8 6 SP3M 3.5 19.5 M4 X 0.7 4 SP3M-1 3.5 16.5 M4 X 0.7 4 SP4M 5 19 M5 X 0.8 6 SP10 6.85 3.3 5.8 K 06 KORLOY
