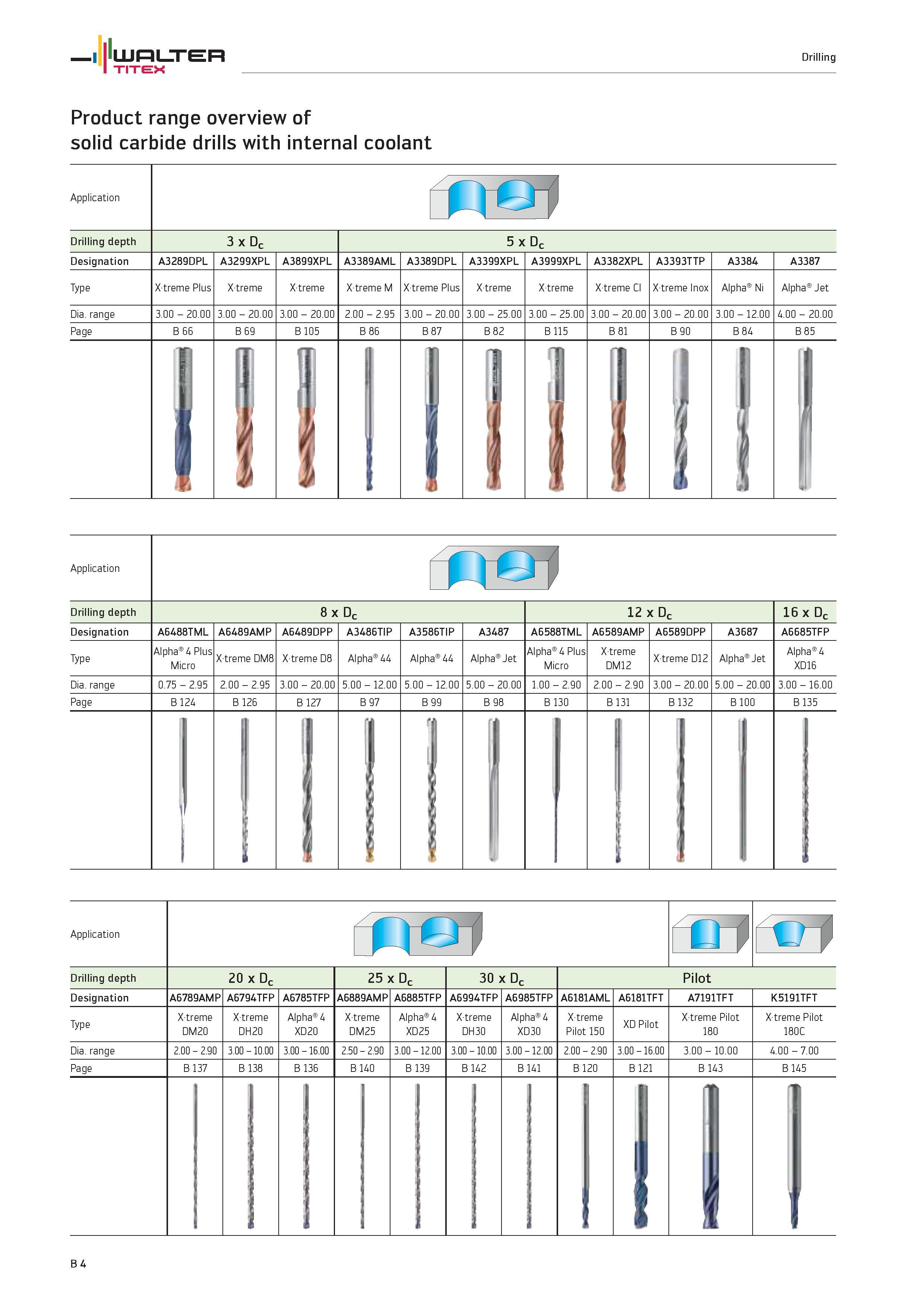

Product range overview of solid carbide drills WALTER TITEX with internal coolant Application 11 Drilling depth 3 x Dc 5 x Dc Designation A3289DPL A3299XPL A3899XPL A3389AML A3389DPL A3399XPL A3999XPL A3382XPL A3393TTP A3384 A3387 Type Xtreme Plus Xtreme M Xtreme Plus Xtreme CI Xtreme Inox Alpha Ni Alpha Jet Dia. range 3.00 20.00 3.00 20.00 3.00 20.00 2.00 2.95 3.00 20.00 3.00 25.00 3.00 25.00 3.00 20.00 3.00 20.00 3.00 12.00 4.00 20.00 Page B 66 B 69 B 105 B 86 B 87 B 82 B 115 B 81 B 90 B 84 B 85 Application I I'l Drilling depth 8 x Dc 12 x Dc 16 x Dc Designation A6488TML A6489AMP A6489DPP A3486TIP A3586TIP A3487 A6588TML A6589AMP A6589DPP A3687 A6685TFP Type Alpha 4 Plus Micro Xtreme DM8 Xtreme D8 Alpha 44 Alpha 44 Alpha Jet Alpha 4 Plus Micro Xtreme DM12 Xtreme D12 Alpha Jet Alpha 4 XD16 Dia. range 0.75 2.95 2.00 2.95 3.00 20.00 5.00 12.00 5.00 12.00 5.00 20.00 1.00 2.90 2.00 2.90 3.00 20.00 5.00 20.00 3.00 16.00 Page B 124 B 126 B 127 B 97 B 99 B 98 B 130 B 131 B 132 B 100 B 135 Application rP rC Drilling depth 20 x Dc 25 x Dc 30 x Dc Pilot Designation A6789AMP A6794TFP A6785TFP A6889AMP A6885TFP A6994TFP A6985TFP A6181AML A6181TFT A7191TFT K5191TFT Type Xtreme DM20 Xtreme DH20 Alpha 4 XD20 Xtreme DM25 Alpha 4 XD25 Xtreme DH30 Alpha 4 XD30 Xtreme Pilot 150 XD Pilot Xtreme Pilot 180 Xtreme Pilot 180C Dia. range 2.00 2.90 3.00 10.00 3.00 16.00 2.50 2.90 3.00 12.00 3.00 10.00 3.00 12.00 2.00 2.90 3.00 16.00 3.00 10.00 4.00 7.00 Page B 137 B 138 B 136 B 140 B 139 B 142 B 141 B 120 B 121 B 143 B 145 B 4 Drilling
