1802 Каталог MITSUBISHI 2020 Режущий инструмент Фрезы Резцы Сверла Пластины Стр.R050

Каталог MITSUBISHI 2020 Режущий инструмент для станков Стр. R050 1802 Lab2u

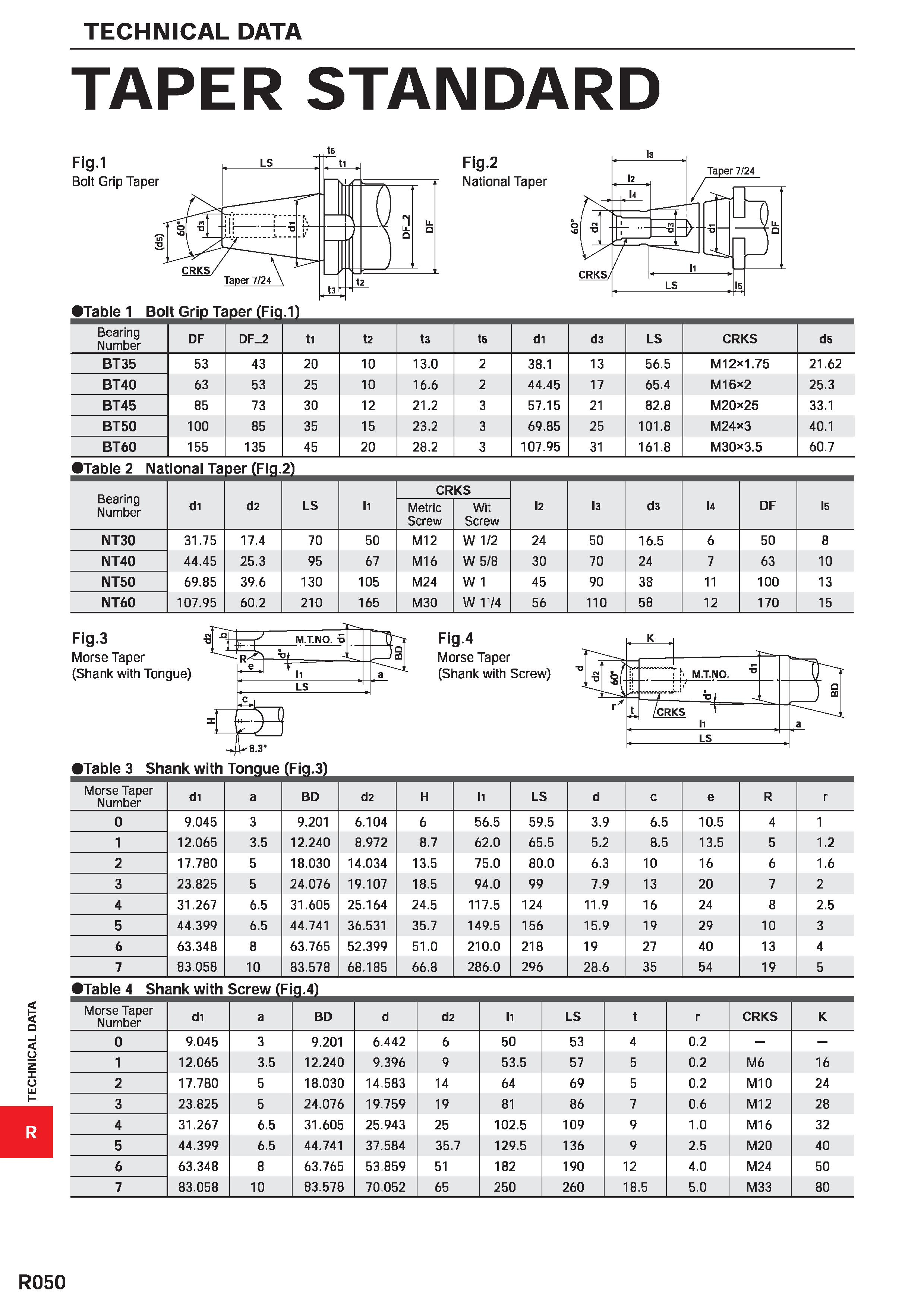

TECHNICAL DATA TAPER STANDARD Fig.2 National Taper Bearing Number DF DF 2 ti t2 t3 t5 di d3 LS CRKS d5 BT35 53 43 20 10 13.0 2 38.1 13 56.5 M12x1.75 21.62 BT40 63 53 25 10 16.6 2 44.45 17 65.4 M16x2 25.3 BT45 85 73 30 12 21.2 3 57.15 21 82.8 M20 25 33.1 BT50 100 85 35 15 23.2 3 69.85 25 101.8 M24x3 40.1 BT60 155 135 45 20 28.2 3 107.95 31 161.8 M30 3.5 60.7 Table 2 Nat ional Ta per (Fia. 2 Bearing Number CRKS di d2 LS h Metric Screw Wit Screw l2 13 d3 14 DF Is NT30 31.75 17.4 70 50 M12 W 1/2 24 50 16.5 6 50 8 NT40 44.45 25.3 95 67 M16 W 5/8 30 70 24 7 63 10 NT50 69.85 39.6 130 105 M24 W 1 45 90 38 11 100 13 NT60 107.95 60.2 210 165 M30 W 1V4 56 110 58 12 170 15 Fig.3 Morse Taper (Shank with Tongue) Fig.4 Morse Taper (Shank with Screw) Morse Taper Number di a BD d2 H h LS d c e R r 0 9.045 3 9.201 6.104 6 56.5 59.5 3.9 6.5 10.5 4 1 1 12.065 3.5 12.240 8.972 8.7 62.0 65.5 5.2 8.5 13.5 5 1.2 2 17.780 5 18.030 14.034 13.5 75.0 80.0 6.3 10 16 6 1.6 3 23.825 5 24.076 19.107 18.5 94.0 99 7.9 13 20 7 2 4 31.267 6.5 31.605 25.164 24.5 117.5 124 11.9 16 24 8 2.5 5 44.399 6.5 44.741 36.531 35.7 149.5 156 15.9 19 29 10 3 6 63.348 8 63.765 52.399 51.0 210.0 218 19 27 40 13 4 7 83.058 10 83.578 68.185 66.8 286.0 296 28.6 35 54 19 5 Morse Taper Number di a BD d d2 h LS t r CRKS K 0 9.045 3 9.201 6.442 6 50 53 4 0.2 - - 1 12.065 3.5 12.240 9.396 9 53.5 57 5 0.2 M6 16 2 17.780 5 18.030 14.583 14 64 69 5 0.2 M10 24 3 23.825 5 24.076 19.759 19 81 86 7 0.6 M12 28 4 31.267 6.5 31.605 25.943 25 102.5 109 9 1.0 M16 32 5 44.399 6.5 44.741 37.584 35.7 129.5 136 9 2.5 M20 40 6 63.348 8 63.765 53.859 51 182 190 12 4.0 M24 50 7 83.058 10 83.578 70.052 65 250 260 18.5 5.0 M33 80 Fig.1 Bolt Grip Taper R050
