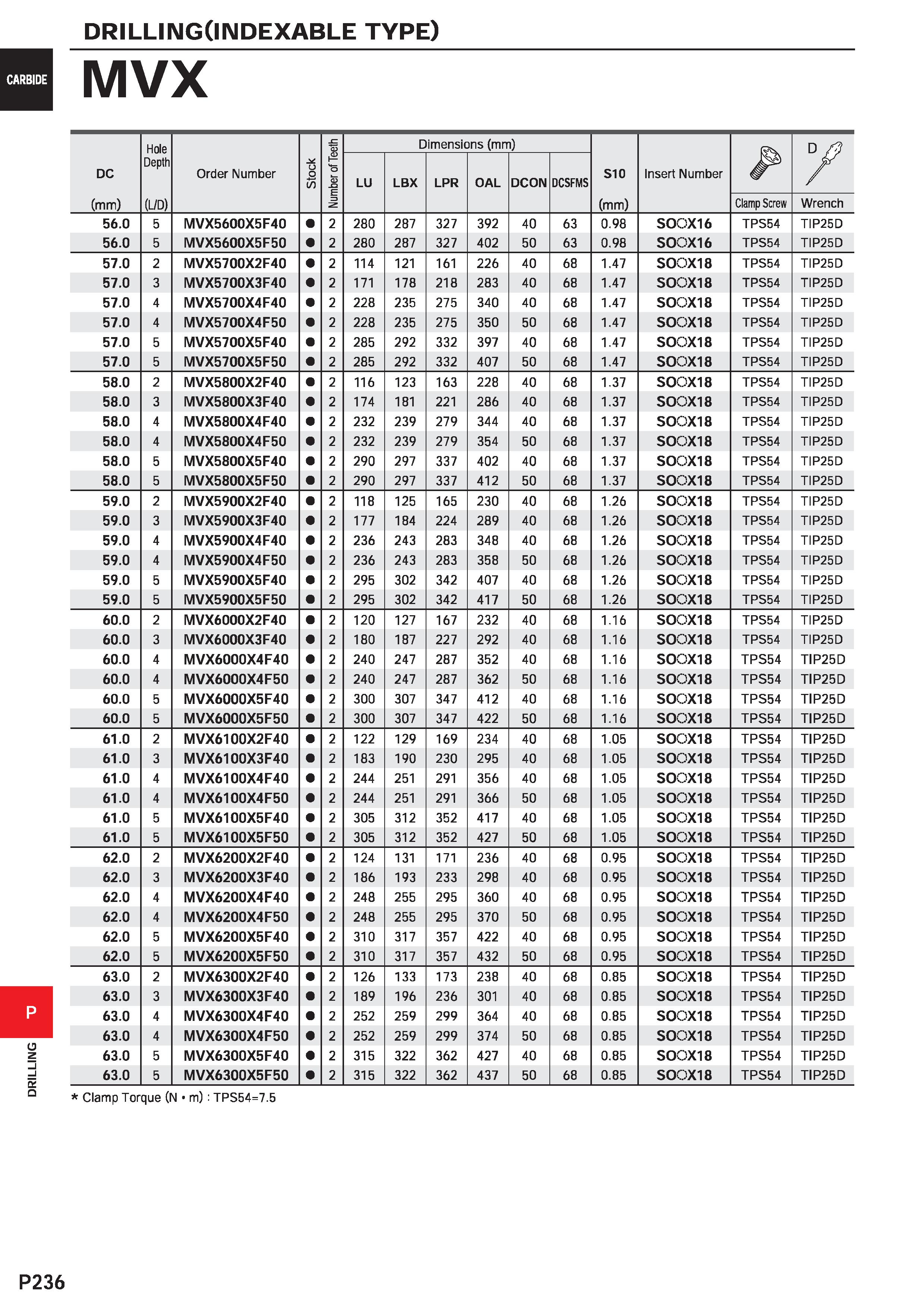

DRILLINGOlMDEXABLE type) MVX Hole OJ Dimensions (mm) 7 DC Depth Order Number Stock £ o L> Q £ LU LBX LPR OAL DCON DCSFMS S10 Insert Number (mm) (L/D) =3 (mm) Clamp Screw Wrench 56.0 5 MVX5600X5F40 2 280 287 327 392 40 63 0.98 SOGX16 TPS54 TIP25D 56.0 5 MVX5600X5F50 2 280 287 327 402 50 63 0.98 SOOX16 TPS54 TIP25D 57.0 2 MVX5700X2F40 2 114 121 161 226 40 68 1.47 SOOX18 TPS54 TIP25D 57.0 3 MVX5700X3F40 2 171 178 218 283 40 68 1.47 SOGX18 TPS54 TIP25D 57.0 4 MVX5700X4F40 2 228 235 275 340 40 68 1.47 SOOX18 TPS54 TIP25D 57.0 4 MVX5700X4F50 2 228 235 275 350 50 68 1.47 SOOX18 TPS54 TIP25D 57.0 5 MVX5700X5F40 2 285 292 332 397 40 68 1.47 SOOX18 TPS54 TIP25D 57.0 5 MVX5700X5F50 2 285 292 332 407 50 68 1.47 SOOX18 TPS54 TIP25D 58.0 2 MVX5800X2F40 2 116 123 163 228 40 68 1.37 SOOX18 TPS54 TIP25D 58.0 3 MVX5800X3F40 2 174 181 221 286 40 68 1.37 SOGX18 TPS54 TIP25D 58.0 4 MVX5800X4F40 2 232 239 279 344 40 68 1.37 SOQX18 TPS54 TIP25D 58.0 4 MVX5800X4F50 2 232 239 279 354 50 68 1.37 SOOX18 TPS54 TIP25D 58.0 5 MVX5800X5F40 2 290 297 337 402 40 68 1.37 SOOX18 TPS54 TIP25D 58.0 5 MVX5800X5F50 2 290 297 337 412 50 68 1.37 SOOX18 TPS54 TIP25D 59.0 2 MVX5900X2F40 2 118 125 165 230 40 68 1.26 SOGX18 TPS54 TIP25D 59.0 3 MVX5900X3F40 2 177 184 224 289 40 68 1.26 SOOX18 TPS54 TIP25D 59.0 4 MVX5900X4F40 2 236 243 283 348 40 68 1.26 SOGX18 TPS54 TIP25D 59.0 4 MVX5900X4F50 2 236 243 283 358 50 68 1.26 SOOX18 TPS54 TIP25D 59.0 5 MVX5900X5F40 2 295 302 342 407 40 68 1.26 SOOX18 TPS54 TIP25D 59.0 5 MVX5900X5F50 2 295 302 342 417 50 68 1.26 SOOX18 TPS54 TIP25D 60.0 2 MVX6000X2F40 2 120 127 167 232 40 68 1.16 SOOX18 TPS54 TIP25D 60.0 3 MVX6000X3F40 2 180 187 227 292 40 68 1.16 SOOX18 TPS54 TIP25D 60.0 4 M VX6000X4F40 2 240 247 287 352 40 68 1.16 SOOX18 TPS54 TIP25D 60.0 4 MVX6000X4F50 2 240 247 287 362 50 68 1.16 SOGX18 TPS54 TIP25D 60.0 5 M VX6000X5F40 2 300 307 347 412 40 68 1.16 SOOX18 TPS54 TIP25D 60.0 5 MVX6000X5F50 2 300 307 347 422 50 68 1.16 SOOX18 TPS54 TIP25D 61.0 2 MVX6100X2F40 2 122 129 169 234 40 68 1.05 SOOX18 TPS54 TIP25D 61.0 3 MVX6100X3F40 2 183 190 230 295 40 68 1.05 SOOX18 TPS54 TIP25D 61.0 4 MVX6100X4F40 2 244 251 291 356 40 68 1.05 SOOX18 TPS54 TIP25D 61.0 4 MVX6100X4F50 2 244 251 291 366 50 68 1.05 SOGX18 TPS54 TIP25D 61.0 5 MVX6100X5F40 2 305 312 352 417 40 68 1.05 SOOX18 TPS54 TIP25D 61.0 5 MVX6100X5F50 2 305 312 352 427 50 68 1.05 SOOX18 TPS54 TIP25D 62.0 2 M VX6200X2F40 2 124 131 171 236 40 68 0.95 SOOX18 TPS54 TIP25D 62.0 3 M VX6200X3F40 2 186 193 233 298 40 68 0.95 SOOX18 TPS54 TIP25D 62.0 4 M VX6200X4F40 2 248 255 295 360 40 68 0.95 SOOX18 TPS54 TIP25D 62.0 4 MVX6200X4F50 2 248 255 295 370 50 68 0.95 SOOX18 TPS54 TIP25D 62.0 5 M VX6200X5F40 2 310 317 357 422 40 68 0.95 SOGX18 TPS54 TIP25D 62.0 5 MVX6200X5F50 2 310 317 357 432 50 68 0.95 SOOX18 TPS54 TIP25D 63.0 2 M VX6300X2F40 2 126 133 173 238 40 68 0.85 SOOX18 TPS54 TIP25D 63.0 3 M VX6300X3F40 2 189 196 236 301 40 68 0.85 SOOX18 TPS54 TIP25D 63.0 4 M VX6300X4F40 2 252 259 299 364 40 68 0.85 SOOX18 TPS54 TIP25D 63.0 4 MVX6300X4F50 2 252 259 299 374 50 68 0.85 SOOX18 TPS54 TIP25D 63.0 5 M VX6300X5F40 2 315 322 362 427 40 68 0.85 SOGX18 TPS54 TIP25D 63.0 5 MVX6300X5F50 2 315 322 362 437 50 68 0.85 SOOX18 TPS54 TIP25D Clamp Torque (N m) : TPS54=7.5
