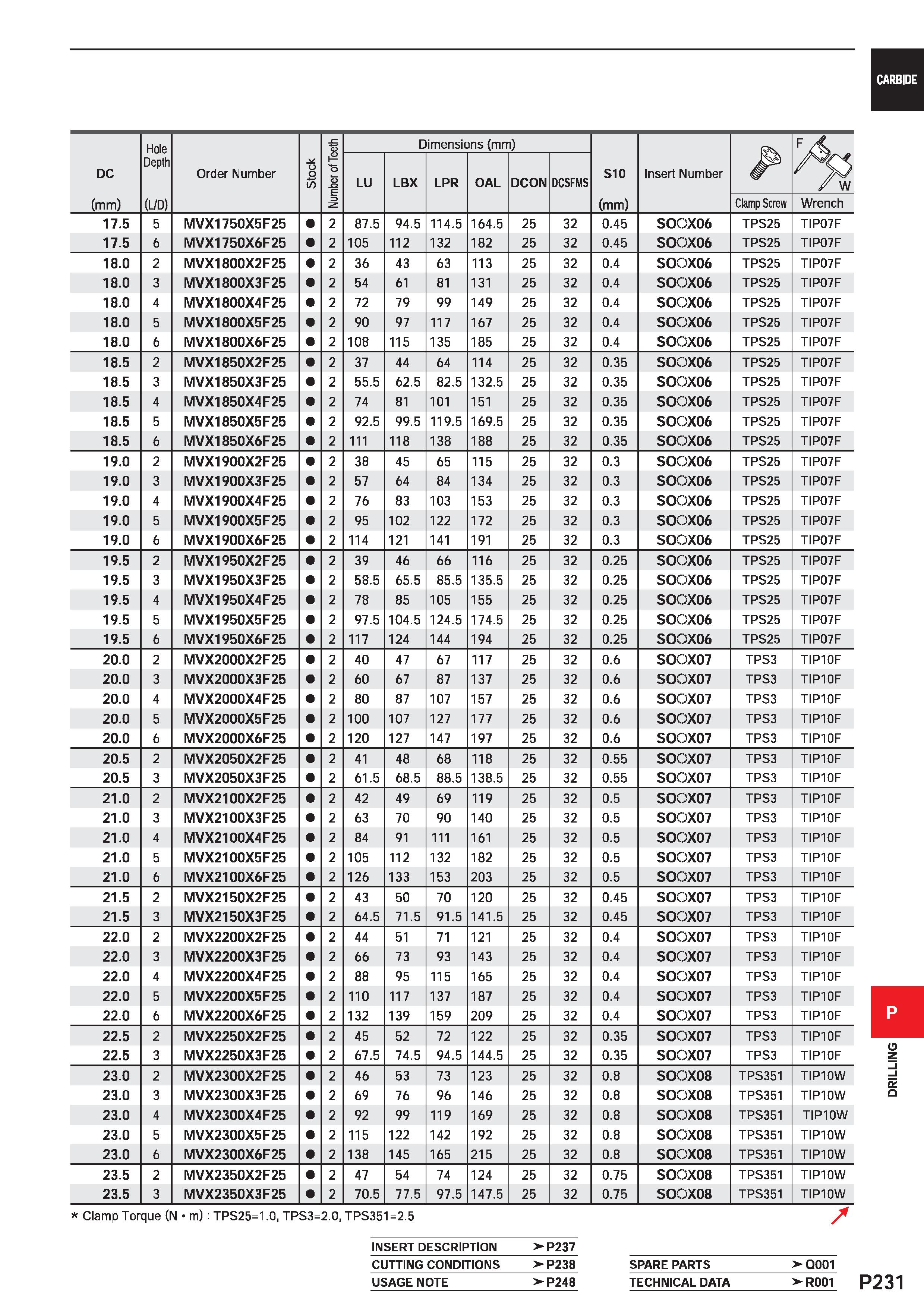

Hole OJ Dimensions (mm) F A DC Depth Order Number Stock o L> Q LU LBX LPR OAL DCON DCSFMS S10 Insert Number /w (mm) (LTD) =3 (mm) Clamp Screw Wrench 17.5 5 MVX1750X5F25 2 87.5 94.5 114.5 164.5 25 32 0.45 SOQXO6 TPS25 TIP07F 17.5 6 MVX1750X6F25 2 105 112 132 182 25 32 0.45 SOQXO6 TPS25 TIP07F 18.0 2 MVX1800X2F25 2 36 43 63 113 25 32 0.4 SOQXO6 TPS25 TIP07F 18.0 3 MVX1800X3F 25 2 54 61 81 131 25 32 0.4 SOQXO6 TPS25 TIP07F 18.0 4 MVX1800X4F 25 2 72 79 99 149 25 32 0.4 SOQXO6 TPS25 TIP07F 18.0 5 MVX1800X5F 25 2 90 97 117 167 25 32 0.4 SOQXO6 TPS25 TIP07F 18.0 6 MVX1800X6F25 2 108 115 135 185 25 32 0.4 SOQXO6 TPS25 TIP07F 18.5 2 MVX1850X2F25 2 37 44 64 114 25 32 0.35 SOQXO6 TPS25 TIP07F 18.5 3 MVX1850X3F25 2 55.5 62.5 82.5 132.5 25 32 0.35 SOQXO6 TPS25 TIP07F 18.5 4 MVX1850X4F25 2 74 81 101 151 25 32 0.35 SOQXO6 TPS25 TIP07F 18.5 5 MVX1850X5F25 2 92.5 99.5 119.5 169.5 25 32 0.35 SOQXO6 TPS25 TIP07F 18.5 6 MVX1850X6F25 2 111 118 138 188 25 32 0.35 SOQXO6 TPS25 TIP07F 19.0 2 MVX1900X2F25 2 38 45 65 115 25 32 0.3 SOQXO6 TPS25 TIP07F 19.0 3 MVX1900X3F 25 2 57 64 84 134 25 32 0.3 SOQXO6 TPS25 TIP07F 19.0 4 MVX1900X4F 25 2 76 83 103 153 25 32 0.3 SOQXO6 TPS25 TIP07F 19.0 5 MVX1900X5F 25 2 95 102 122 172 25 32 0.3 SOQXO6 TPS25 TIP07F 19.0 6 MVX1900X6F25 2 114 121 141 191 25 32 0.3 SOOXO6 TPS25 TIP07F 19.5 2 MVX1950X2F25 2 39 46 66 116 25 32 0.25 SOQXO6 TPS25 TIP07F 19.5 3 MVX1950X3F 25 2 58.5 65.5 85.5 135.5 25 32 0.25 SOQXO6 TPS25 TIP07F 19.5 4 MVX1950X4F 25 2 78 85 105 155 25 32 0.25 SOQXO6 TPS25 TIP07F 19.5 5 MVX1950X5F 25 2 97.5 104.5 124.5 174.5 25 32 0.25 SOQXO6 TPS25 TIP07F 19.5 6 MVX1950X6F25 2 117 124 144 194 25 32 0.25 SOOXO6 TPS25 TIP07F 20.0 2 MVX2000X2F25 2 40 47 67 117 25 32 0.6 SOQX07 TPS3 TIP10F 20.0 3 MVX2000X3F25 2 60 67 87 137 25 32 0.6 SOQX07 TPS3 TIP10F 20.0 4 MVX2000X4F25 2 80 87 107 157 25 32 0.6 SOQX07 TPS3 TIP10F 20.0 5 MVX2000X5F25 2 100 107 127 177 25 32 0.6 SOQX07 TPS3 TIP10F 20.0 6 MVX2000X6F25 2 120 127 147 197 25 32 0.6 SOQX07 TPS3 TIP10F 20.5 2 MVX2050X2F25 2 41 48 68 118 25 32 0.55 SOQX07 TPS3 TIP10F 20.5 3 MVX2050X3F25 2 61.5 68.5 88.5 138.5 25 32 0.55 SOQX07 TPS3 TIP10F 21.0 2 MVX2100X2F25 2 42 49 69 119 25 32 0.5 SOQX07 TPS3 TIP10F 21.0 3 MVX2100X3F25 2 63 70 90 140 25 32 0.5 SOQX07 TPS3 TIP10F 21.0 4 MVX2100X4F25 2 84 91 111 161 25 32 0.5 SOQX07 TPS3 TIP10F 21.0 5 MVX2100X5F25 2 105 112 132 182 25 32 0.5 SOQX07 TPS3 TIP10F 21.0 6 MVX2100X6F25 2 126 133 153 203 25 32 0.5 SOQX07 TPS3 TIP10F 21.5 2 MVX2150X2F25 2 43 50 70 120 25 32 0.45 SOQX07 TPS3 TIP10F 21.5 3 MVX2150X3F25 2 64.5 71.5 91.5 141.5 25 32 0.45 SOQX07 TPS3 TIP10F 22.0 2 MVX2200X2F25 2 44 51 71 121 25 32 0.4 SOGX07 TPS3 TIP10F 22.0 3 MVX2200X3F25 2 66 73 93 143 25 32 0.4 SOQX07 TPS3 TIP10F 22.0 4 MVX2200X4F25 2 88 95 115 165 25 32 0.4 SOQX07 TPS3 TIP10F 22.0 5 MVX2200X5F25 2 110 117 137 187 25 32 0.4 SOQX07 TPS3 TIP10F 22.0 6 MVX2200X6F25 2 132 139 159 209 25 32 0.4 SOQX07 TPS3 TIP10F 22.5 2 MVX2250X2F25 2 45 52 72 122 25 32 0.35 SOQX07 TPS3 TIP10F 22.5 3 MVX2250X3F25 2 67.5 74.5 94.5 144.5 25 32 0.35 SOQXQ7 TPS3 TIP10F 23.0 2 MVX2300X2F25 2 46 53 73 123 25 32 0.8 CO X o 00 TPS351 TIP10W 23.0 3 MVX2300X3F25 2 69 76 96 146 25 32 0.8 SOQXO8 TPS351 TIP10W 23.0 4 MVX2300X4F25 2 92 99 119 169 25 32 0.8 SOQXO8 TPS351 TIP10W 23.0 5 MVX2300X5F25 2 115 122 142 192 25 32 0.8 SOQXO8 TPS351 TIP10W 23.0 6 MVX2300X6F25 2 138 145 165 215 25 32 0.8 SOQXO8 TPS351 TIP10W 23.5 2 MVX2350X2F25 2 47 54 74 124 25 32 0.75 SOQXO8 TPS351 TIP10W 23.5 3 MVX2350X3F25 2 70.5 77.5 97.5 147.5 25 32 0.75 SOQXO8 TPS351 TIP10W Clamp Torque (N m) : TPS25=1.0, TPS3=2.0, TPS351 =2.5 INSERT DESCRIPTION >P237 CUTTING CONDITIONS >-P238 USAGE NOTE >-P248 SPARE PARTS TECHNICAL DATA > Q001 > R001
