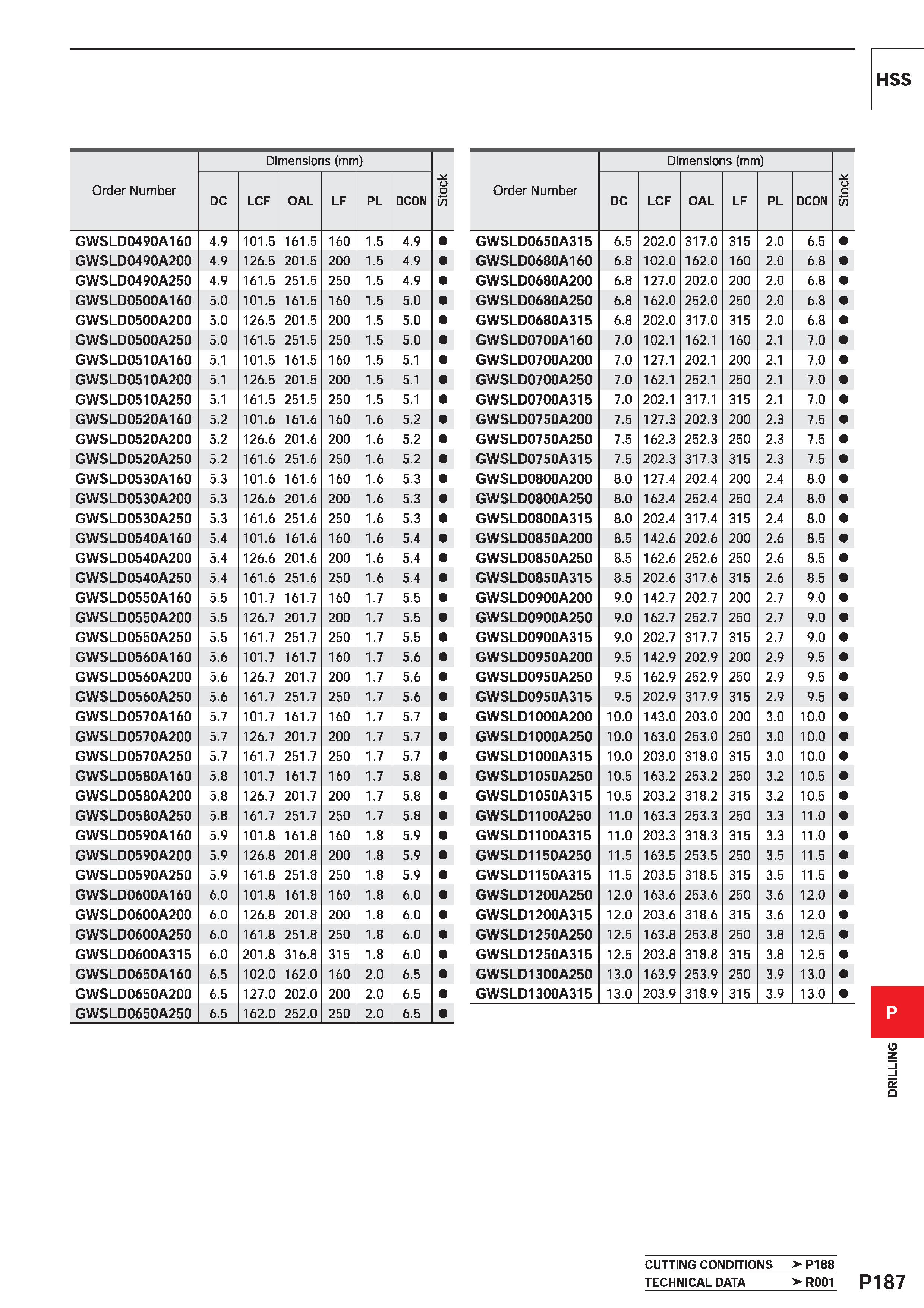

Order Number Dimensions (mm) i/5 DC LCF OAL LF PL DCON GWSLD0490A160 4.9 101.5 161.5 160 1.5 4.9 G WS LD0490A200 4.9 126.5 201.5 200 1.5 4.9 GWSLD0490A250 4.9 161.5 251.5 250 1.5 4.9 GWSLD0500A160 5.0 101.5 161.5 160 1.5 5.0 G WS LD0500A200 5.0 126.5 201.5 200 1.5 5.0 GWSLD0500A250 5.0 161.5 251.5 250 1.5 5.0 GWSLD0510A160 5.1 101.5 161.5 160 1.5 5.1 GWSLD0510A200 5.1 126.5 201.5 200 1.5 5.1 GWSLD0510A250 5.1 161.5 251.5 250 1.5 5.1 GWSLD0520A160 5.2 101.6 161.6 160 1.6 5.2 G WS LD0520A200 5.2 126.6 201.6 200 1.6 5.2 GWSLD0520A250 5.2 161.6 251.6 250 1.6 5.2 GWSLD0530A160 5.3 101.6 161.6 160 1.6 5.3 G WS LD0530A200 5.3 126.6 201.6 200 1.6 5.3 GWSLD0530A250 5.3 161.6 251.6 250 1.6 5.3 GWSLD0540A160 5.4 101.6 161.6 160 1.6 5.4 G WS LD0540A200 5.4 126.6 201.6 200 1.6 5.4 GWSLD0540A250 5.4 161.6 251.6 250 1.6 5.4 GWSLD0550A160 5.5 101.7 161.7 160 1.7 5.5 GWSLD0550A200 5.5 126.7 201.7 200 1.7 5.5 GWSLD0550A250 5.5 161.7 251.7 250 1.7 5.5 GWSLD0560A160 5.6 101.7 161.7 160 1.7 5.6 G WS LD0560A200 5.6 126.7 201.7 200 1.7 5.6 GWSLD0560A250 5.6 161.7 251.7 250 1.7 5.6 GWSLD0570A160 5.7 101.7 161.7 160 1.7 5.7 GWSLD0570A200 5.7 126.7 201.7 200 1.7 5.7 GWSLD0570A250 5.7 161.7 251.7 250 1.7 5.7 GWSLD0580A160 5.8 101.7 161.7 160 1.7 5.8 GWSLD0580A200 5.8 126.7 201.7 200 1.7 5.8 GWSLD0580A250 5.8 161.7 251.7 250 1.7 5.8 GWSLD0590A160 5.9 101.8 161.8 160 1.8 5.9 G WS LD0590A200 5.9 126.8 201.8 200 1.8 5.9 GWSLD0590A250 5.9 161.8 251.8 250 1.8 5.9 GWSLD0600A160 6.0 101.8 161.8 160 1.8 6.0 GWSLD0600A200 6.0 126.8 201.8 200 1.8 6.0 GWSLD0600A250 6.0 161.8 251.8 250 1.8 6.0 GWSLD0600A315 6.0 201.8 316.8 315 1.8 6.0 GWSLD0650A160 6.5 102.0 162.0 160 2.0 6.5 GWSLD0650A200 6.5 127.0 202.0 200 2.0 6.5 GWSLD0650A250 6.5 162.0 252.0 250 2.0 6.5 Order Number Dimensions (mm) u o Z7) DC LCF OAL LF PL DCON GWSLD0650A315 6.5 202.0 317.0 315 2.0 6.5 GWSLD0680A160 6.8 102.0 162.0 160 2.0 6.8 GWSLD0680A200 6.8 127.0 202.0 200 2.0 6.8 GWSLD0680A250 6.8 162.0 252.0 250 2.0 6.8 GWSLD0680A315 6.8 202.0 317.0 315 2.0 6.8 GWSLD0700A160 7.0 102.1 162.1 160 2.1 7.0 GWSLD0700A200 7.0 127.1 202.1 200 2.1 7.0 GWSLD0700A250 7.0 162.1 252.1 250 2.1 7.0 GWSLD0700A315 7.0 202.1 317.1 315 2.1 7.0 GWSLD0750A200 7.5 127.3 202.3 200 2.3 7.5 GWSLD0750A250 7.5 162.3 252.3 250 2.3 7.5 GWSLD0750A315 7.5 202.3 317.3 315 2.3 7.5 GWSLD0800A200 8.0 127.4 202.4 200 2.4 8.0 GWSLD0800A250 8.0 162.4 252.4 250 2.4 8.0 GWSLD0800A315 8.0 202.4 317.4 315 2.4 8.0 GWSLD0850A200 8.5 142.6 202.6 200 2.6 8.5 GWSLD0850A250 8.5 162.6 252.6 250 2.6 8.5 GWSLD0850A315 8.5 202.6 317.6 315 2.6 8.5 GWSLD0900A200 9.0 142.7 202.7 200 2.7 9.0 GWSLD0900A250 9.0 162.7 252.7 250 2.7 9.0 GWSLD0900A315 9.0 202.7 317.7 315 2.7 9.0 GWSLD0950A200 9.5 142.9 202.9 200 2.9 9.5 GWSLD0950A250 9.5 162.9 252.9 250 2.9 9.5 GWSLD0950A315 9.5 202.9 317.9 315 2.9 9.5 GWSLD1000A200 10.0 143.0 203.0 200 3.0 10.0 GWSLD1000A250 10.0 163.0 253.0 250 3.0 10.0 GWSLD1000A315 10.0 203.0 318.0 315 3.0 10.0 GWSLD1050A250 10.5 163.2 253.2 250 3.2 10.5 GWSLD1050A315 10.5 203.2 318.2 315 3.2 10.5 GWSLD1100A250 11.0 163.3 253.3 250 3.3 11.0 GWSLD1100A315 11.0 203.3 318.3 315 3.3 11.0 GWSLD1150A250 11.5 163.5 253.5 250 3.5 11.5 GWSLD1150A315 11.5 203.5 318.5 315 3.5 11.5 GWSLD1200A250 12.0 163.6 253.6 250 3.6 12.0 GWSLD1200A315 12.0 203.6 318.6 315 3.6 12.0 GWSLD1250A250 12.5 163.8 253.8 250 3.8 12.5 GWSLD1250A315 12.5 203.8 318.8 315 3.8 12.5 GWSLD1300A250 13.0 163.9 253.9 250 3.9 13.0 GWSLD1300A315 13.0 203.9 318.9 315 3.9 13.0 CUTTING CONDITIONS > P188 TECHNICAL DATA > R001
