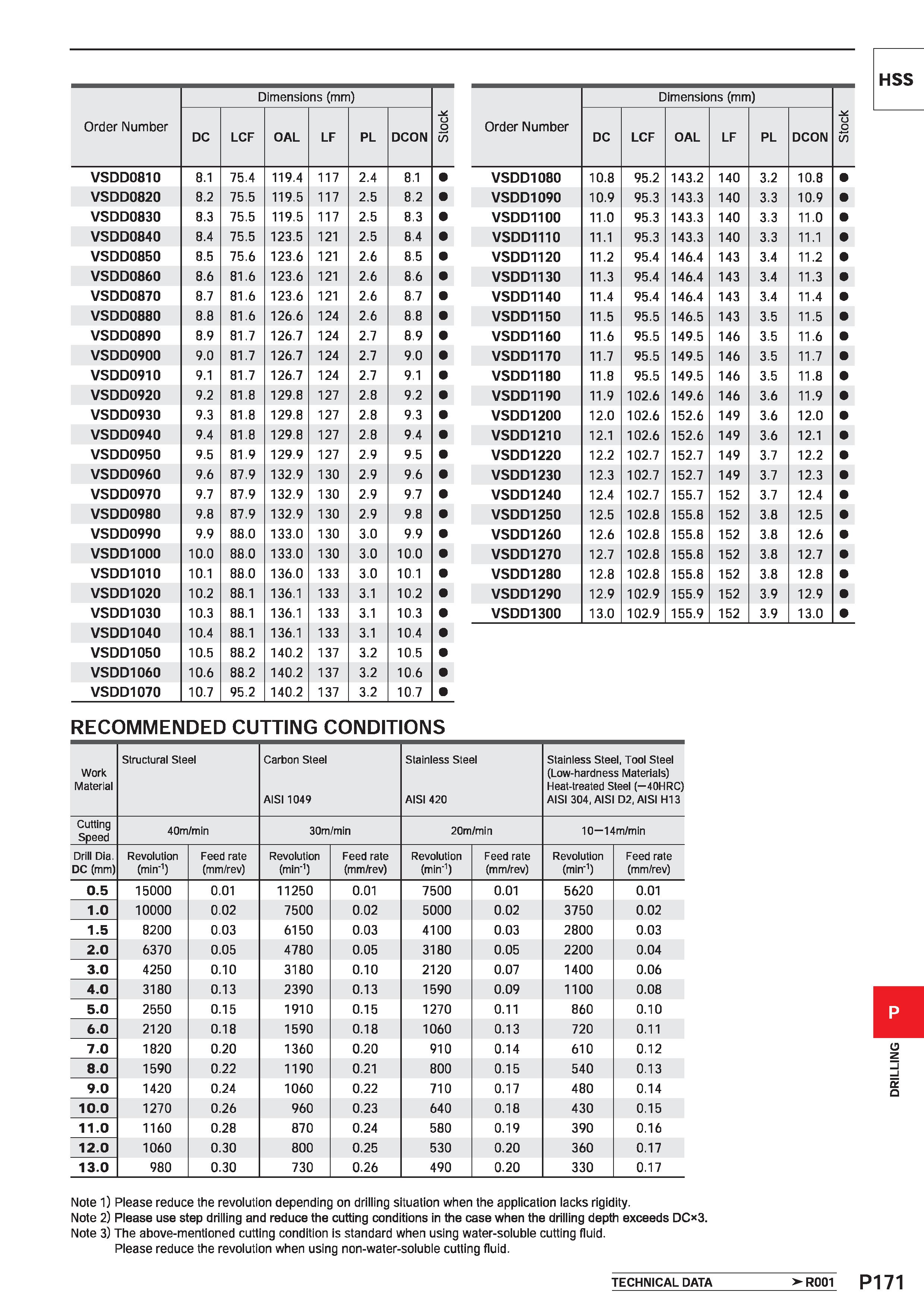

Order Number Dimensions (mm) 55 DC LCF OAL LF PL DCON VSDD0810 8.1 75.4 119.4 117 2.4 8.1 VSDD0820 8.2 75.5 119.5 117 2.5 8.2 VSDD0830 8.3 75.5 119.5 117 2.5 8.3 VSDD0840 8.4 75.5 123.5 121 2.5 8.4 VSDD0850 8.5 75.6 123.6 121 2.6 8.5 VSDD0860 8.6 81.6 123.6 121 2.6 8.6 VSDD0870 8.7 81.6 123.6 121 2.6 8.7 VSDD0880 8.8 81.6 126.6 124 2.6 8.8 VSDD0890 8.9 81.7 126.7 124 2.7 8.9 VSDD0900 9.0 81.7 126.7 124 2.7 9.0 VSDD0910 9.1 81.7 126.7 124 2.7 9.1 VSDD0920 9.2 81.8 129.8 127 2.8 9.2 VSDD0930 9.3 81.8 129.8 127 2.8 9.3 VSDD0940 9.4 81.8 129.8 127 2.8 9.4 VSDD0950 9.5 81.9 129.9 127 2.9 9.5 VSDD0960 9.6 87.9 132.9 130 2.9 9.6 VSDD0970 9.7 87.9 132.9 130 2.9 9.7 VSDD0980 9.8 87.9 132.9 130 2.9 9.8 VSDD0990 9.9 88.0 133.0 130 3.0 9.9 VSDD1000 10.0 88.0 133.0 130 3.0 10.0 VSDD1010 10.1 88.0 136.0 133 3.0 10.1 VSDD1020 10.2 88.1 136.1 133 3.1 10.2 VSDD1030 10.3 88.1 136.1 133 3.1 10.3 VSDD1040 10.4 88.1 136.1 133 3.1 10.4 VSDD1050 10.5 88.2 140.2 137 3.2 10.5 VSDD1060 10.6 88.2 140.2 137 3.2 10.6 VSDD1070 10.7 95.2 140.2 137 3.2 10.7 Order Number Dimensions (mm) u o 55 DC LCF OAL LF PL DCON VSDD1080 10.8 95.2 143.2 140 3.2 10.8 VSDD1090 10.9 95.3 143.3 140 3.3 10.9 VSDD1100 11.0 95.3 143.3 140 3.3 11.0 VSDD1110 11.1 95.3 143.3 140 3.3 11.1 VSDD1120 11.2 95.4 146.4 143 3.4 11.2 VSDD1130 11.3 95.4 146.4 143 3.4 11.3 VSDD1140 11.4 95.4 146.4 143 3.4 11.4 VSDD1150 11.5 95.5 146.5 143 3.5 11.5 VSDD1160 11.6 95.5 149.5 146 3.5 11.6 VSDD1170 11.7 95.5 149.5 146 3.5 11.7 VSDD1180 11.8 95.5 149.5 146 3.5 11.8 VSDD1190 11.9 102.6 149.6 146 3.6 11.9 VSDD1200 12.0 102.6 152.6 149 3.6 12.0 VSDD1210 12.1 102.6 152.6 149 3.6 12.1 VSDD1220 12.2 102.7 152.7 149 3.7 12.2 VSDD1230 12.3 102.7 152.7 149 3.7 12.3 VSDD1240 12.4 102.7 155.7 152 3.7 12.4 VSDD1250 12.5 102.8 155.8 152 3.8 12.5 VSDD1260 12.6 102.8 155.8 152 3.8 12.6 VSDD1270 12.7 102.8 155.8 152 3.8 12.7 VSDD1280 12.8 102.8 155.8 152 3.8 12.8 VSDD1290 12.9 102.9 155.9 152 3.9 12.9 VSDD1300 13.0 102.9 155.9 152 3.9 13.0 RECOMMENDED CUTTING CONDITIONS Work Material Structural Steel Carbon Steel AIS11049 Stainless Steel AISI 420 Stainless Steel, Tool Steel (Low-hardness Materials) Heat-treated Steel ( 40HRC) AISI 304, AISI D2, AISI H13 Cutting Speed 40m/min 30m/min 20m/min 10 14m/min Drill Dia. DC (mm) Revolution (min'1) Feed rate (mm/rev) Revolution (min'1) Feed rate (mm/rev) Revolution (min'1) Feed rate (mm/rev) Revolution (min'1) Feed rate (mm/rev) 0.5 15000 0.01 11250 0.01 7500 0.01 5620 0.01 1.0 10000 0.02 7500 0.02 5000 0.02 3750 0.02 1.5 8200 0.03 6150 0.03 4100 0.03 2800 0.03 2.0 6370 0.05 4780 0.05 3180 0.05 2200 0.04 3.0 4250 0.10 3180 0.10 2120 0.07 1400 0.06 4.0 3180 0.13 2390 0.13 1590 0.09 1100 0.08 5.0 2550 0.15 1910 0.15 1270 0.11 860 0.10 6.0 2120 0.18 1590 0.18 1060 0.13 720 0.11 7.0 1820 0.20 1360 0.20 910 0.14 610 0.12 8.0 1590 0.22 1190 0.21 800 0.15 540 0.13 9.0 1420 0.24 1060 0.22 710 0.17 480 0.14 10.0 1270 0.26 960 0.23 640 0.18 430 0.15 11.0 1160 0.28 870 0.24 580 0.19 390 0.16 12.0 1060 0.30 800 0.25 530 0.20 360 0.17 13.0 980 0.30 730 0.26 490 0.20 330 0.17 Note 1) Please reduce the revolution depending on drilling situation when the application lacks rigidity. Note 2) Please use step drilling and reduce the cutting conditions in the case when the drilling depth exceeds DC 3. Note 3) The above-mentioned cutting condition is standard when using water-soluble cutting fluid. Please reduce the revolution when using non-water-soluble cutting fluid. TECHNICAL DATA > R001
