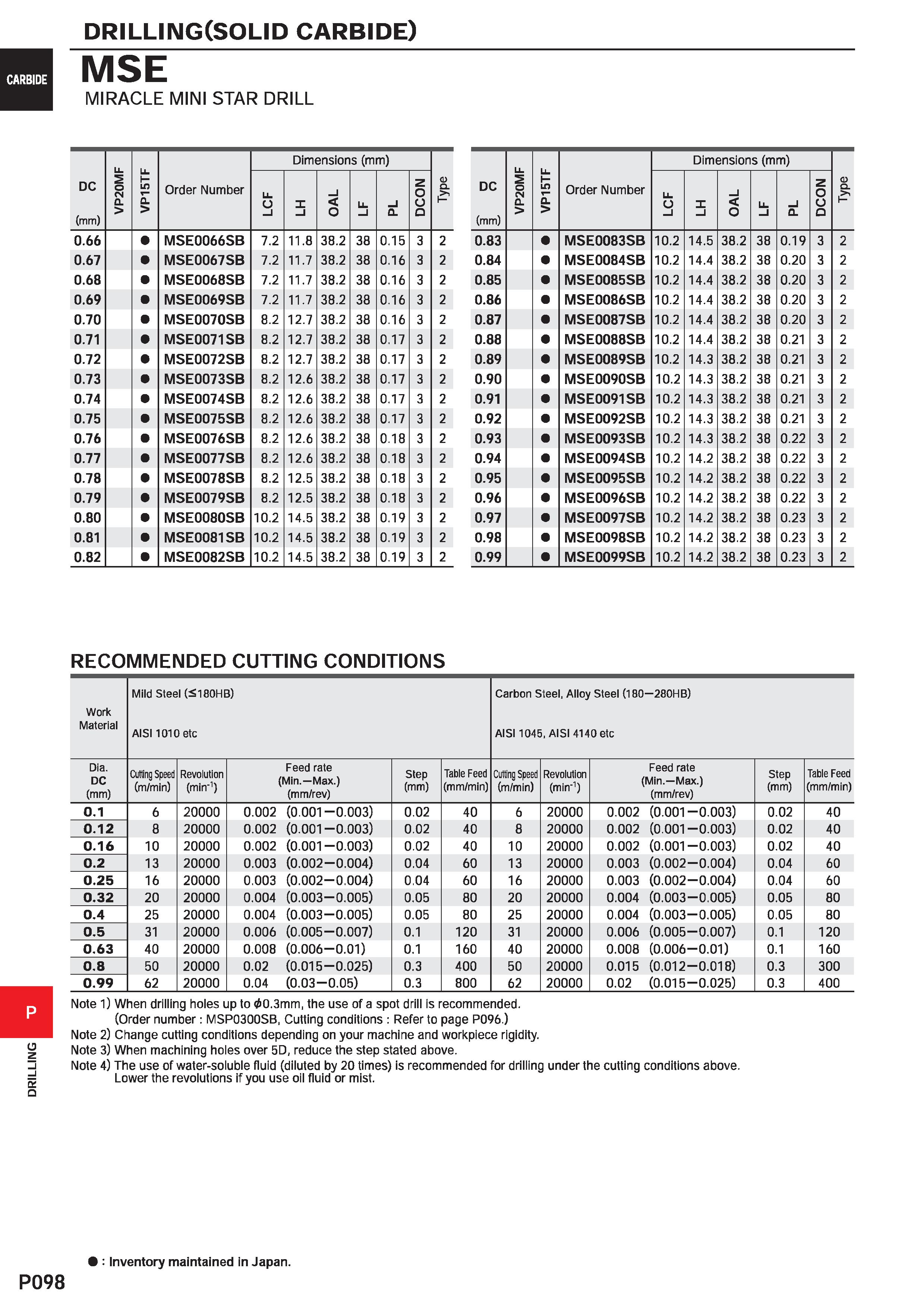

DRILLING DRILLING(SOLID carbide) MSE MIRACLE MINI STAR DRILL DC (mm) VP20MF VP15TF Order Number Dimensions (mm) Type LCF X i OAL Li. l i CL DCON 0.66 MSE0066SB 7.2 11.8 38.2 38 0.15 3 2 0.67 MSE0067SB 7.2 11.7 38.2 38 0.16 3 2 0.68 MSE0068SB 7.2 11.7 38.2 38 0.16 3 2 0.69 MSE0069SB 7.2 11.7 38.2 38 0.16 3 2 0.70 MSE0070SB 8.2 12.7 38.2 38 0.16 3 2 0.71 MSE0071SB 8.2 12.7 38.2 38 0.17 3 2 0.72 MSE0072SB 8.2 12.7 38.2 38 0.17 3 2 0.73 MSE0073SB 8.2 12.6 38.2 38 0.17 3 2 0.74 MSE0074SB 8.2 12.6 38.2 38 0.17 3 2 0.75 MSE0075SB 8.2 12.6 38.2 38 0.17 3 2 0.76 MSE0076SB 8.2 12.6 38.2 38 0.18 3 2 0.77 MSE0077SB 8.2 12.6 38.2 38 0.18 3 2 0.78 MSE0078SB 8.2 12.5 38.2 38 0.18 3 2 0.79 MSE0079SB 8.2 12.5 38.2 38 0.18 3 2 0.80 MSE0080SB 10.2 14.5 38.2 38 0.19 3 2 0.81 MSE0081SB 10.2 14.5 38.2 38 0.19 3 2 0.82 MSE0082SB 10.2 14.5 38.2 38 0.19 3 2 DC (mm) VP20MF VP15TF Order Number Dimensions (mm) Type LCF X i OAL Li. l i a. DCON 0.83 MSE0083SB 10.2 14.5 38.2 38 0.19 3 2 0.84 MSE0084SB 10.2 14.4 38.2 38 0.20 3 2 0.85 MSE0085SB 10.2 14.4 38.2 38 0.20 3 2 0.86 MSE0086SB 10.2 14.4 38.2 38 0.20 3 2 0.87 MSE0087SB 10.2 14.4 38.2 38 0.20 3 2 0.88 MSE0088SB 10.2 14.4 38.2 38 0.21 3 2 0.89 MSE0089SB 10.2 14.3 38.2 38 0.21 3 2 0.90 MSE0090SB 10.2 14.3 38.2 38 0.21 3 2 0.91 MSE0091SB 10.2 14.3 38.2 38 0.21 3 2 0.92 MSE0092SB 10.2 14.3 38.2 38 0.21 3 2 0.93 MSE0093SB 10.2 14.3 38.2 38 0.22 3 2 0.94 MSE0094SB 10.2 14.2 38.2 38 0.22 3 2 0.95 MSE0095SB 10.2 14.2 38.2 38 0.22 3 2 0.96 MSE0096SB 10.2 14.2 38.2 38 0.22 3 2 0.97 MSE0097SB 10.2 14.2 38.2 38 0.23 3 2 0.98 MSE0098SB 10.2 14.2 38.2 38 0.23 3 2 0.99 MSE0099SB 10.2 14.2 38.2 38 0.23 3 2 RECOMMENDED CUTTING CONDITIONS Work Material Mild Steel (5180HB) AIS11010 etc Carbon Steel, Alloy Steel (180 AIS11045, AISI 4140 etc -280HB) Dia. DC (mm) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Step (mm) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Step (mm) Table Feed (mm/min) 0.1 6 20000 0.002 (0.001 -0.003) 0.02 40 6 20000 0.002 (0.001 -0.003) 0.02 40 0.12 8 20000 0.002 (0.001 -0.003) 0.02 40 8 20000 0.002 (0.001 -0.003) 0.02 40 0.16 10 20000 0.002 (0.001 -0.003) 0.02 40 10 20000 0.002 (0.001 -0.003) 0.02 40 0.2 13 20000 0.003 (0.002-0.004) 0.04 60 13 20000 0.003 (0.002-0.004) 0.04 60 0.25 16 20000 0.003 (0.002-0.004) 0.04 60 16 20000 0.003 (0.002-0.004) 0.04 60 0.32 20 20000 0.004 (0.003-0.005) 0.05 80 20 20000 0.004 (0.003-0.005) 0.05 80 0.4 25 20000 0.004 (0.003-0.005) 0.05 80 25 20000 0.004 (0.003-0.005) 0.05 80 0.5 31 20000 0.006 (0.005-0.007) 0.1 120 31 20000 0.006 (0.005-0.007) 0.1 120 0.63 40 20000 0.008 (0.006-0.01) 0.1 160 40 20000 0.008 (0.006-0.01) 0.1 160 0.8 50 20000 0.02 (0.015-0.025) 0.3 400 50 20000 0.015 (0.012-0.018) 0.3 300 0.99 62 20000 0.04 (0.03-0.05) 0.3 800 62 20000 0.02 (0.015-0.025) 0.3 400 Note 1) When drilling holes up to 00.3mm, the use of a spot drill is recommended. (Order number: MSP0300SB, Cutting conditions : Refer to page P096.) Note 2) Change cutting conditions depending on your machine and workpiece rigidity. Note 3) When machining holes over 5D, reduce the step stated above. Note 4) The use of water-soluble fluid (diluted by 20 times) is recommended for drilling under the cutting conditions above. Lower the revolutions if you use oil fluid or mist. : Inventory maintained in Japan. P098
