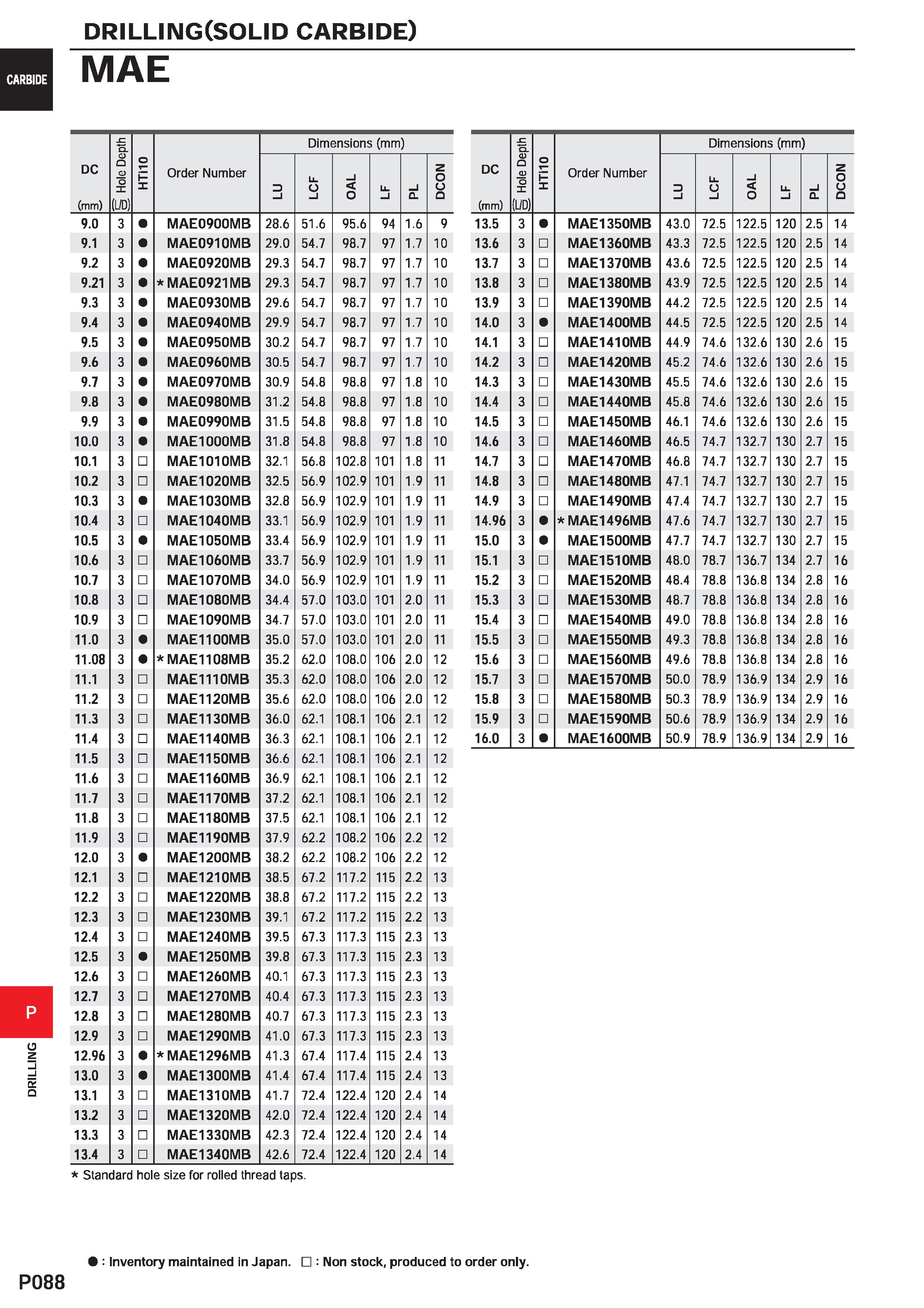

DRILLING(SOLID carbide) MAE DC (mm) S Hole Depth HTilO Order Number Dimensions (mm DC (mm) tz Q. D Q D O m HTilO Order Number Dimensions (mm 3 l LCF OAL Li. l i Q. z Q 3 l LCF OAL Ll. l i 0. DCON 9.0 3 MAE0900MB 28.6 51.6 95.6 94 1.6 9 13.5 3 MAE1350MB 43.0 72.5 122.5 120 2.5 14 9.1 3 MAE0910MB 29.0 54.7 98.7 97 1.7 10 13.6 3 MAE1360MB 43.3 72.5 122.5 120 2.5 14 9.2 3 MAE0920MB 29.3 54.7 98.7 97 1.7 10 13.7 3 MAE1370MB 43.6 72.5 122.5 120 2.5 14 9.21 3 MAE0921MB 29.3 54.7 98.7 97 1.7 10 13.8 3 MAE1380MB 43.9 72.5 122.5 120 2.5 14 9.3 3 MAE0930MB 29.6 54.7 98.7 97 1.7 10 13.9 3 MAE1390MB 44.2 72.5 122.5 120 2.5 14 9.4 3 MAE0940MB 29.9 54.7 98.7 97 1.7 10 14.0 3 MAE1400MB 44.5 72.5 122.5 120 2.5 14 9.5 3 MAE0950MB 30.2 54.7 98.7 97 1.7 10 14.1 3 MAE1410MB 44.9 74.6 132.6 130 2.6 15 9.6 3 MAE0960MB 30.5 54.7 98.7 97 1.7 10 14.2 3 MAE1420MB 45.2 74.6 132.6 130 2.6 15 9.7 3 MAE0970MB 30.9 54.8 98.8 97 1.8 10 14.3 3 MAE1430MB 45.5 74.6 132.6 130 2.6 15 9.8 3 MAE0980MB 31.2 54.8 98.8 97 1.8 10 14.4 3 MAE1440MB 45.8 74.6 132.6 130 2.6 15 9.9 3 MAE0990MB 31.5 54.8 98.8 97 1.8 10 14.5 3 MAE1450MB 46.1 74.6 132.6 130 2.6 15 10.0 3 MAE1000MB 31.8 54.8 98.8 97 1.8 10 14.6 3 MAE1460MB 46.5 74.7 132.7 130 2.7 15 10.1 3 MAE1010MB 32.1 56.8 102.8 101 1.8 11 14.7 3 MAE1470MB 46.8 74.7 132.7 130 2.7 15 10.2 3 MAE1020MB 32.5 56.9 102.9 101 1.9 11 14.8 3 MAE1480MB 47.1 74.7 132.7 130 2.7 15 10.3 3 MAE1030MB 32.8 56.9 102.9 101 1.9 11 14.9 3 MAE1490MB 47.4 74.7 132.7 130 2.7 15 10.4 3 MAE1040MB 33.1 56.9 102.9 101 1.9 11 14.96 3 MAE1496MB 47.6 74.7 132.7 130 2.7 15 10.5 3 MAE1050MB 33.4 56.9 102.9 101 1.9 11 15.0 3 MAE1500MB 47.7 74.7 132.7 130 2.7 15 10.6 3 MAE1060MB 33.7 56.9 102.9 101 1.9 11 15.1 3 MAE1510MB 48.0 78.7 136.7 134 2.7 16 10.7 3 MAE1070MB 34.0 56.9 102.9 101 1.9 11 15.2 3 MAE1520MB 48.4 78.8 136.8 134 2.8 16 10.8 3 MAE1080MB 34.4 57.0 103.0 101 2.0 11 15.3 3 MAE1530MB 48.7 78.8 136.8 134 2.8 16 10.9 3 MAE1090MB 34.7 57.0 103.0 101 2.0 11 15.4 3 MAE1540MB 49.0 78.8 136.8 134 2.8 16 11.0 3 MAE1100MB 35.0 57.0 103.0 101 2.0 11 15.5 3 MAE1550MB 49.3 78.8 136.8 134 2.8 16 11.08 3 MAE1108MB 35.2 62.0 108.0 106 2.0 12 15.6 3 MAE1560MB 49.6 78.8 136.8 134 2.8 16 11.1 3 MAE1110MB 35.3 62.0 108.0 106 2.0 12 15.7 3 MAE1570MB 50.0 78.9 136.9 134 2.9 16 11.2 3 MAE1120MB 35.6 62.0 108.0 106 2.0 12 15.8 3 MAE1580MB 50.3 78.9 136.9 134 2.9 16 11.3 3 MAE1130MB 36.0 62.1 108.1 106 2.1 12 15.9 3 MAE1590MB 50.6 78.9 136.9 134 2.9 16 11.4 3 MAE1140MB 36.3 62.1 108.1 106 2.1 12 16.0 3 MAE1600MB 50.9 78.9 136.9 134 2.9 16 11.5 3 MAE1150MB 36.6 62.1 108.1 106 2.1 12 11.6 3 MAE1160MB 36.9 62.1 108.1 106 2.1 12 11.7 3 MAE1170MB 37.2 62.1 108.1 106 2.1 12 11.8 3 MAE1180MB 37.5 62.1 108.1 106 2.1 12 11.9 3 MAE1190MB 37.9 62.2 108.2 106 2.2 12 12.0 3 MAE1200MB 38.2 62.2 108.2 106 2.2 12 12.1 3 MAE1210MB 38.5 67.2 117.2 115 2.2 13 12.2 3 MAE1220MB 38.8 67.2 117.2 115 2.2 13 12.3 3 MAE1230MB 39.1 67.2 117.2 115 2.2 13 12.4 3 MAE1240MB 39.5 67.3 117.3 115 2.3 13 12.5 3 MAE1250MB 39.8 67.3 117.3 115 2.3 13 12.6 3 MAE1260MB 40.1 67.3 117.3 115 2.3 13 12.7 3 MAE1270MB 40.4 67.3 117.3 115 2.3 13 12.8 3 MAE1280MB 40.7 67.3 117.3 115 2.3 13 12.9 3 MAE1290MB 41.0 67.3 117.3 115 2.3 13 12.96 3 MAE1296MB 41.3 67.4 117.4 115 2.4 13 13.0 3 MAE1300MB 41.4 67.4 117.4 115 2.4 13 13.1 3 MAE1310MB 41.7 72.4 122.4 120 2.4 14 13.2 3 MAE1320MB 42.0 72.4 122.4 120 2.4 14 13.3 3 MAE1330MB 42.3 72.4 122.4 120 2.4 14 13.4 3 MAE1340MB 42.6 72.4 122.4 120 2.4 14 Standard hole size for rolled thread taps. : Inventory maintained in Japan. : Non stock, produced to order only.
