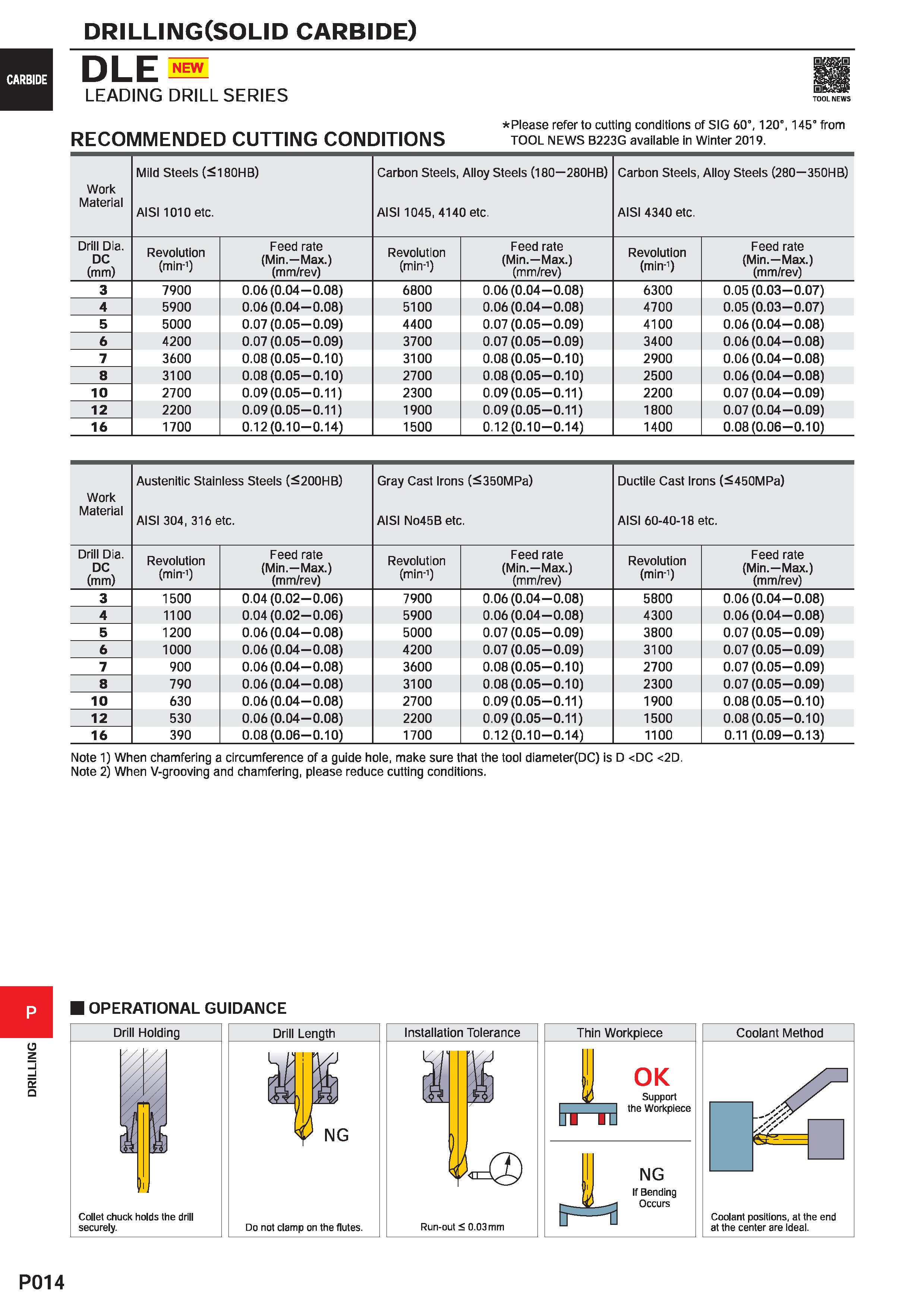

DRILLING DRILLING(SOLID carbide) CARBIDE P014 DLE NEW LEADING DRILL SERIES Please refer to cutting conditions of SIG 60°, 120°, 145° from RECOMMENDED CUTTING CONDITIONS TOOL NEWS B223G available in Winter 2019. Work Material Mild Steels (<180HB) AIS11010 etc. Carbon Steels, Alloy Steels (180 280HB) AISI 1045, 4140 etc. Carbon Steels, Alloy Steels (280 350HB) AISI 4340 etc. Drill Dia. DC (mm) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) 3 7900 0.06(0.04-0.08) 6800 0.06(0.04-0.08) 6300 0.05 (0.03-0.07) 4 5900 0.06(0.04-0.08) 5100 0.06(0.04-0.08) 4700 0.05 (0.03-0.07) 5 5000 0.07 (0.05-0.09) 4400 0.07 (0.05-0.09) 4100 0.06(0.04-0.08) 6 4200 0.07 (0.05-0.09) 3700 0.07 (0.05-0.09) 3400 0.06(0.04-0.08) 7 3600 0.08 (0.05-0.10) 3100 0.08(0.05-0.10) 2900 0.06(0.04-0.08) 8 3100 0.08 (0.05-0.10) 2700 0.08(0.05-0.10) 2500 0.06(0.04-0.08) 10 2700 0.09(0.05-0.11) 2300 0.09(0.05-0.11) 2200 0.07 (0.04-0.09) 12 2200 0.09(0.05-0.11) 1900 0.09(0.05-0.11) 1800 0.07 (0.04-0.09) 16 1700 0.12(0.10-0.14) 1500 0.12(0.10-0.14) 1400 0.08(0.06-0.10) Work Material Austenitic Stainless Steels ( 200HB) AISI 304, 316 etc. Gray Cast Irons ( 350MPa) AISI No45B etc. Ductile Cast Irons ( 450MPa) AISI 60-40-18 etc. Drill Dia. DC (mm) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) 3 1500 0.04 (0.02-0.06) 7900 0.06(0.04-0.08) 5800 0.06(0.04-0.08) 4 1100 0.04 (0.02-0.06) 5900 0.06(0.04-0.08) 4300 0.06(0.04-0.08) 5 1200 0.06(0.04-0.08) 5000 0.07 (0.05-0.09) 3800 0.07 (0.05-0.09) 6 1000 0.06(0.04-0.08) 4200 0.07 (0.05-0.09) 3100 0.07 (0.05-0.09) 7 900 0.06(0.04-0.08) 3600 0.08(0.05-0.10) 2700 0.07(0.05-0.09) 8 790 0.06(0.04-0.08) 3100 0.08(0.05-0.10) 2300 0.07(0.05-0.09) 10 630 0.06(0.04-0.08) 2700 0.09(0.05-0.11) 1900 0.08(0.05-0.10) 12 530 0.06(0.04-0.08) 2200 0.09(0.05-0.11) 1500 0.08(0.05-0.10) 16 390 0.08(0.06-0.10) 1700 0.12(0.10-0.14) 1100 0.11 (0.09-0.13) Note 1) When chamfering a circumference of a guide hole, make sure that the tool diameter(DC) is D DC 2D. Note 2) When V-grooving and chamfering, please reduce cutting conditions. I OPERATIONAL GUIDANCE Thin Workpiece OK Support 1 the Workpiece Ul IIU Er 3 NG If Bending Occurs
