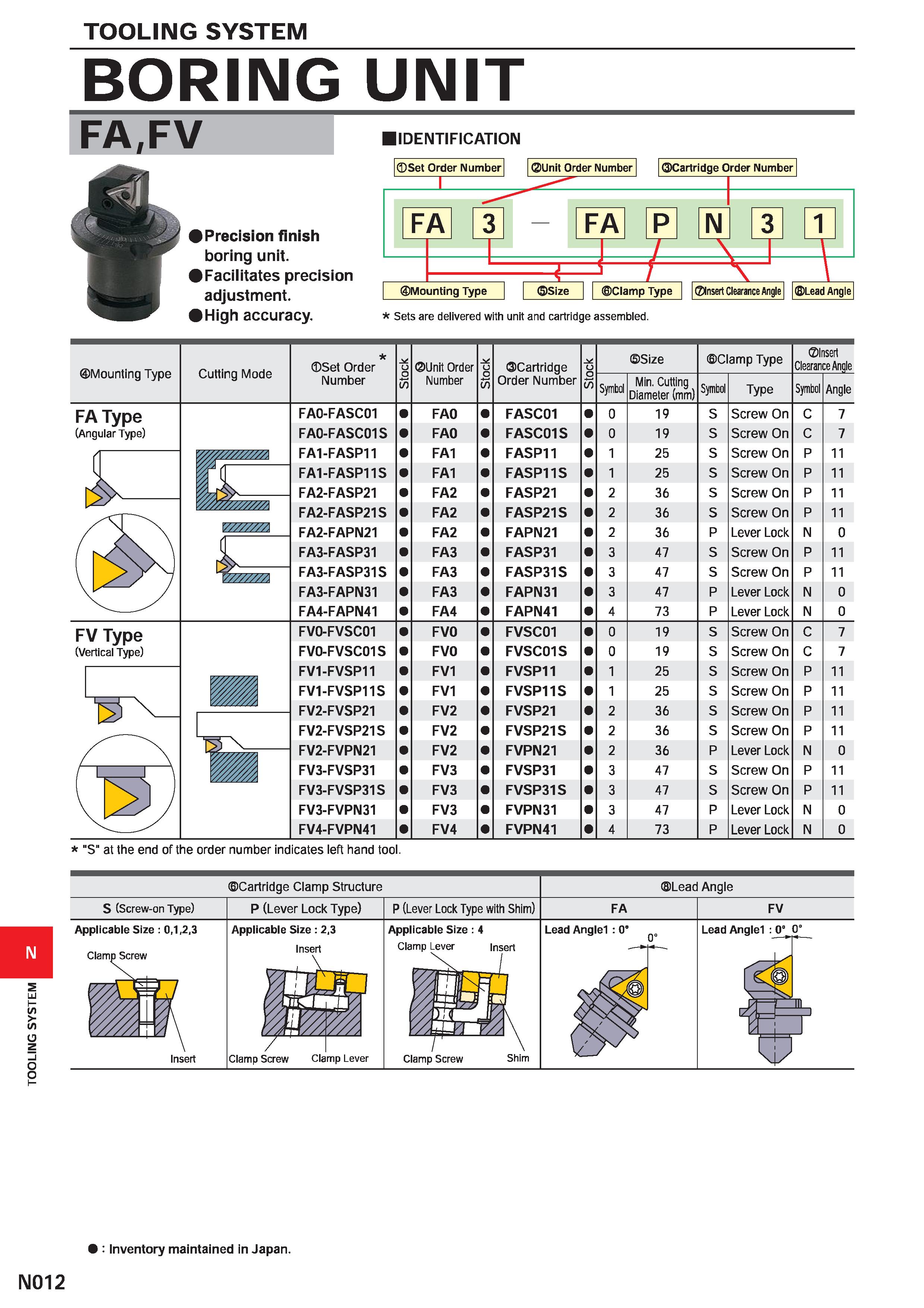

TOOLING SYSTEM TOOLING SYSTEM BORING UNIT FA,FV IDENTIFICATION Set Order Number 2)Unit Order Number Cartridge Order Number > Precision finish boring unit. )Facilitates precision adjustment. I High accuracy. FA 3 ± FA P N L AIT Mounting Type Size Clamp Type Onsert Clearance Angle Lead Angie Sets are delivered with unit and cartridge assembled. Set Order Number Stock Unit Order Number Stock Cartridge Order Number Stock Size Clamp Type insert Clearance Angle Symbol Min. Cutting Diameter (mm) Symbol Type Symbol Angle FA0-FASC01 FAO FASC01 0 19 S Screw On C 7 FA0-FASC01S FAO FASC01S 0 19 S Screw On C 7 FA1-FASP11 FA1 FASP11 1 25 s Screw On P 11 FA1-FASP11S FA1 FASP11S 1 25 s Screw On P 11 FA2-FASP21 FA2 FASP21 2 36 S Screw On P 11 FA2-FASP21S FA2 FASP21S 2 36 s Screw On P 11 FA2-FAPN21 FA2 FAPN21 2 36 p Lever Lock N 0 FA3-FASP31 FA3 FASP31 3 47 s Screw On P 11 FA3-FASP31S FA3 FASP31S 3 47 s Screw On P 11 FA3-FAPN31 FA3 FAPN31 3 47 p Lever Lock N 0 FA4-FAPN41 FA4 FAPN41 4 73 P Lever Lock N 0 FV0-FVSC01 FVO FVSC01 0 19 S Screw On C 7 FV0-FVSC01S FVO FVSC01S 0 19 s Screw On C 7 FV1-FVSP11 FV1 FVSP11 1 25 s Screw On P 11 FV1-FVSP11S FV1 FVSP11S 1 25 s Screw On P 11 FV2-FVSP21 FV2 FVSP21 2 36 s Screw On P 11 FV2-FVSP21S FV2 FVSP21S 2 36 s Screw On P 11 FV2-FVPN21 FV2 FVPN21 2 36 p Lever Lock N 0 FV3-FVSP31 FV3 FVSP31 3 47 S Screw On P 11 FV3-FVSP31S FV3 FVSP31S 3 47 s Screw On P 11 FV3-FVPN31 FV3 FVPN31 3 47 p Lever Lock N 0 FV4-FVPN41 FV4 FVPN41 4 73 p Lever Lock N 0 Mounting Type Cutting Mode FA Type (Angular Type) V//////A V//////A FV Type (Vertical Type) "S" at the end of the order number indicates left hand tool. : Inventory maintained in Japan. N012
