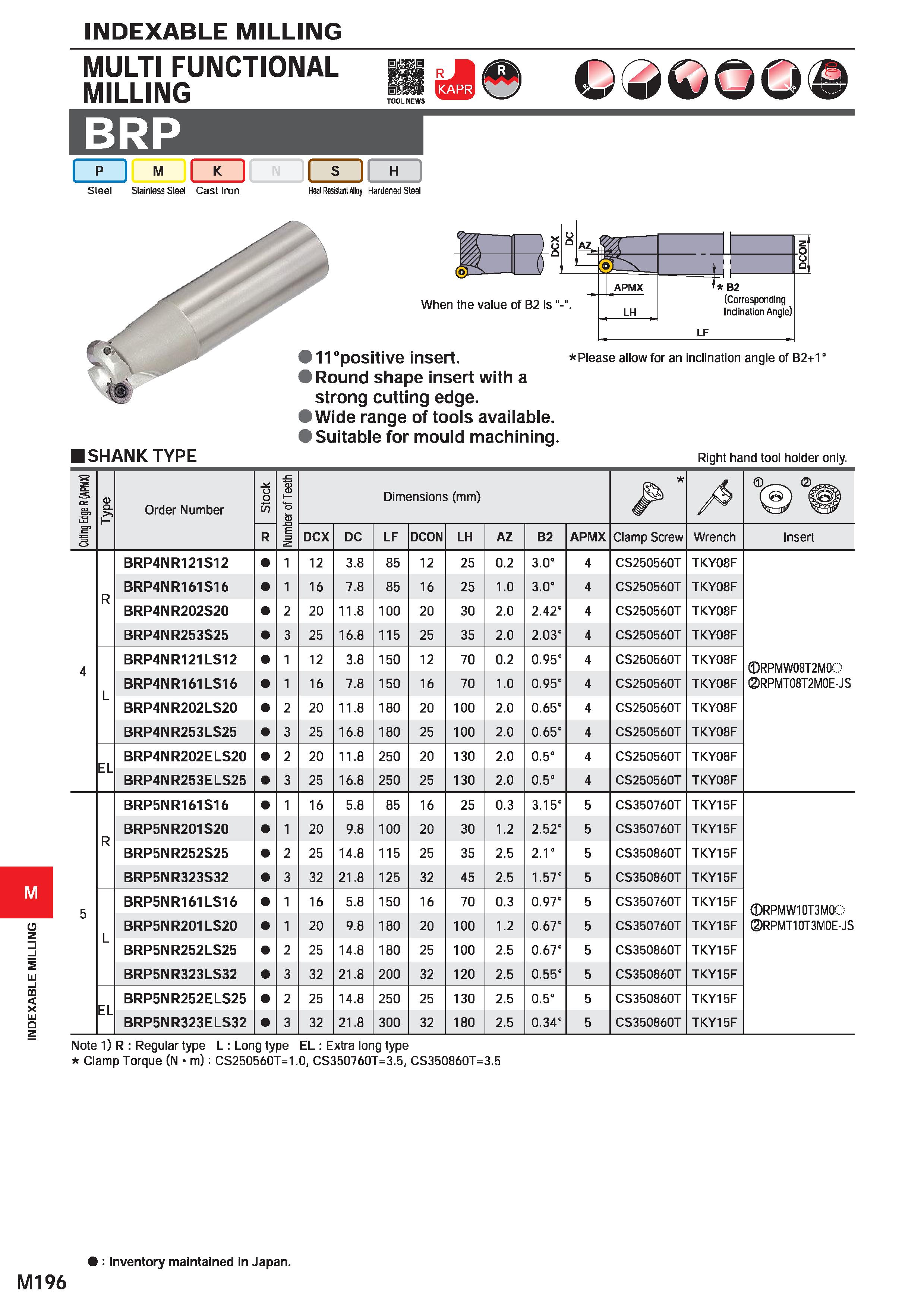

INDEXABLE MILLING MULTI FUNCTIONAL MILLING BRP I p I M 1 K I Steel Stainless Steel Cast Iron E TOOL NEWS J c o I s II H 1 Heat Resistant Alloy Hardened Steel SHANK TYPE 11 "positive insert. Please allow for an inclination angle of B2+1° Round shape insert with a strong cutting edge. Wide range of tools available. Suitable for mould machining. Right hand tool holder only. When the value of B2 is B2 (Corresponding Inclination Angle) Cutting Edge R (APMX) ai CL >1 H Order Number Stock Number of Teeth Dimensions (mm) A C R DCX DC LF DCON LH AZ B2 APMX Clamp Screw Wrench Insert BRP4NR121S12 1 12 3.8 85 12 25 0.2 3.0° 4 CS250560T TKY08F R BRP4NR161S16 1 16 7.8 85 16 25 1.0 3.0° 4 CS250560T TKY08F BRP4NR202S20 2 20 11.8 100 20 30 2.0 2.42" 4 CS250560T TKY08F 4 BRP4NR253S25 3 25 16.8 115 25 35 2.0 2.03° 4 CS250560T TKY08F RPMW08T2M0C 0RPMTO8T2MOE-JS BRP4NR121LS12 1 12 3.8 150 12 70 0.2 0.95° 4 CS250560T TKY08F L BRP4NR161LS16 1 16 7.8 150 16 70 1.0 0.95" 4 CS250560T TKY08F BRP4NR202LS20 2 20 11.8 180 20 100 2.0 0.65" 4 CS250560T TKY08F BRP4NR253LS25 3 25 16.8 180 25 100 2.0 0.65° 4 CS250560T TKY08F EL BRP4N R202 E LS20 2 20 11.8 250 20 130 2.0 0.5° 4 CS250560T TKY08F BRP4NR253ELS25 3 25 16.8 250 25 130 2.0 0.5° 4 CS250560T TKY08F BRP5NR161S16 1 16 5.8 85 16 25 0.3 3.15° 5 CS350760T TKY15F R BRP5IMR201S20 1 20 9.8 100 20 30 1.2 2.52" 5 CS350760T TKY15F BRP5NR252S25 2 25 14.8 115 25 35 2.5 2.1° 5 CS350860T TKY15F 5 BRP5NR323S32 3 32 21.8 125 32 45 2.5 1.57° 5 CS350860T TKY15F RPMW10T3M0C) 0RPMT1OT3IVIOE-JS BRP5NR161LS16 1 16 5.8 150 16 70 0.3 0.97" 5 CS350760T TKY15F L BRP5NR201LS20 1 20 9.8 180 20 100 1.2 0.67° 5 CS350760T TKY15F BRP5NR252LS25 2 25 14.8 180 25 100 2.5 0.67° 5 CS350860T TKY15F BRP5NR323LS32 3 32 21.8 200 32 120 2.5 0.55° 5 CS350860T TKY15F EL BRP5NR252ELS25 2 25 14.8 250 25 130 2.5 0.5° 5 CS350860T TKY15F BRP5NR323ELS32 3 32 21.8 300 32 180 2.5 0.34° 5 CS350860T TKY15F Note 1) R : Regular type L: Long type EL : Extra long type Clamp Torque (N m): CS250560T=1.0, CS350760T=3.5, CS350860T=3.5 : Inventory maintained in Japan.
