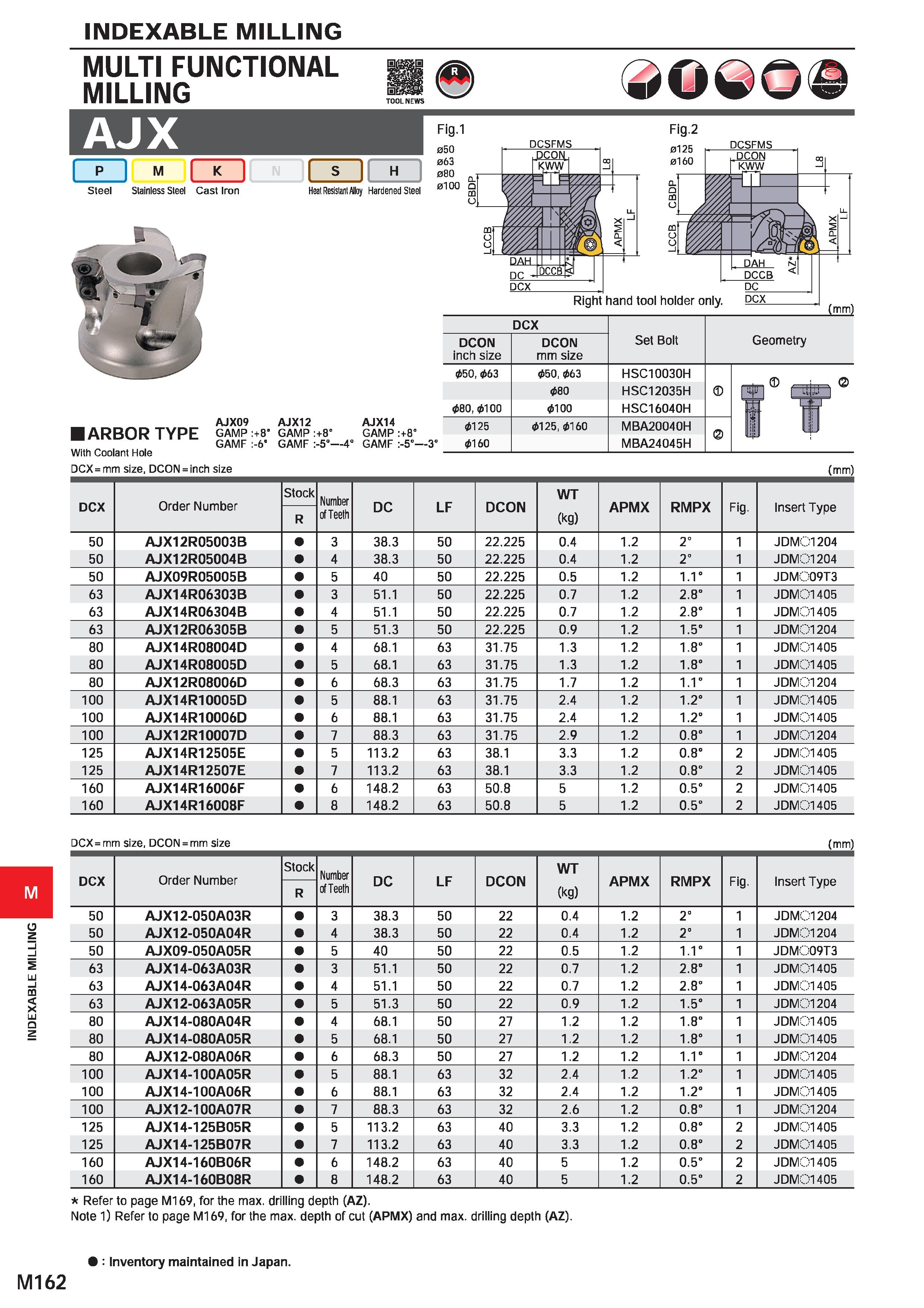

INDEXABLE MILLING MULTI FUNCTIONAL MILLING AJX DCSFMS i p i Steel M Stainless Steel I s H Cast Iron Heat Resistant Alloy Hardened Steel Fig.2 DCSFMS Right hand tool holder only. ARBOR TYPE With Coolant Hole DCX = mm size, DCON = inch size AJX09 GAMP :+8 GAMF :-6' AJX12 GAMP :+8° GAMF :-5“ 4° AJX14 GAMP :+8° GAMF :-5' 3' (mm) DCX Set Bolt Geometry DCON inch size DCON mm size 050, 063 050, 063 HSC10030H (2) 080 HSC12035H 3 pi 080,0100 0100 HSC16040H R Y F 0125 0125, 0160 MBA20040H J 0160 MBA24045H (mm) DCX Order Number Stock Number DC LF DCON WT APMX RMPX Fig. R ofTeeth (kg) uiberi ly ie 50 AJX12R05003B 3 38.3 50 22.225 0.4 1.2 2= 1 JDMC .1204 50 AJX12R05004B 4 38.3 50 22.225 0.4 1.2 2° 1 JDMC 1204 50 AJX09R05005B 5 40 50 22.225 0.5 1.2 1.1° 1 JDMC :09T3 63 AJX14R06303B 3 51.1 50 22.225 0.7 1.2 2.8° 1 JDMC 1405 63 AJX14R06304B 4 51.1 50 22.225 0.7 1.2 2.8° 1 JDMC ;1405 63 AJX12R06305B 5 51.3 50 22.225 0.9 1.2 1.5° 1 JDMC ;1204 80 AJX14R08004D 4 68.1 63 31.75 1.3 1.2 1.8” 1 JDMC ;1405 80 AJX14R08005D 5 68.1 63 31.75 1.3 1.2 1.8° 1 JDMC 1405 80 AJX12R08006D 6 68.3 63 31.75 1.7 1.2 1.1° 1 JDMC 1204 100 AJX14R10005D 5 88.1 63 31.75 2.4 1.2 1.2° 1 JDMC 1405 100 AJX14R10006D 6 88.1 63 31.75 2.4 1.2 1.2° 1 JDMC 1405 100 AJX12R10007D 7 88.3 63 31.75 2.9 1.2 o CD o 1 JDMC 1204 125 AJX14R12505E 5 113.2 63 38.1 3.3 1.2 0.8° 2 JDMC 1405 125 AJX14R12507E 7 113.2 63 38.1 3.3 1.2 0.8° 2 JDMC 1405 160 AJX14R16006F 6 148.2 63 50.8 5 1.2 0.5° 2 JDMC 1405 160 AJX14R16008F 8 148.2 63 50.8 5 1.2 0.5° 2 JDMC 1405 DCX = mr n size, DCON = mm size (mm) DCX Order Number Stock Number DC LF DCON WT APMX RMPX Fig. R ofTeeth (kg) inseii 50 AJX12-050A03R 3 38.3 50 22 0.4 1.2 2= 1 JDMC 1204 50 AJX12-050A04R 4 38.3 50 22 0.4 1.2 2= 1 JDMC 1204 50 AJX09-050A05R 5 40 50 22 0.5 1.2 1.1° 1 JDMC ;09T3 63 AJX14-063A03R 3 51.1 50 22 0.7 1.2 2.8° 1 JDMC 1405 63 AJX14-063A04R 4 51.1 50 22 0.7 1.2 2.8° 1 JDMC 1405 63 AJX12-063A05R 5 51.3 50 22 0.9 1.2 1.5° 1 JDMC 1204 80 AJX14-080A04R 4 68.1 50 27 1.2 1.2 1.8° 1 JDMC 1405 80 AJX14-080A05R 5 68.1 50 27 1.2 1.2 1.8° 1 JDMC 1405 80 AJX12-080A06R 6 68.3 50 27 1.2 1.2 1.1° 1 JDMC 1204 100 AJX14-100A05R 5 88.1 63 32 2.4 1.2 1.2” 1 JDMC 1405 100 AJX14-100A06R 6 88.1 63 32 2.4 1.2 1.2° 1 JDMC 1405 100 AJX12-100A07R 7 88.3 63 32 2.6 1.2 0.8” 1 JDMC 1204 125 AJX14-125B05R 5 113.2 63 40 3.3 1.2 0.8° 2 JDMC 1405 125 AJX14-125B07R 7 113.2 63 40 3.3 1.2 0.8° 2 JDMC 1405 160 AJX14-160B06R 6 148.2 63 40 5 1.2 0.5” 2 JDMC 1405 160 AJX14-160B08R 8 148.2 63 40 5 1.2 0.5” 2 JDMC 1405 Refer to page M169, for the max. drilling depth (AZ). Note 1) Refer to page M169, for the max. depth of cut (APMX) and max. drilling depth (AZ). : Inventory maintained in Japan.
