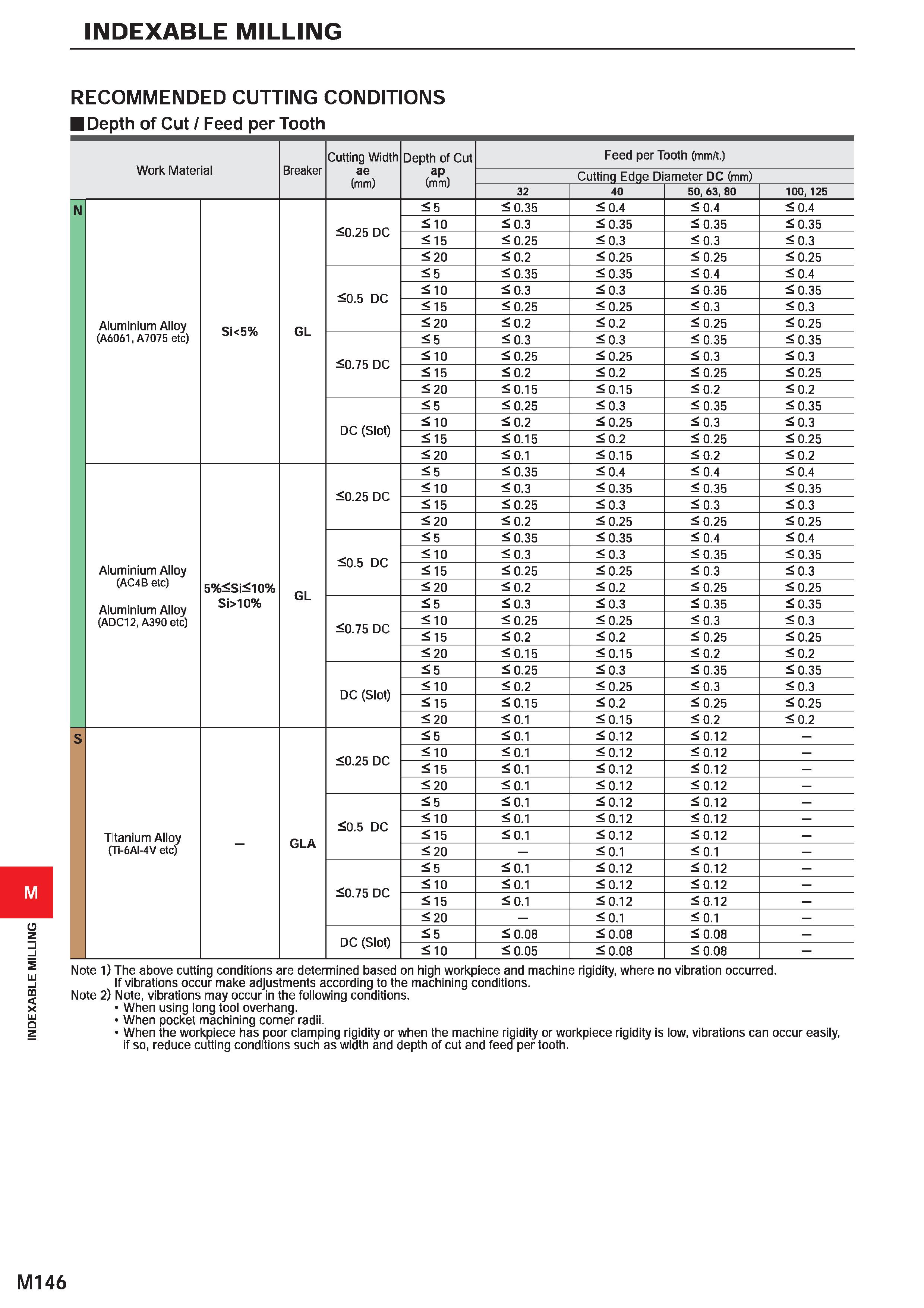

INDEXABLE MILLING INDEXABLE MILLING RECOMMENDED CUTTING CONDITIONS Depth of Cut / Feed per Tooth Breaker Cutting Width Depth of Cut Feed per Tooth (mm/t.) Work Material ae (mm) ap (mm) Cutting Edge Diameter DC (mm) 32 40 50, 63, 80 100, 125 N 5 0.35 0.4 0.4 0.4 0.25 DC 10 0.3 0.35 0.35 0.35 15 0.25 0.3 0.3 0.3 20 0.2 0.25 0.25 0.25 5 0.35 0.35 0.4 0.4 0.5 DC 10 0.3 0.3 0.35 0.35 15 0.25 0.25 0.3 0.3 Aluminium Alloy Si<5% GL 20 0.2 0.2 0.25 0.25 (A6061, A7075 etc) 5 0.3 0.3 0.35 0.35 0.75 DC 10 0.25 0.25 0.3 0.3 15 0.2 0.2 0.25 0.25 20 0.15 0.15 0.2 0.2 5 0.25 0.3 0.35 0.35 DC (Slot) 10 0.2 0.25 0.3 0.3 15 0.15 0.2 0.25 0.25 20 0.1 0.15 0.2 0.2 5 0.35 0.4 0.4 0.4 0.25 DC 10 0.3 0.35 0.35 0.35 15 0.25 0.3 0.3 0.3 20 0.2 0.25 0.25 0.25 5 0.35 0.35 0.4 0.4 0.5 DC 10 0.3 0.3 0.35 0.35 Aluminium Alloy 15 0.25 0.25 0.3 0.3 (AC4B etc) 5%10% 5 0.3 0.3 0.35 0.35 0.75 DC 10 0.25 0.25 0.3 0.3 15 0.2 0.2 0.25 0.25 20 0.15 0.15 0.2 0.2 5 0.25 0.3 0.35 0.35 DC (Slot) 10 0.2 0.25 0.3 0.3 15 0.15 0.2 0.25 0.25 20 0.1 0.15 0.2 0.2 S 5 0.1 0.12 0.12 0.25 DC 10 0.1 0.12 0.12 15 0.1 0.12 0.12 20 0.1 0.12 0.12 5 0.1 0.12 0.12 0.5 DC 10 0.1 0.12 0.12 Titanium Alloy GLA 15 0.1 0.12 0.12 (Ti-6Ai-4V etc) 20 0.1 0.1 5 0.1 0.12 0.12 0.75 DC 10 0.1 0.12 0.12 15 0.1 0.12 0.12 20 0.1 0.1 DC (Slot) 5 0.08 0.08 0.08 10 0.05 0.08 0.08 - Note 1) The above cutting conditions are determined based on high workpiece and machine rigidity, where no vibration occurred. If vibrations occur make adjustments according to the machining conditions. Note 2) Note, vibrations may occur in the following conditions. When using long tool overhang. When pocket machining corner radii. When the workpiece has poor clamping rigidity or when the machine rigidity or workpiece rigidity is low, vibrations can occur easily, if so, reduce cutting conditions such as width and depth of cut and feed per tooth. M146
