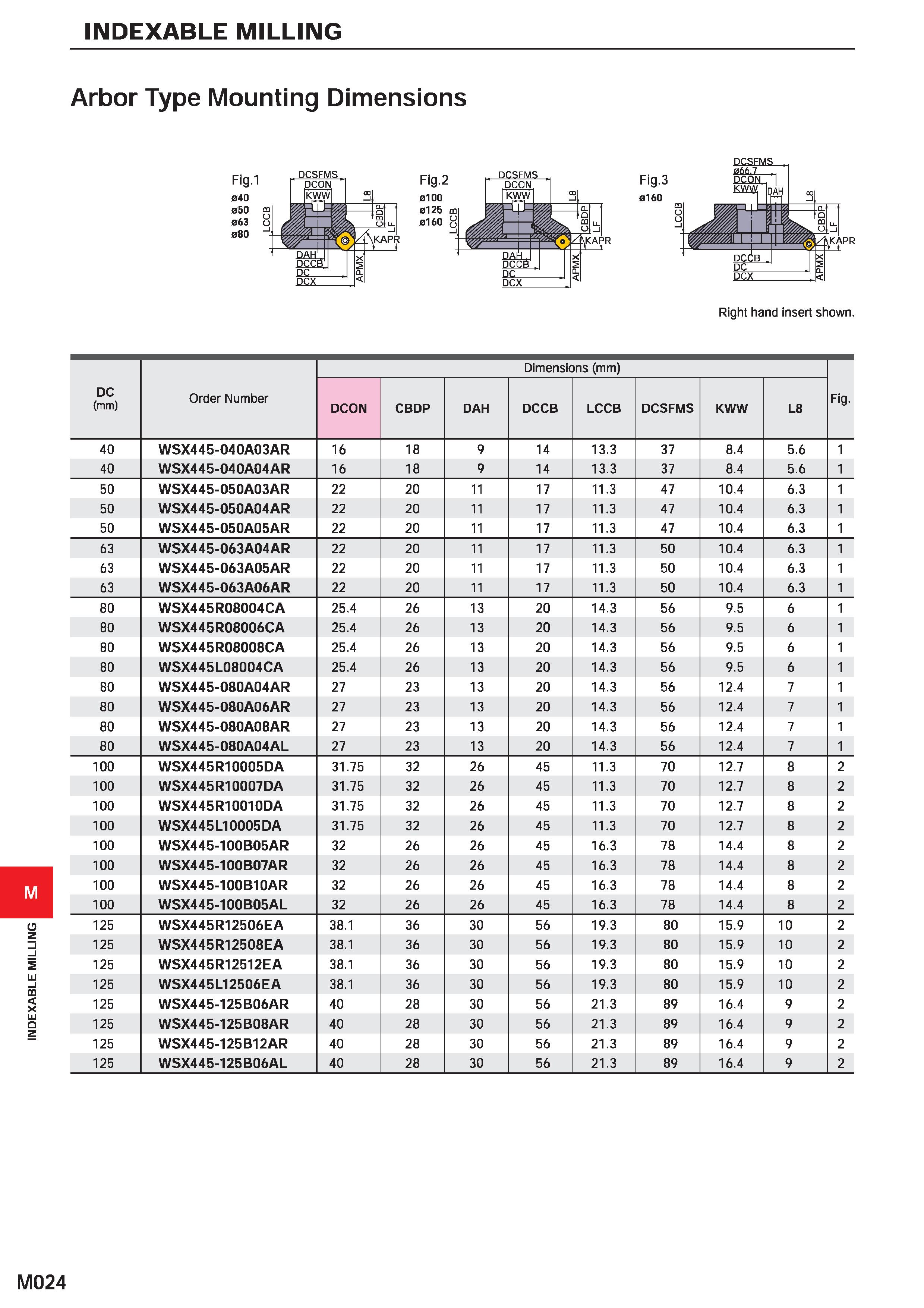

INDEXABLE MILLING INDEXABLE MILLING Arbor Type Mounting Dimensions Right hand insert shown. DC (mm) Order Number Dimensions (mm) Fig. DCON CBDP DAH DCCB LCCB DCSFMS KWW L8 40 WSX445-040A03AR 16 18 9 14 13.3 37 8.4 5.6 1 40 WSX445-040A04AR 16 18 9 14 13.3 37 8.4 5.6 1 50 WSX445-050A03AR 22 20 11 17 11.3 47 10.4 6.3 1 50 WSX445-050A04AR 22 20 11 17 11.3 47 10.4 6.3 1 50 WSX445-050A05AR 22 20 11 17 11.3 47 10.4 6.3 1 63 WSX445-063A04AR 22 20 11 17 11.3 50 10.4 6.3 1 63 WSX445-063A05AR 22 20 11 17 11.3 50 10.4 6.3 1 63 WSX445-063A06AR 22 20 11 17 11.3 50 10.4 6.3 1 80 WSX445 R08004C A 25.4 26 13 20 14.3 56 9.5 6 1 80 WSX445 R08006CA 25.4 26 13 20 14.3 56 9.5 6 1 80 WSX445 R08008CA 25.4 26 13 20 14.3 56 9.5 6 1 80 WSX445 L08004CA 25.4 26 13 20 14.3 56 9.5 6 1 80 WSX445-080A04AR 27 23 13 20 14.3 56 12.4 7 1 80 WSX445-080A06AR 27 23 13 20 14.3 56 12.4 7 1 80 WSX445-080A08AR 27 23 13 20 14.3 56 12.4 7 1 80 WSX445-080A04AL 27 23 13 20 14.3 56 12.4 7 1 100 WSX445R10005DA 31.75 32 26 45 11.3 70 12.7 8 2 100 WSX445R10007DA 31.75 32 26 45 11.3 70 12.7 8 2 100 WSX445R10010DA 31.75 32 26 45 11.3 70 12.7 8 2 100 WSX445L10005DA 31.75 32 26 45 11.3 70 12.7 8 2 100 WSX445-100B05AR 32 26 26 45 16.3 78 14.4 8 2 100 WSX445-100B07AR 32 26 26 45 16.3 78 14.4 8 2 100 WSX445-100B10AR 32 26 26 45 16.3 78 14.4 8 2 100 WSX445-100B05AL 32 26 26 45 16.3 78 14.4 8 2 125 WSX445R12506EA 38.1 36 30 56 19.3 80 15.9 10 2 125 WSX445R12508EA 38.1 36 30 56 19.3 80 15.9 10 2 125 WSX445R12512EA 38.1 36 30 56 19.3 80 15.9 10 2 125 WSX445L12506EA 38.1 36 30 56 19.3 80 15.9 10 2 125 WSX445-125 B06AR 40 28 30 56 21.3 89 16.4 9 2 125 WSX445-125B08AR 40 28 30 56 21.3 89 16.4 9 2 125 WSX445-125 B12 AR 40 28 30 56 21.3 89 16.4 9 2 125 WSX445-125 B06AL 40 28 30 56 21.3 89 16.4 9 2 M024
