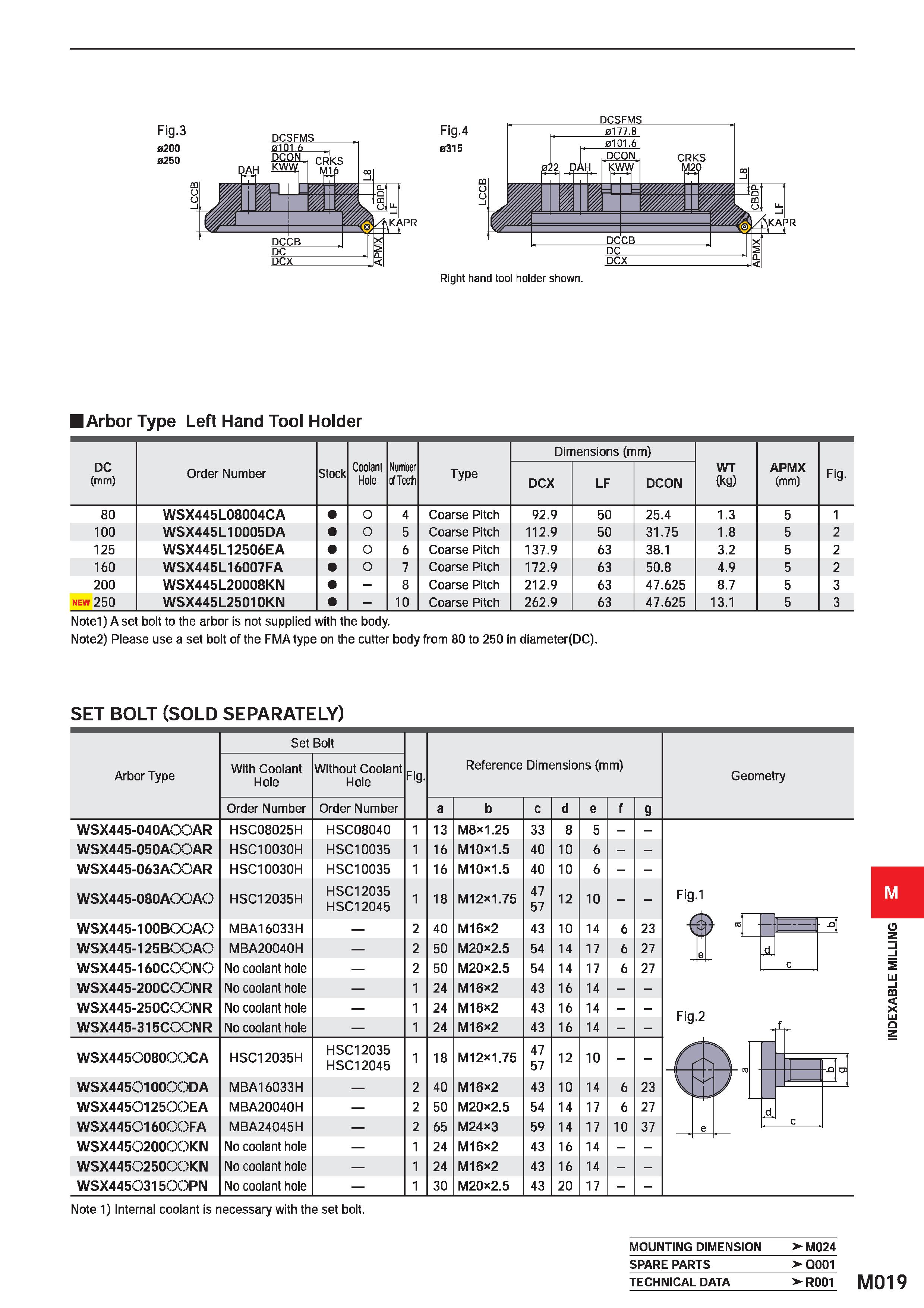

Right hand tool holder shown. Arbor Type Left Hand Tool Holder DC (mm) Order Number Stock Coolant Hole Number of Teeth Type Dimensions (mm) WT (kg) APMX (mm) Fig- DCX LF DCON 80 WSX445L08004C A O 4 Coarse Pitch 92.9 50 25.4 1.3 5 1 100 WSX445L10005DA O 5 Coarse Pitch 112.9 50 31.75 1.8 5 2 125 WSX445L12506EA O 6 Coarse Pitch 137.9 63 38.1 3.2 5 2 160 WSX445L16007FA O 7 Coarse Pitch 172.9 63 50.8 4.9 5 2 200 WSX445L20008KN - 8 Coarse Pitch 212.9 63 47.625 8.7 5 3 NEW 250 WSX445L25010KN - 10 Coarse Pitch 262.9 63 47.625 13.1 5 3 Notel) A set bolt to the arbor is not supplied with the body. Note2) Please use a set bolt of the FMAtype on the cutter body from 80 to 250 in diameter(DC). SET BOLT (SOLD SEPARATELY) Arbor Type Set Bolt Fig. Reference Dimensions (mm) With Coolant Hole Without Coolant Hole Order Number Order Number a b c d e f 9 WSX445-040AOO A R HSC08025H HSC08040 1 13 M8x1.25 33 8 5 - - WSX445-050AOOAR HSC10030H HSC10035 1 16 M10x1.5 40 10 6 - - WSX445-063AQGAR HSC10030H HSC10035 1 16 M10 1.5 40 10 6 - - WSX445-080AOOAO HSC12035H HSC12035 HSC12045 1 18 M12x1.75 47 57 12 10 - - WSX445-100BQGAG MBA16033H 2 40 M16x2 43 10 14 6 23 WSX445-125BOOAO MBA20040H 2 50 M20x2.5 54 14 17 6 27 WSX445-160COONO No coolant hole 2 50 M20x2.5 54 14 17 6 27 WSX445-200CCX3NR No coolant hole 1 24 M16x2 43 16 14 - - WSX445-25000GNR No coolant hole 1 24 M16x2 43 16 14 - - WSX445-315CCX5NR No coolant hole 1 24 M16x2 43 16 14 - - WSX445008000C A HSC12035H HSC12035 HSC12045 1 18 M12x1.75 47 57 12 10 - - WSX445G100QGDA MBA16033H 2 40 M16x2 43 10 14 6 23 WSX4450125GOEA MBA20040H 2 50 M20x2.5 54 14 17 6 27 WSX445G16000FA MBA24045H 2 65 M24x3 59 14 17 10 37 WSX445020000KN No coolant hole 1 24 M16x2 43 16 14 - - WSX445025000KN No coolant hole 1 24 M16x2 43 16 14 - - WSX4450315GOPIM No coolant hole 1 30 M20x2.5 43 20 17 - - Geometry Flg.1 Fig.2 Note 1) Internal coolant is necessary with the set bolt. MOUNTING DIMENSION >M024 SPARE PARTS > Q001 TECHNICAL DATA > R001 M019 INDEXABLE MILLING
