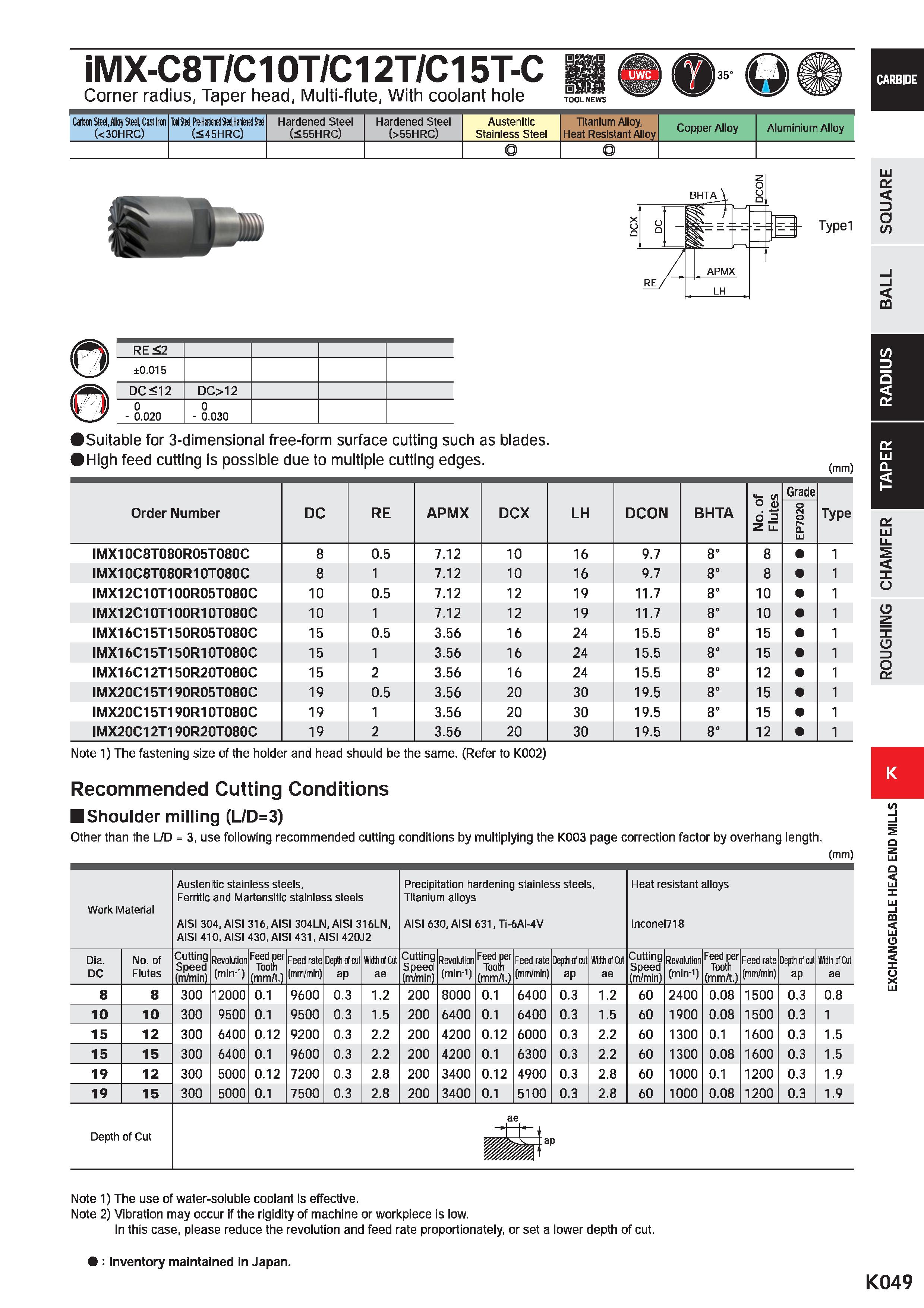

iMX-C8T/C10T/C12T/C15T-C Corner radius, Taper head, Multi-flute, With coolant hole Carbon Steel, Alloy Steel, Cast Iron (<30HRC) Tool Steel, MMiri Steel.Hardened Steel (545HRC) Hardened Steel (S55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy LU OL D o CO m RE ,2 ±0.015 DC 12 DC>12 0 - 0.020 0 - 0.030 Suitable for 3-dimensional free-form surface cutting such as blades. H-ligh feed cutting is possible due to multiple cutting edges. (mm) Order Number DC RE APMX DCX LH DCON BHTA No. of 1 Flutes Grade o tN O a LU Type IMX10C8T080R05T080C 8 0.5 7.12 10 16 9.7 8° 8 1 IMX10C8T080R10T080C 8 1 7.12 10 16 9.7 8° 8 1 IMX12C10T100R05T080C 10 0.5 7.12 12 19 11.7 8° 10 1 IMX12C10T100R10T080C 10 1 7.12 12 19 11.7 8° 10 1 IMX16C15T150R05T080C 15 0.5 3.56 16 24 15.5 8° 15 1 IMX16C15T150R10T080C 15 1 3.56 16 24 15.5 8° 15 1 IMX16C12T150R20T080C 15 2 3.56 16 24 15.5 8° 12 1 IMX20C15T190R05T080C 19 0.5 3.56 20 30 19.5 8° 15 1 IMX20C15T190R10T080C 19 1 3.56 20 30 19.5 8° 15 1 IMX20C12T190R20T080C 19 2 3.56 20 30 19.5 8° 12 1 I o 0 z 1 o 3 o cx Note 1) The fastening size of the holder and head should be the same. (Refer to K002) Recommended Cutting Conditions Shoulder milling (L/D=3) Other than the L7D = 3, use following recommended cutting conditions by multiplying the K003 page correction factor by overhang length. Work Material Austenitic stainless steels, Ferritic and Martensitic stainless steels AISI 304, AISI 316, AISI 304LN, AISI 316LN, AISI 410, AISI 430, AISI 431, AISI 420J2 Precipitation hardening stainless steels, Titanium alloys AISI 630, AISI 631, Ti-6AI-4V Heat resistant alloys lnconel718 Dia. DC No. of Flutes Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth ol cut ap Width ol Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Hof Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 8 8 300 12000 0.1 9600 0.3 1.2 200 8000 0.1 6400 0.3 1.2 60 2400 0.08 1500 0.3 0.8 10 10 300 9500 0.1 9500 0.3 1.5 200 6400 0.1 6400 0.3 1.5 60 1900 0.08 1500 0.3 1 15 12 300 6400 0.12 9200 0.3 2.2 200 4200 0.12 6000 0.3 2.2 60 1300 0.1 1600 0.3 1.5 15 15 300 6400 0.1 9600 0.3 2.2 200 4200 0.1 6300 0.3 2.2 60 1300 0.08 1600 0.3 1.5 19 12 300 5000 0.12 7200 0.3 2.8 200 3400 0.12 4900 0.3 2.8 60 1000 0.1 1200 0.3 1.9 19 15 300 5000 0.1 7500 0.3 2.8 200 3400 0.1 5100 0.3 2.8 60 1000 0.08 1200 0.3 1.9 (mm) o CO o z o X Depth of Cut m rap Note 1) The use of water-soluble coolant is effective. Note 2) Vibration may occur if the rigidity of machine or workpiece is low. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. : Inventory maintained in Japan. K049
