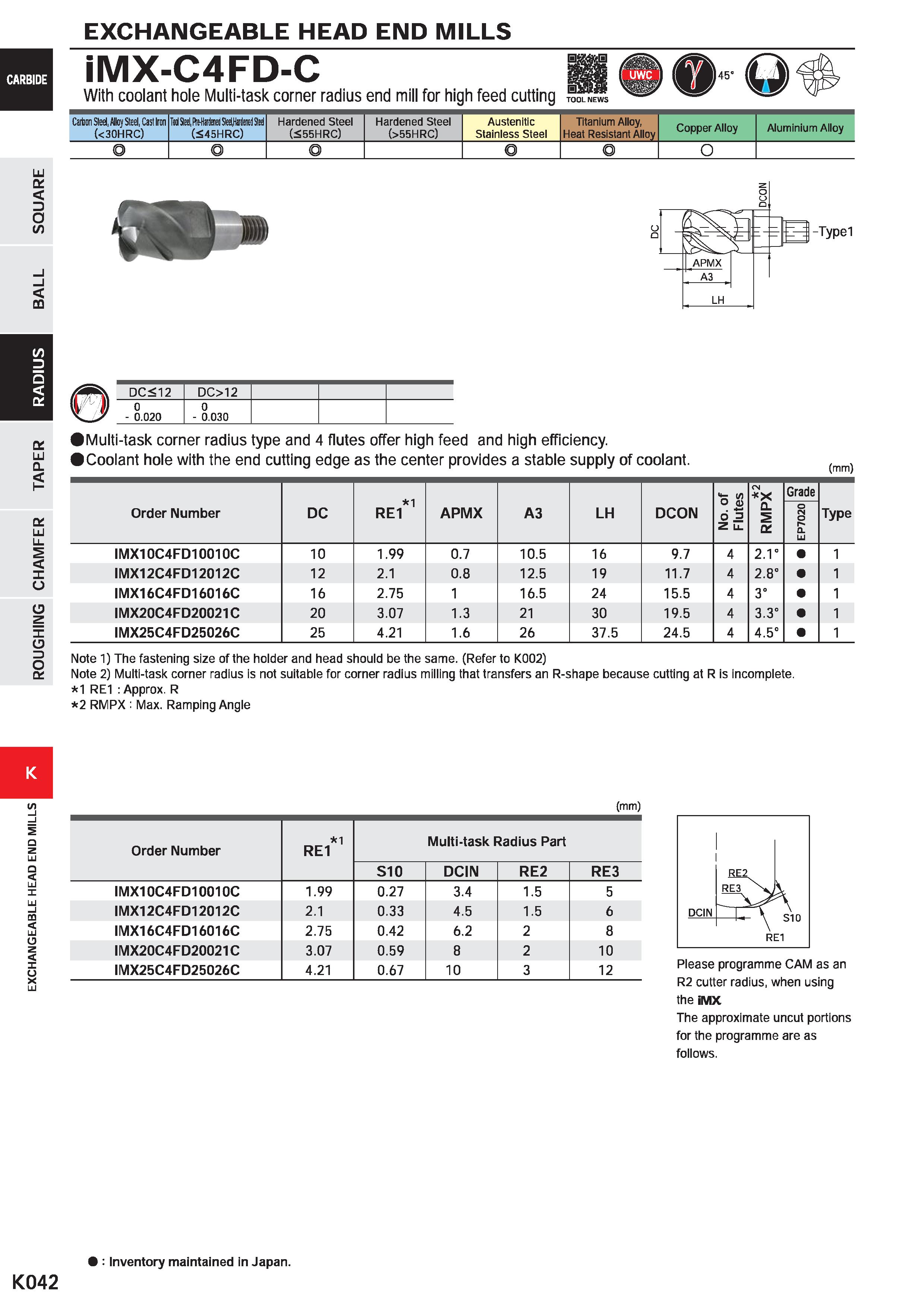

EXCHANGEABLE HEAD END MILLS iMX-C4FD-C With coolant hole Multi-task corner radius end mill for high feed cutting TOOLNEWS Carbon Steel, Alloy Steel, Cast Iron (<30HRC) Tod SM, iWWml SW.Hardened Steel (545HRC) Hardened Steel ( 55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy LU D o /> m cc LU Q. X 0 CD z 1 CD 3 o a. DC<12 DC>12 0 - 0.020 0 - 0.030 HVIulti-task corner radius type and 4 flutes offer high feed and high efficiency. \Coolant hole with the end cutting edge as the center provides a stable supply of coolant. (mm) Order Number DC 1 RE1 APMX A3 LH DCON No. of 1 Flutes CN X CL 5 0£ Grade o (N O r- 0. LU Type IMX10C4FD10010C 10 1.99 0.7 10.5 16 9.7 4 2.1° 1 IMX12C4FD12012C 12 2.1 0.8 12.5 19 11.7 4 2.8° 1 IMX16C4FD16016C 16 2.75 1 16.5 24 15.5 4 3° 1 IMX20C4FD20021C 20 3.07 1.3 21 30 19.5 4 3.3° 1 IMX25C4FD25026C 25 4.21 1.6 26 37.5 24.5 4 4.5° 1 Note 1) The fastening size of the holder and head should be the same. (Refer to K002) Note 2) Multi-task corner radius is not suitable for corner radius milling that transfers an R-shape because cutting at R is incomplete. 1 RE1 : Approx. R 2 RMPX : Max. Ramping Angle 2 Q Z LU Ld X LU l CO LU o z X u X LU (mm) Order Number 1 RE1 Multi-task Radius Part S10 DCIN RE2 RE3 IMX10C4FD10010C 1.99 0.27 3.4 1.5 5 IMX12C4FD12012C 2.1 0.33 4.5 1.5 6 IMX16C4FD16016C 2.75 0.42 6.2 2 8 IMX20C4FD20021C 3.07 0.59 8 2 10 IMX25C4FD25026C 4.21 0.67 10 3 12 Please programme CAM as an R2 cutter radius, when using the iMX The approximate uncut portions for the programme are as follows. K042 : Inventory maintained in Japan.
