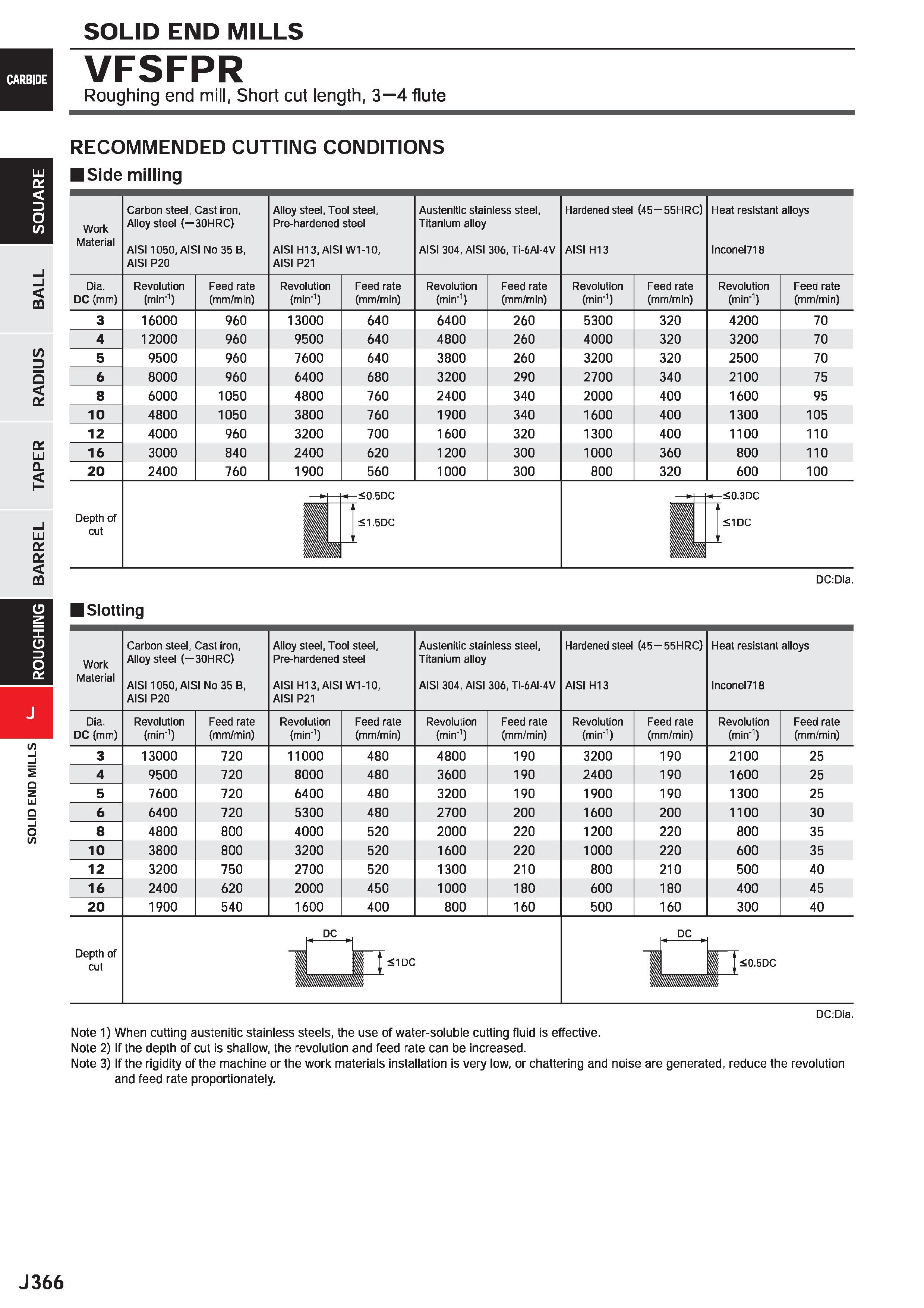

SOLID END MILLS VFSFPR Roughing end mill, Short cut length, 3 4 flute RECOMMENDED CUTTING CONDITIONS Side milling Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AISI 1050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13.AISI W1-10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Hardened steel (45 55HRC) AISI H13 Heat resistant alloys lnconel718 m /> D O O' Ld CL Dia. DC (mm) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) 10 12 16 20 16000 12000 9500 8000 6000 4800 4000 3000 2400 960 960 960 960 1050 1050 960 840 760 13000 9500 7600 6400 4800 3800 3200 2400 1900 640 640 640 680 760 760 700 620 560 6400 4800 3800 3200 2400 1900 1600 1200 1000 260 260 260 290 340 340 320 300 300 5300 4000 3200 2700 2000 1600 1300 1000 800 320 320 320 340 400 400 400 360 320 4200 3200 2500 2100 1600 1300 1100 800 600 70 70 70 75 95 105 110 110 100 Depth of cut 0.3DC 1DC DC: Dia. I Slotting Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1-10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Hardened steel (45 55HRC) AISI H13 Heat resistant alloys lnconel718 Dia. DC (mm) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) 3 13000 720 11000 480 4800 190 3200 190 2100 25 4 9500 720 8000 480 3600 190 2400 190 1600 25 5 7600 720 6400 480 3200 190 1900 190 1300 25 6 6400 720 5300 480 2700 200 1600 200 1100 30 8 4800 800 4000 520 2000 220 1200 220 800 35 10 3800 800 3200 520 1600 220 1000 220 600 35 12 3200 750 2700 520 1300 210 800 210 500 40 16 2400 620 2000 450 1000 180 600 180 400 45 20 1900 540 1600 400 800 160 500 160 300 40 Depth of cut DC DC WMMIMi 1 if t 1DC WHi 1 if t 0.5DC 1 Ld in DC: Dia. Note 1) When cutting austenitic stainless steels, the use of water-soluble cutting fluid is effective. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 3) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. J366
