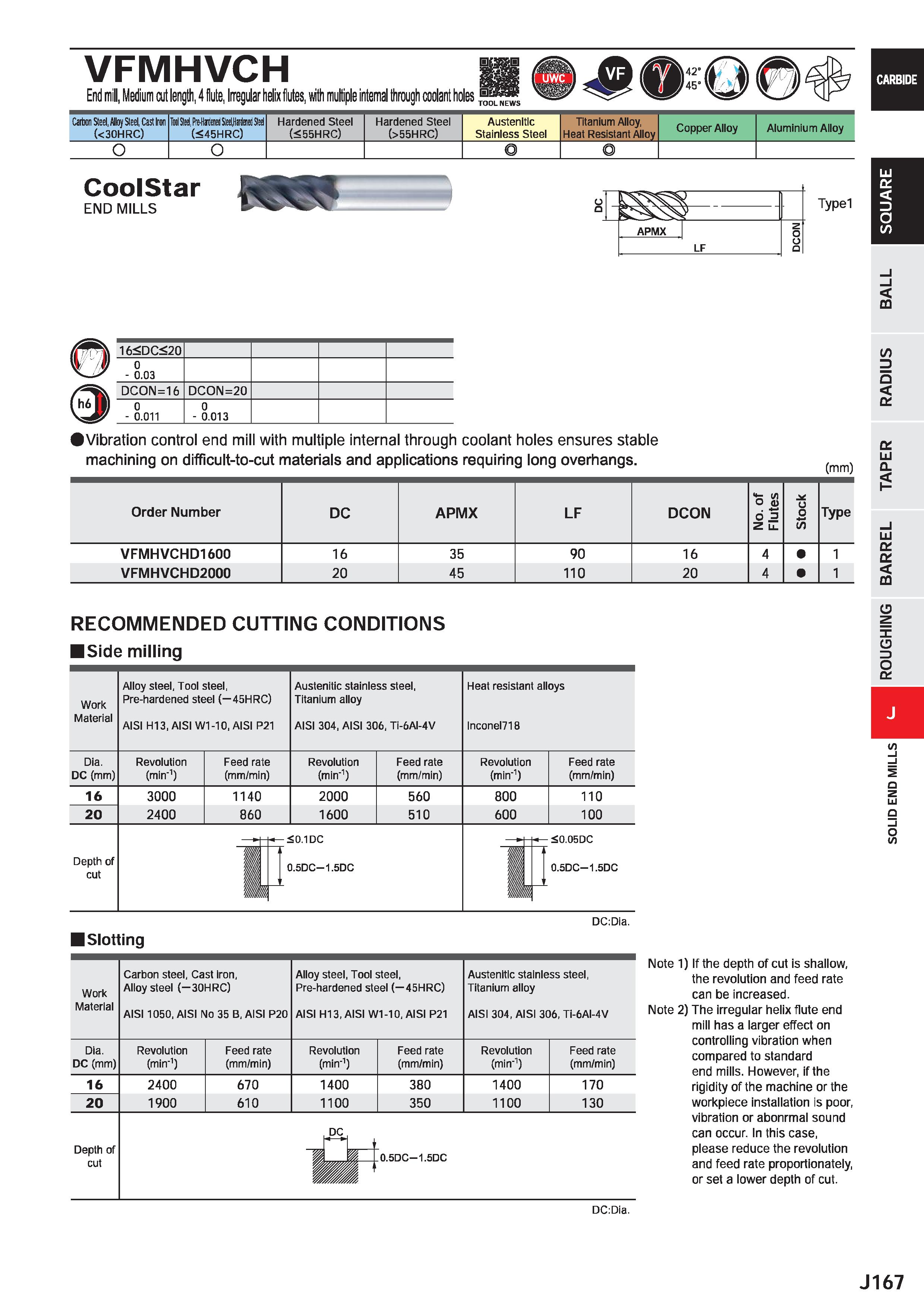

VFMHVCH End mill, Medium cut length, 4 flute, Irregular helix flutes, with multiple internal through coolant holes TOOL NEWS Carbon Steel, Alloy Steel, Cast Iron (<30HRC) Tool Steel, Pre-Hjrdeneil Sieel.HaritoiedSteel (<45HRC) Hardened Steel (<55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy CoolStar END MILLS APMX LF DCON Typel m I Vibration control end mill with multiple internal through coolant holes ensures stable machining on difficult-to-cut materials and applications requiring long overhangs. (mm) Order Number DC APMX LF DCON O u O 3 Z U. + in Type VFMHVCHD1600 16 35 90 16 4 1 VFMHVCHD2000 20 45 110 20 4 1 /> 2 Q dc cc LlI CL LU cc cc m RECOMMENDED CUTTING CONDITIONS Side milling Work Material Dia. DC (mm) 16 20 Depth of cut Alloy steel, Tool steel, Pre-hardened steel ( 45HRC) AISI H13, AISI W1-10, AISI P21 Revolution (min'1) 3000 2400 Feed rate (mm/min) 1140 860 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Revolution (min'1) 2000 1600 Feed rate (mm/min) 560 510 0.1 DC 0.5DC 1.5DC Heat resistant alloys lnconel718 Revolution (min'1) 800 600 Feed rate (mm/min) 110 100 0.05 DC 0.5DC 1.5DC DC:Dia. I Slotting Work Material Carbon steel, Cast Iron, Alloy steel (-30HRC) AISI 1050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel ( 45HRC) AISI H13, AISI W1 -10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Dia. DC (mm) Revolution (min-1) Feed rate (mm/min) Revolution (min'1) Feed rate (mm/min) 16 2400 670 1400 380 1400 170 20 1900 610 1100 350 1100 130 Depth of cut 0.5DC 1.5DC Note 1) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 2) The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the workpiece installation is poor, vibration or abonrmal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. O 3 o DC O in DC:Dia. J167
