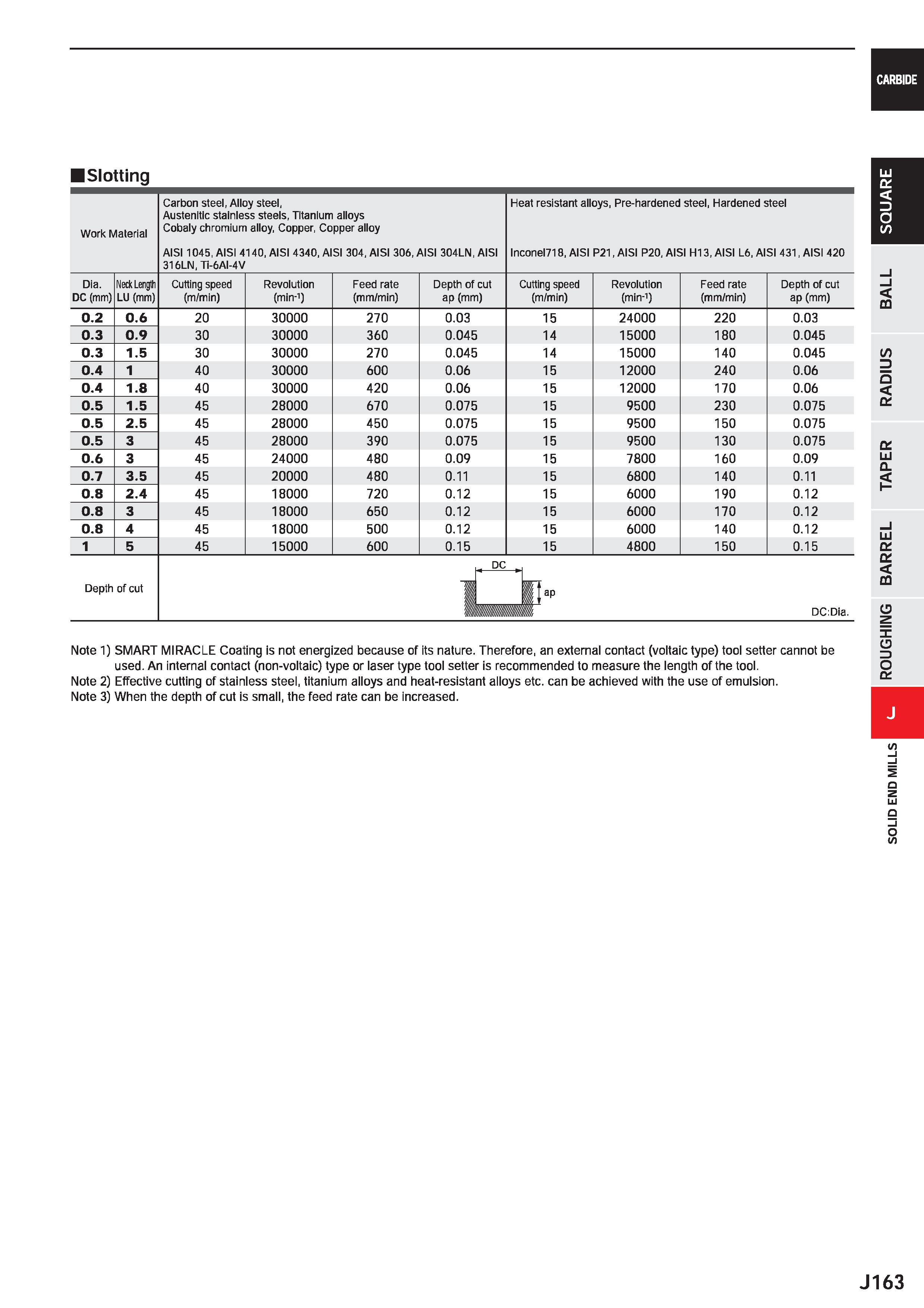

CARBIDE Slotting Work Material Carbon steel, Alloy steel, Austenitic stainless steels, Titanium alloys Cobaly chromium alloy, Copper, Copper alloy Heat resistant alloys, Pre-hardened steel, Hardened steel AISI 1045, AISI 4140, AISI 4340, AISI 304, AISI 306, AISI 304LN, AISI 316LN, Ti-6AI-4V lnconel718, AISI P21, AISI P20, AISI H13, AISI L6, AISI 431, AISI 420 Dia. DC (mm) Neck Length LU (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) 0.2 0.6 20 30000 270 0.03 15 24000 220 0.03 0.3 0.9 30 30000 360 0.045 14 15000 180 0.045 0.3 1.5 30 30000 270 0.045 14 15000 140 0.045 0.4 1 40 30000 600 0.06 15 12000 240 0.06 0.4 1.8 40 30000 420 0.06 15 12000 170 0.06 0.5 1.5 45 28000 670 0.075 15 9500 230 0.075 0.5 2.5 45 28000 450 0.075 15 9500 150 0.075 0.5 3 45 28000 390 0.075 15 9500 130 0.075 0.6 3 45 24000 480 0.09 15 7800 160 0.09 0.7 3.5 45 20000 480 0.11 15 6800 140 0.11 0.8 2.4 45 18000 720 0.12 15 6000 190 0.12 0.8 3 45 18000 650 0.12 15 6000 170 0.12 0.8 4 45 18000 500 0.12 15 6000 140 0.12 1 5 45 15000 600 0.15 15 4800 150 0.15 DC Note 1) SMART MIRACLE Coating is not energized because of its nature. Therefore, an external contact (voltaic type) tool setter cannot be used. An internal contact (non-voltaic) type or laser type tool setter is recommended to measure the length of the tool. Note 2) Effective cutting of stainless steel, titanium alloys and heat-resistant alloys etc. can be achieved with the use of emulsion. Note 3) When the depth of cut is small, the feed rate can be increased. LU D o 10 a LlI Q J163 ROUGHING BARREL TAPER RADIUS BALL
