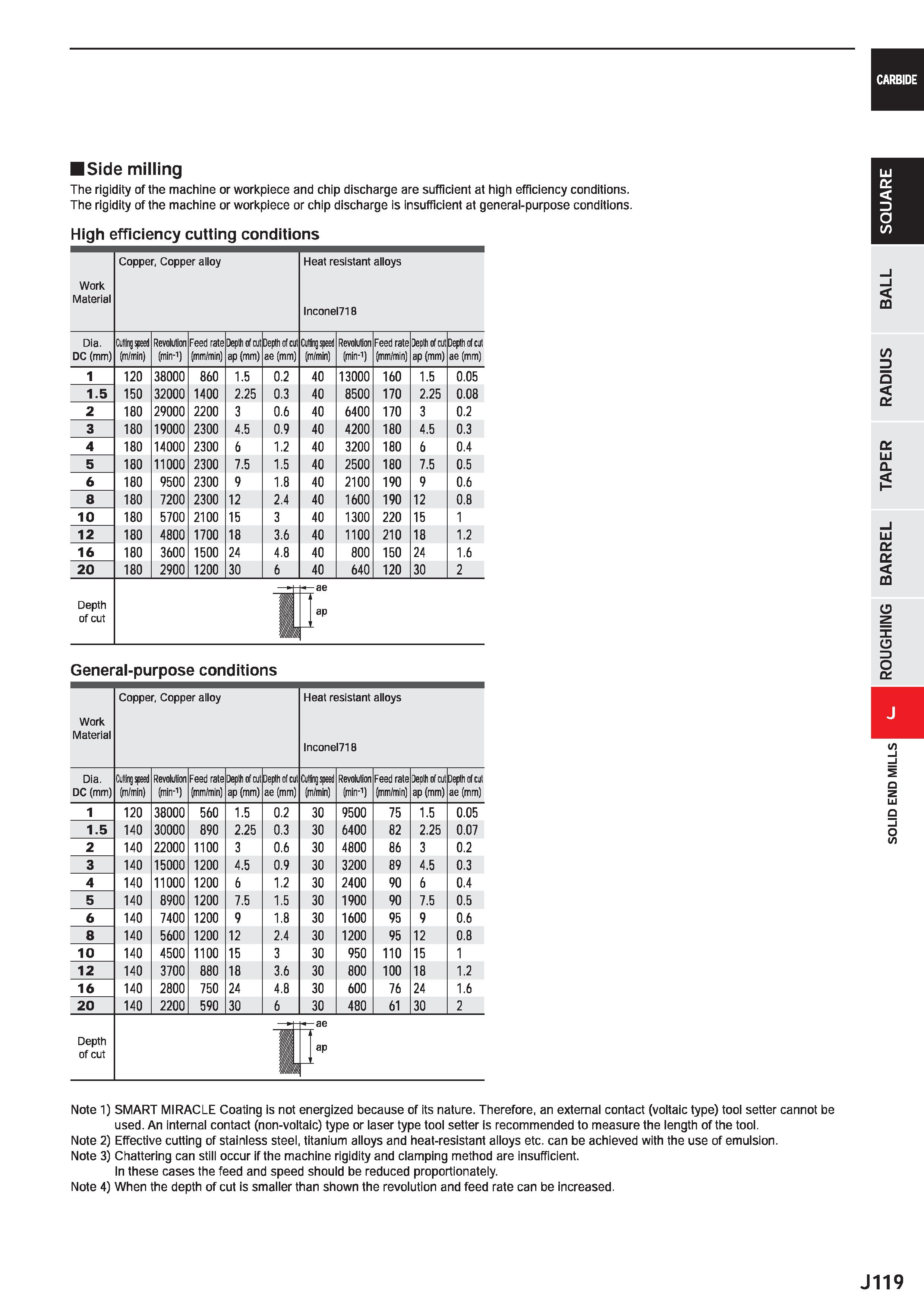

CARBIDE Side milling The rigidity of the machine or workpiece and chip discharge are sufficient at high efficiency conditions. The rigidity of the machine or workpiece or chip discharge is insufficient at general-purpose conditions. High efficiency cutting conditions Work Material Copper, Copper alloy Heat resistant alloys lncone 718 Dia. DC (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth ol cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) 1 120 38000 860 1.5 0.2 40 13000 160 1.5 0.05 1.5 150 32000 1400 2.25 0.3 40 8500 170 2.25 0.08 2 180 29000 2200 3 0.6 40 6400 170 3 0.2 3 180 19000 2300 4.5 0.9 40 4200 180 4.5 0.3 4 180 14000 2300 6 1.2 40 3200 180 6 0.4 5 180 11000 2300 7.5 1.5 40 2500 180 7.5 0.5 6 180 9500 2300 9 1.8 40 2100 190 9 0.6 8 180 7200 2300 12 2.4 40 1600 190 12 0.8 10 180 5700 2100 15 3 40 1300 220 15 1 12 180 4800 1700 18 CO 40 1100 210 18 1.2 16 180 3600 1500 24 4.8 40 800 150 24 1.6 20 180 2900 1200 30 6 40 640 120 30 2 Depth of cut + ae ap General-purpose conditions Work Material Copper, Copper alloy Heat resistant alloys lncone 718 Dia. DC (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) 1 120 38000 560 1.5 0.2 30 9500 75 1.5 0.05 1.5 140 30000 890 2.25 0.3 30 6400 82 2.25 0.07 2 140 22000 1100 3 0.6 30 4800 86 3 0.2 3 140 15000 1200 4.5 0.9 30 3200 89 4.5 0.3 4 140 11000 1200 6 1.2 30 2400 90 6 0.4 5 140 8900 1200 7.5 1.5 30 1900 90 7.5 0.5 6 140 7400 1200 9 1.8 30 1600 95 9 0.6 8 140 5600 1200 12 2.4 30 1200 95 12 0.8 10 140 4500 1100 15 3 30 950 110 15 1 12 140 3700 880 18 3.6 30 800 100 18 1.2 16 140 2800 750 24 4.8 30 600 76 24 1.6 20 140 2200 590 30 6 30 480 61 30 2 Depth of cut t ae i ap m /> 2 Q dc dc LlI a. LU dc DC m 3 o cx o in Note 1) SMART MIRACLE Coating is not energized because of its nature. Therefore, an external contact (voltaic type) tool setter cannot be used. An internal contact (non-voltaic) type or laser type tool setter is recommended to measure the length of the tool. Note 2) Effective cutting of stainless steel, titanium alloys and heat-resistant alloys etc. can be achieved with the use of emulsion. Note 3) Chattering can still occur if the machine rigidity and clamping method are insufficient. In these cases the feed and speed should be reduced proportionately. Note 4) When the depth of cut is smaller than shown the revolution and feed rate can be increased. J119
