720 Каталог MITSUBISHI 2020 Режущий инструмент Фрезы Резцы Сверла Пластины Стр.J098

Каталог MITSUBISHI 2020 Режущий инструмент для станков Стр. J098 0720 Lab2u

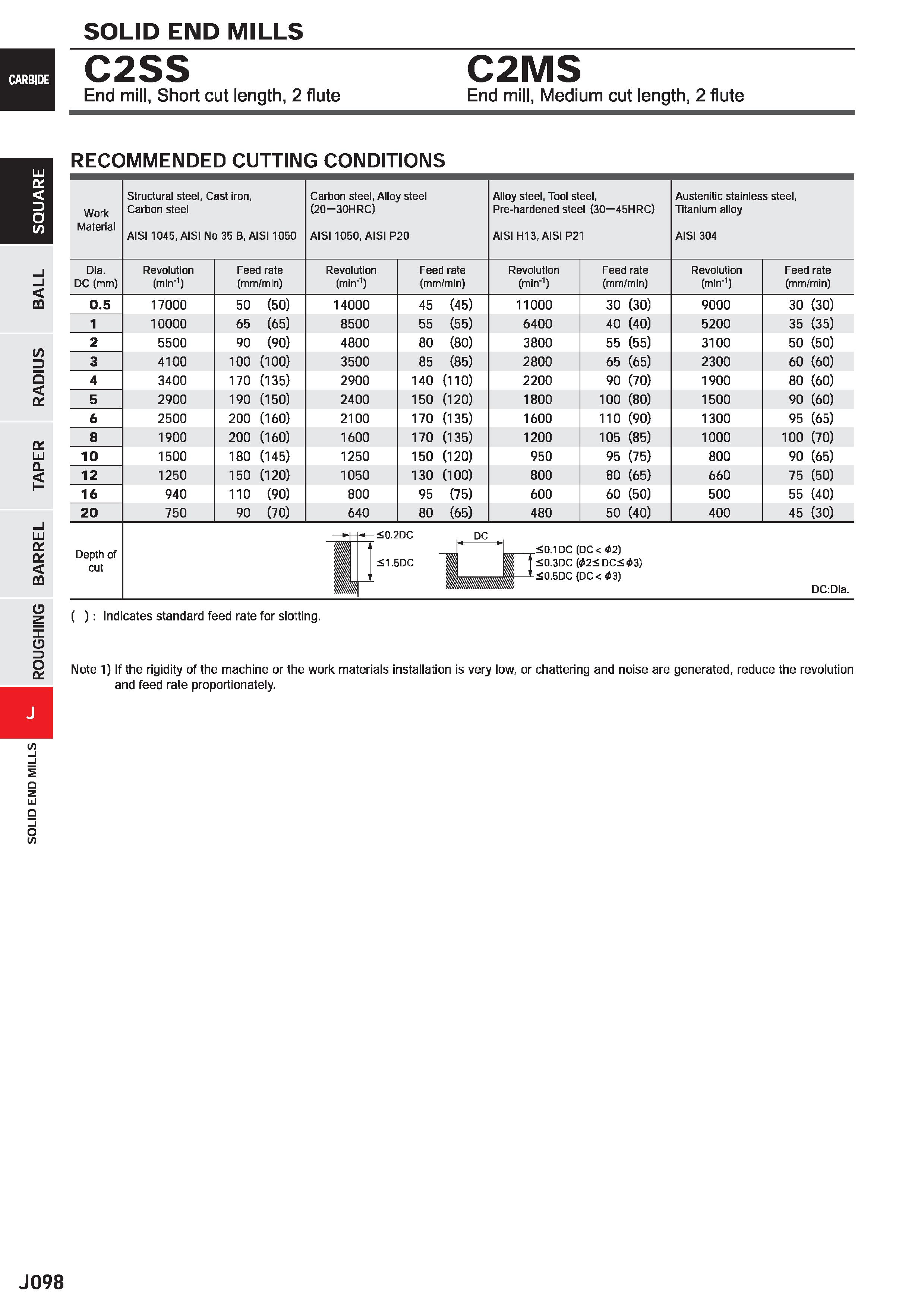

SOLID END MILLS C2SS C2MS End mill, Short cut length, 2 flute End mill, Medium cut length, 2 flute RECOMMENDED CUTTING CONDITIONS Work Structural steel, Cast iron, Carbon steel Carbon steel, Alloy steel (20-30HRC) Alloy steel, Tool steel, Pre-hardened steel (30 45HRC) Austenitic stainless steel, Titanium alloy Material AIS11045, AISI No 35 B, AIS11050 AIS11050, AISI P20 AISI H13, AISI P21 AISI 304 Dla. DC (mm) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) 0.5 17000 50 (50) 14000 45 (45) 11000 30 (30) 9000 30 (30) 1 10000 65 (65) 8500 55 (55) 6400 40 (40) 5200 35 (35) 2 5500 90 (90) 4800 80 (80) 3800 55 (55) 3100 50 (50) 3 4100 100 (100) 3500 85 (85) 2800 65 (65) 2300 60 (60) 4 3400 170 (135) 2900 140 (110) 2200 90 (70) 1900 80 (60) 5 2900 190 (150) 2400 150 (120) 1800 100 (80) 1500 90 (60) 6 2500 200 (160) 2100 170 (135) 1600 110 (90) 1300 95 (65) 8 1900 200 (160) 1600 170 (135) 1200 105 (85) 1000 100 (70) 10 1500 180 (145) 1250 150 (120) 950 95 (75) 800 90 (65) 12 1250 150 (120) 1050 130 (100) 800 80 (65) 660 75 (50) 16 940 110 (90) 800 95 (75) 600 60 (50) 500 55 (40) 20 750 90 (70) 640 80 (65) 480 50 (40) 400 45 (30) m /> D O O' Ld CL LU O' 0£ OQ ID z I CD 3 o a. Depth of cut 2DC 1.5DC DC 0.1 DC (DC< 02) 0.3DC 02
