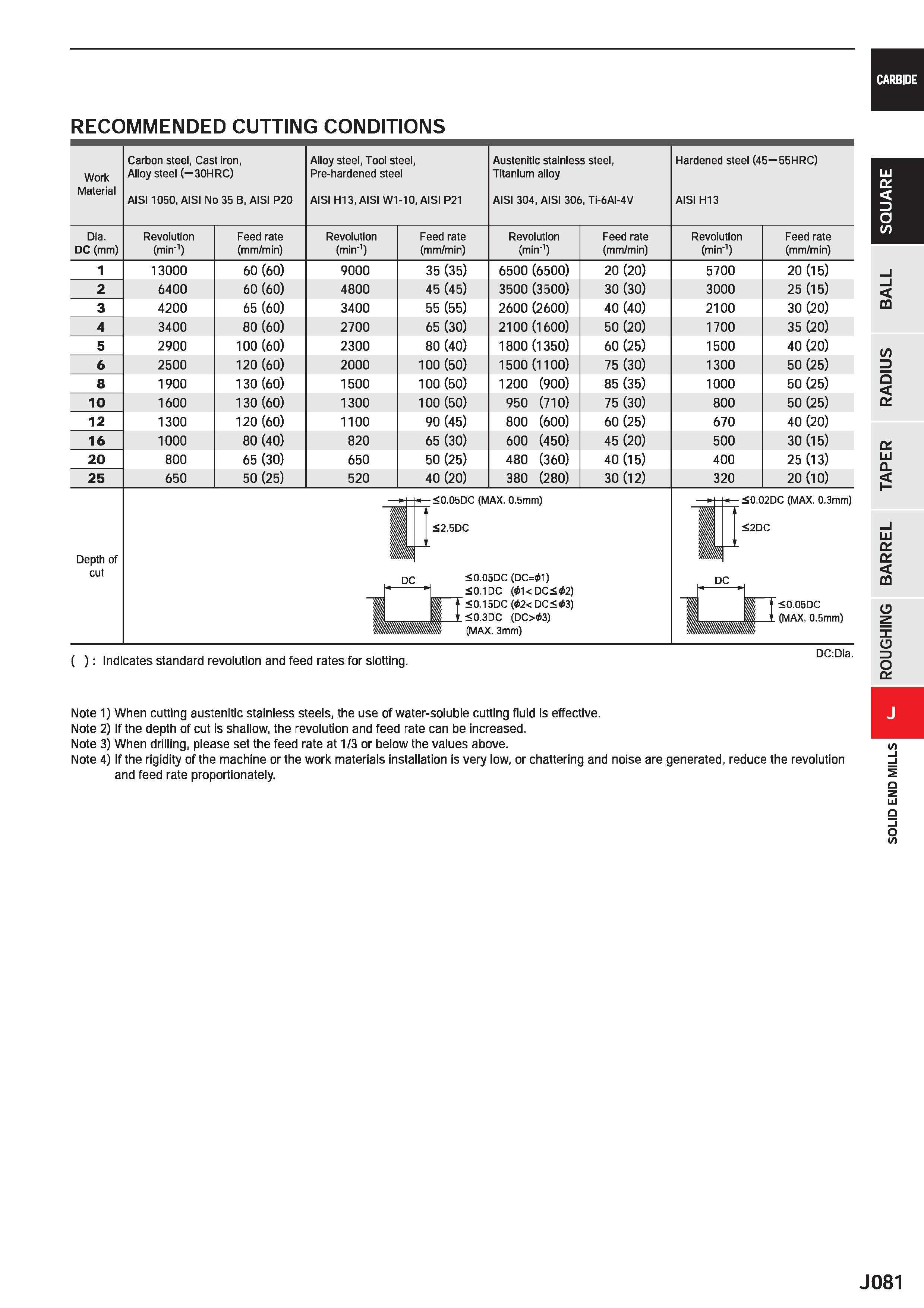

CARBIDE RECOMMENDED CUTTING CONDITIONS Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1 -10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Hardened steel (45-55HRC) AISI H13 Dia. DC (mm) Revolution (min'1) Feed rate (mm/min) 1 13000 60 (60) 9000 35 (35) 6500 (6500) 20 (20) 5700 20 (15) 2 6400 60 (60) 4800 45 (45) 3500 (3500) 30 (30) 3000 25 (15) 3 4200 65 (60) 3400 55 (55) 2600 (2600) 40 (40) 2100 30 (20) 4 3400 80 (60) 2700 65 (30) 2100 (1600) 50 (20) 1700 35 (20) 5 2900 100 (60) 2300 80 (40) 1800 (1350) 60 (25) 1500 40 (20) 6 2500 120 (60) 2000 100 (50) 1500 (1100) 75 (30) 1300 50 (25) 8 1900 130 (60) 1500 100 (50) 1200 (900) 85 (35) 1000 50 (25) 10 1600 130 (60) 1300 100 (50) 950 (710) 75 (30) 800 50 (25) 12 1300 120 (60) 1100 90 (45) 800 (600) 60 (25) 670 40 (20) 16 1000 80 (40) 820 65 (30) 600 (450) 45 (20) 500 30 (15) 20 800 65 (30) 650 50 (25) 480 (360) 40 (15) 400 25 (13) 25 650 50 (25) 520 40 (20) 380 (280) 30 (12) 320 20 (10) Depth of cut 0.05DC (MAX. 0.5mm) £2.5DC 02DC (MAX. 0.3mm) 2DC 0.05DC (DC= 1) DC 0.1 DC (01 DC 02) P H 0.15DC ( 2< DC<03) j/jj 1 0.05 DC i i 0.3DC (DC> 3) Iffflj HI t (MAX. 0.5mm1 flli (MAX. 3mm) ( ): Indicates standard revolution and feed rates for slotting. DC: Dia. Note 1) When cutting austenitic stainless steels, the use of water-soluble cutting fluid is effective. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 3) When drilling, please set the feed rate at 1/3 or below the values above. Note 4) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. LU D o CO a LlI Q J081 ROUGHING BARREL TAPER RADIUS BALL
