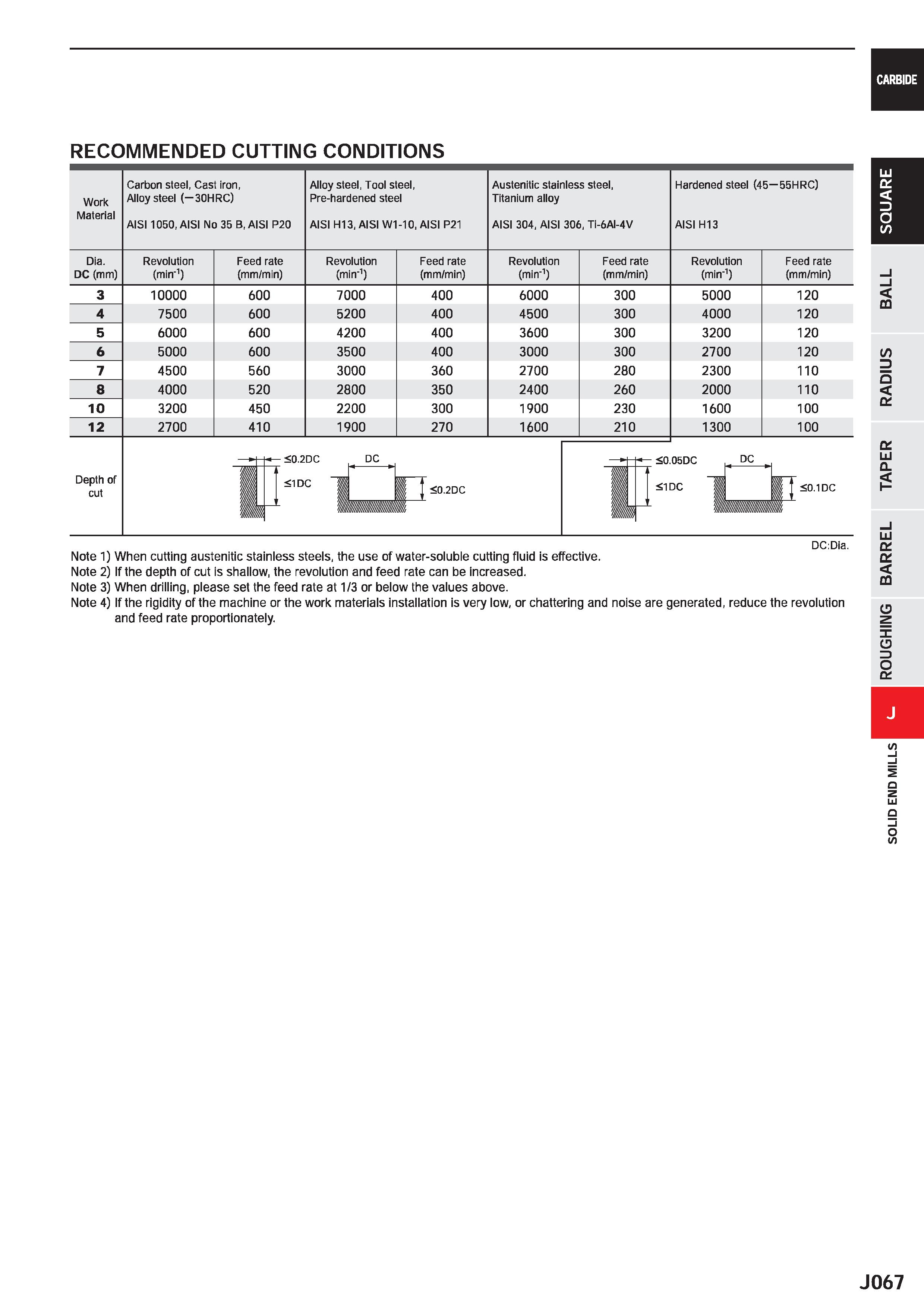

CARBIDE RECOMMENDED CUTTING CONDITIONS Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1-10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Hardened steel (45 55HRC) AISI H13 Dia. DC (mm) Revolution (min-1) Feed rate (mm/min) Revolution (min'1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) 3 10000 600 7000 400 6000 300 5000 120 4 7500 600 5200 400 4500 300 4000 120 5 6000 600 4200 400 3600 300 3200 120 6 5000 600 3500 400 3000 300 2700 120 7 4500 560 3000 360 2700 280 2300 110 8 4000 520 2800 350 2400 260 2000 110 10 3200 450 2200 300 1900 230 1600 100 12 2700 410 1900 270 1600 210 1300 100 m /> 2 Q dc dc LlI CL LU dc DC m 3 o DC Depth of cut 0.2DC 0.1 DC DC: Dia. Note 1) When cutting austenitic stainless steels, the use of water-soluble cutting fluid is effective. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 3) When drilling, please set the feed rate at 1/3 or below the values above. Note 4) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. o in J067
