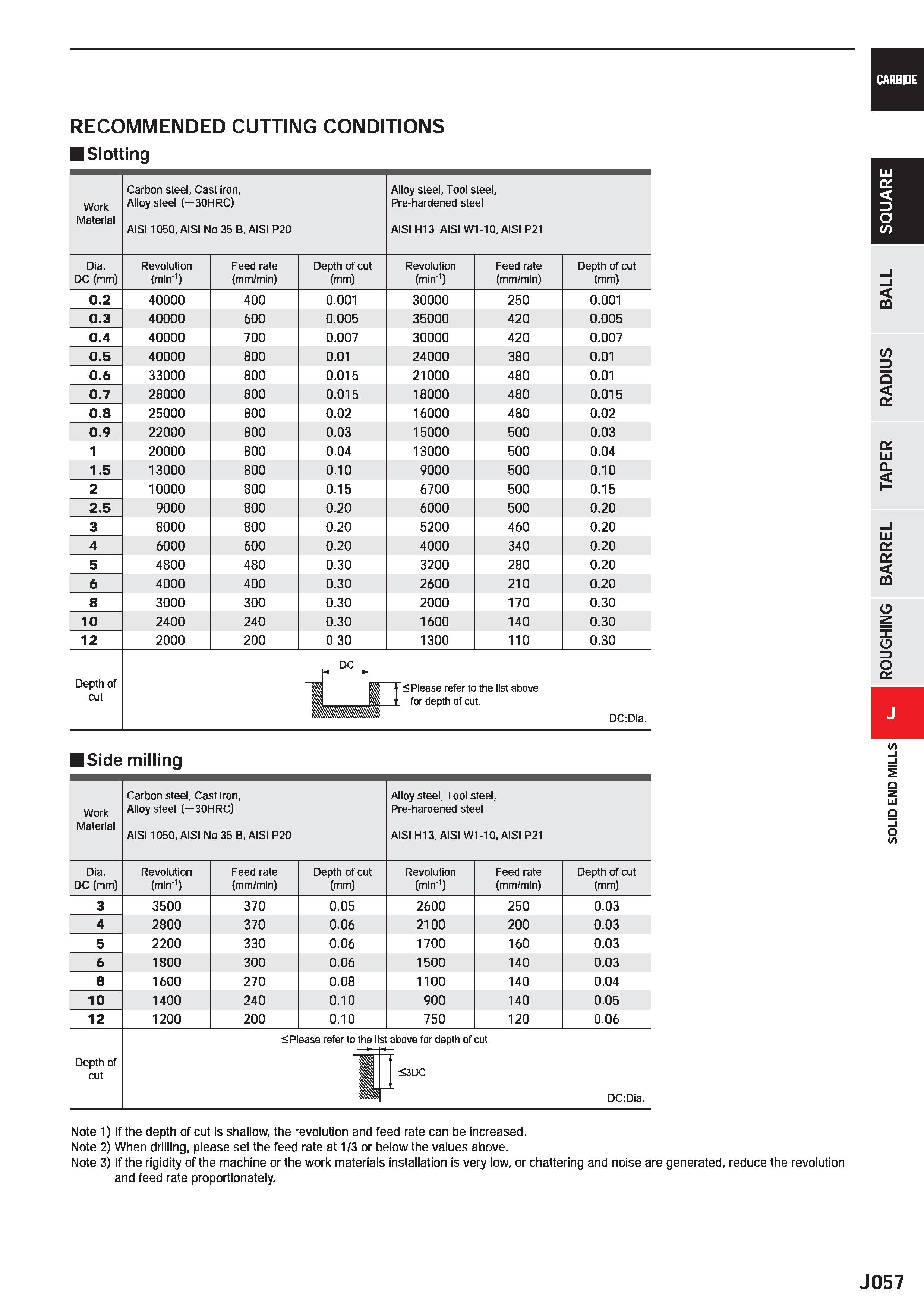

CARBIDE RECOMMENDED CUTTING CONDITIONS Slotting Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI HI 3, AISI W1-10, AISI P21 Dia. DC (mm) Revolution (mln'1) Feed rate (mm/min) Depth of cut (mm) Revolution (mln'1) Feed rate (mm/min) Depth of cut (mm) 0.2 40000 400 0.001 30000 250 0.001 0.3 40000 600 0.005 35000 420 0.005 0.4 40000 700 0.007 30000 420 0.007 0.5 40000 800 0.01 24000 380 0.01 0.6 33000 800 0.015 21000 480 0.01 0.7 28000 800 0.015 18000 480 0.015 0.8 25000 800 0.02 16000 480 0.02 0.9 22000 800 0.03 15000 500 0.03 1 20000 800 0.04 13000 500 0.04 1.5 13000 800 0.10 9000 500 0.10 2 10000 800 0.15 6700 500 0.15 2.5 9000 800 0.20 6000 500 0.20 3 8000 800 0.20 5200 460 0.20 4 6000 600 0.20 4000 340 0.20 5 4800 480 0.30 3200 280 0.20 6 4000 400 0.30 2600 210 0.20 8 3000 300 0.30 2000 170 0.30 10 2400 240 0.30 1600 140 0.30 12 2000 200 0.30 1300 110 0.30 Depth of cut DC Ilf Wj Please refer to the list above 8 JB for depth of cut. S DC:Dla. Side milling Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1 -10, AISI P21 Dia. DC (mm) Revolution (min'1) Feed rate (mm/min) Depth of cut (mm) Revolution (min'1) Feed rate (mm/min) Depth of cut (mm) 3 3500 370 0.05 2600 250 0.03 4 2800 370 0.06 2100 200 0.03 5 2200 330 0.06 1700 160 0.03 6 1800 300 0.06 1500 140 0.03 8 1600 270 0.08 1100 140 0.04 10 1400 240 0.10 900 140 0.05 12 1200 200 0.10 750 120 0.06 Depth of cut p ease refer to the lis above for depth of cut. DC:Dia. Wm 3DC LU OL D o CO a LlI a Note 1) If the depth of cut is shallow, the revolution and feed rate can be increased, Note 2) When drilling, please set the feed rate at 1/3 or below the values above. Note 3) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. J057 ROUGHING BARREL TAPER RADIUS BALL
