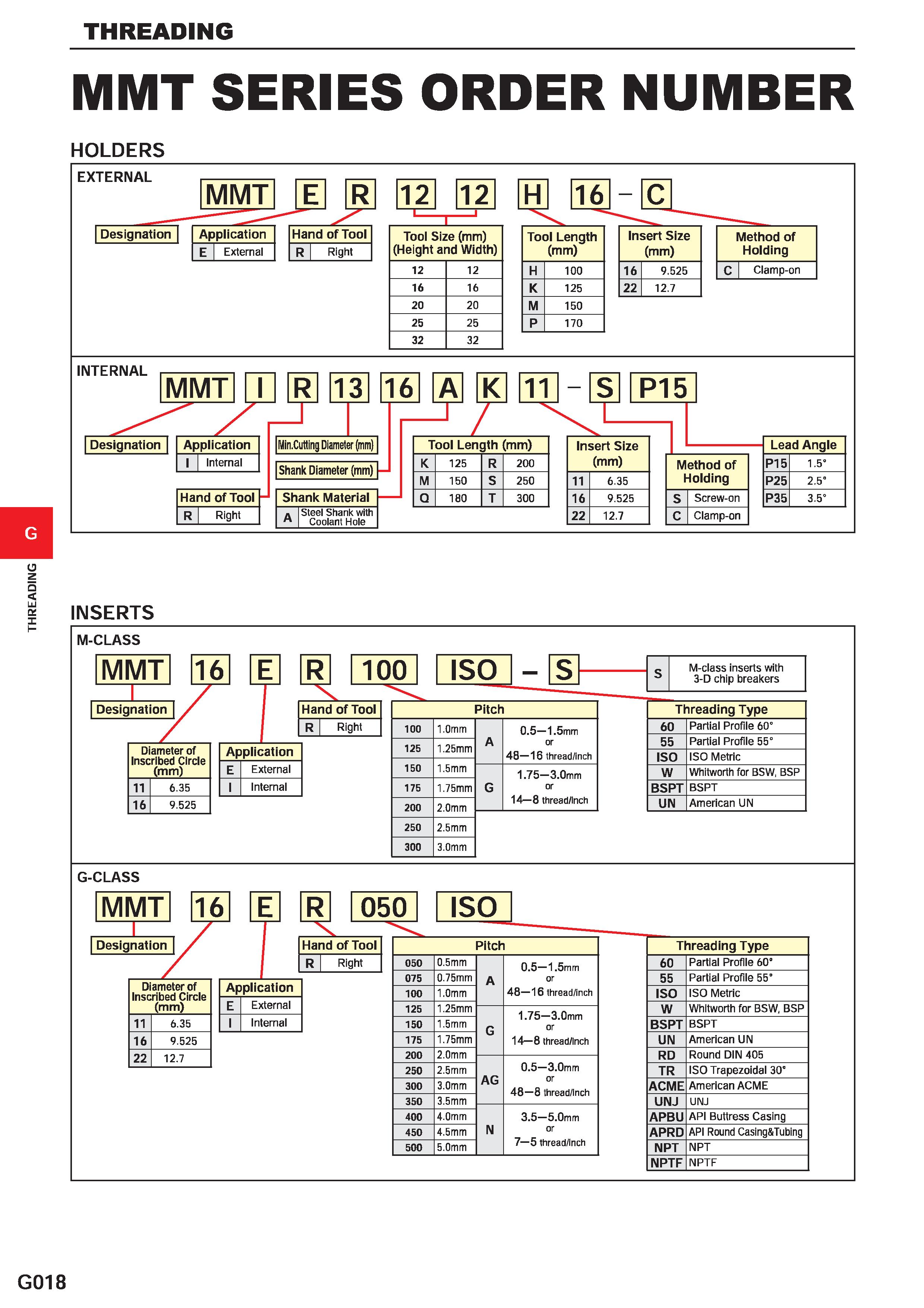

THREADING THREADING MMT SERIES ORDER NUMBER HOLDERS G INSERTS M-CLASS I Designation Diameter of Inscribed Circle (mm) 11 6.35 16 9.525 MMT 16 E R 100 ISO Hand of Tool R Right Application E External I Internal Pitch 100 1.0mm 125 1.25mm 150 1.5mm 175 1.75mm 200 2.0mm 250 2.5mm 300 3.0mm 0.5 1.5mm or 48 16 thread/inch 1.75 3.0mm or 14 8 thread/inch M-class inserts with 3-D chip breakers Threading Type 60 Partial Profile 60” 55 Partial Profile 55° ISO ISO Metric W Whitworth for BSW, BSP BSPT BSPT UN American UN G-CLASS I Designation Diameter of Inscribed Circle (mm) 11 6.35 16 9.525 22 12.7 MMT 16 E R 050 ISO 3 Hand of Tool R Right Application E External I Internal Pitch 050 075 100 125 150 175 200 250 300 350 400 450 500 0.5mm 0.75mm 1.0mm 1.25mm 1.5mm 1.75mm 2.0mm 2.5mm 3.0mm 3.5mm 4.0mm 4.5mm 5.0mm AG 0.5 1.5mm or 48 16 thread/inch 1.75 3.0mm or 14 8 thread/inch 0.5 3.0mm or 48 8 thread/inch 3.5 5.0mm or 7 5 thread/inch Threading Type 60 Partial Profile 60" 55 Partial Profile 55" ISO ISO Metric W Whitworth for BSW, BSP BSPT BSPT UN American UN RD Round DIN 405 TR ISO Trapezoidal 30' ACME American ACME UNJ UNJ APBU API Buttress Casing APRD API Round Casing&Tubing NPT NPT NPTF NPTF G018
