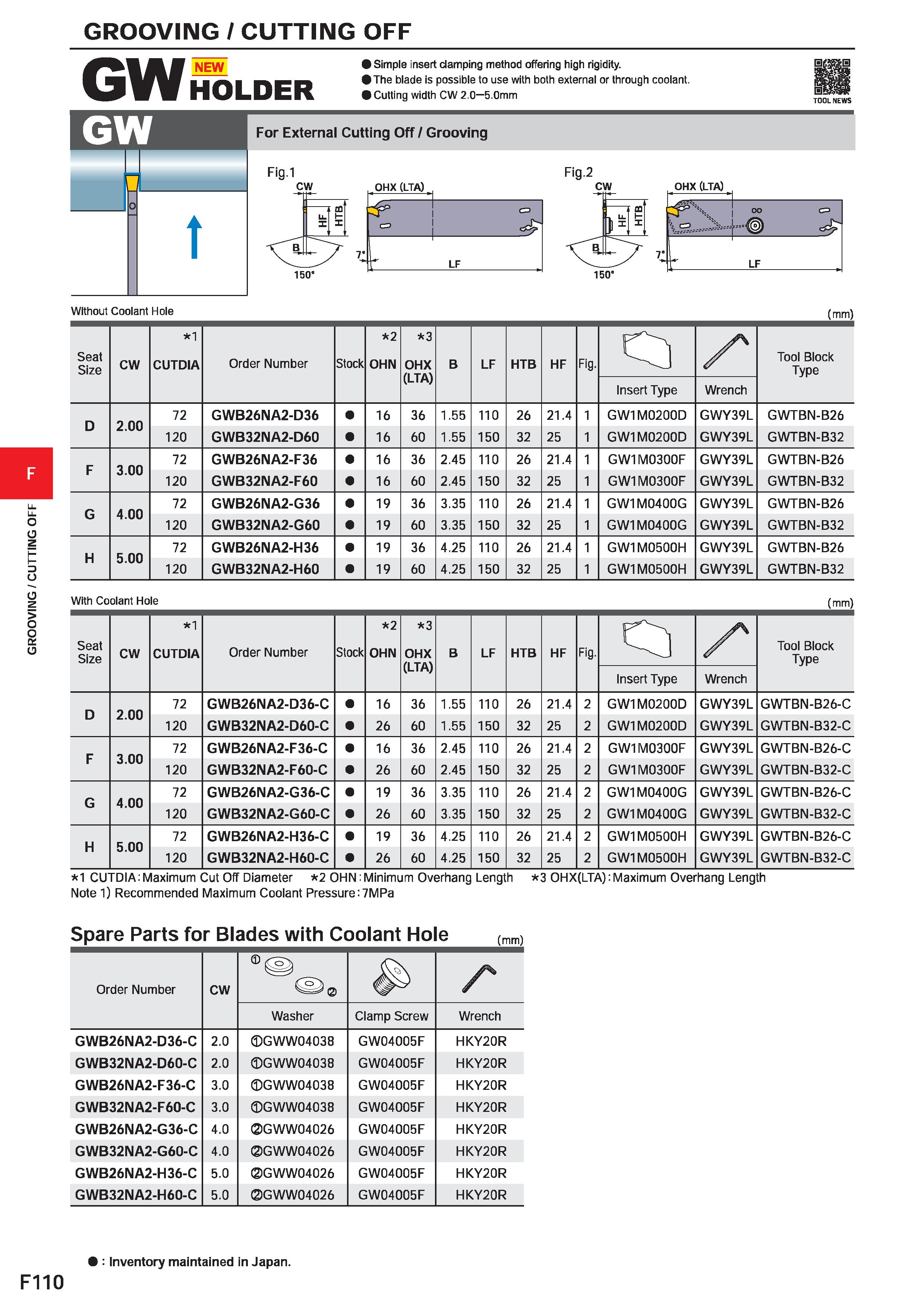

GROOVING / CUTTING OFF GW NEW HOLDER Simple insert clamping method offering high rigidity. The blade is possible to use with both external or through coolant. Cutting width CW 2.0 5.0mm TOOL NEWS t For External Cutting Off / Grooving Fig.1 cw OHX (LTA) Fig.2 cw \ o OHX (LTA) LF Without Coolant Hole (mm) Seat Size CW 1 CUTDIA Order Number Stock 2 OHN 3 OHX (LTA) B LF HTB HF Fig. Q Z' Tool Block Type Insert Type Wrench D 2.00 72 GWB26NA2-D36 16 36 1.55 110 26 21.4 1 GW1M0200D GWY39L GWTBN-B26 120 GWB32NA2-D60 16 60 1.55 150 32 25 1 GW1M0200D GWY39L GWTBN-B32 F 3.00 72 GWB26NA2-F36 16 36 2.45 110 26 21.4 1 GW1M0300F GWY39L GWTBN-B26 120 GWB32NA2-F60 16 60 2.45 150 32 25 1 GW1M0300F GWY39L GWTBN-B32 G 4.00 72 GWB26NA2-G36 19 36 3.35 110 26 21.4 1 GW1M0400G GWY39L GWTBN-B26 120 GWB32NA2-G60 19 60 3.35 150 32 25 1 GW1M0400G GWY39L GWTBN-B32 H 5.00 72 GWB26NA2-H36 19 36 4.25 110 26 21.4 1 GW1M0500H GWY39L GWTBN-B26 120 GWB32NA2-H60 19 60 4.25 150 32 25 1 GW1M0500H GWY39L GWTBN-B32 With Co olant Ho le (mm) Seat Size CW 1 CUTDIA Order Number Stock 2 OHN 3 OHX (LTA) B LF HTB HF Fig. Q Tool Block Type Insert Type Wrench D 2.00 72 GWB26NA2-D36-C 16 36 1.55 110 26 21.4 2 GW1M0200D GWY39L GWTBN-B26-C 120 GWB32NA2-D60-C 26 60 1.55 150 32 25 2 GW1M0200D GWY39L GWTBN-B32-C F 3.00 72 GWB26NA2-F36-C 16 36 2.45 110 26 21.4 2 GW1M0300F GWY39L GWTBN-B26-C 120 GWB32NA2-F60-C 26 60 2.45 150 32 25 2 GW1M0300F GWY39L GWTBN-B32-C G 4.00 72 GWB26NA2-G36-C 19 36 3.35 110 26 21.4 2 GW1M0400G GWY39L GWTBN-B26-C 120 GWB32NA2-G60-C 26 60 3.35 150 32 25 2 GW1M0400G GWY39L GWTBN-B32-C H 5.00 72 GWB26NA2-H36-C 19 36 4.25 110 26 21.4 2 GW1M0500H GWY39L GWTBN-B26-C 120 GWB32NA2-H60-C 26 60 4.25 150 32 25 2 GW1M0500H GWY39L GWTBN-B32-C 1 CUTDIA: Maximum Cut Off Diameter 2 OHN: Minimum Overhang Length 3 OHX(LTA): Maximum Overhang Length Note 1) Recommended Maximum Coolant Pressure :7MPa Order Number CW Z' Washer Clamp Screw Wrench GWB26NA2-D36-C 2.0 GWW04038 GW04005F HKY20R GWB32NA2-D60-C 2.0 GWW04038 GW04005F HKY20R GWB26NA2-F36-C 3.0 GWW04038 GW04005F HKY20R GWB32NA2-F60-C 3.0 GWW04038 GW04005F HKY20R GWB26NA2-G36-C 4.0 0GWWO4O26 GW04005F HKY20R GWB32NA2-G60-C 4.0 0GWWO4O26 GW04005F HKY20R GWB26NA2-H36-C 5.0 0GWWO4O26 GW04005F HKY20R GWB32NA2-H60-C 5.0 0GWWO4O26 GW04005F HKY20R : Inventory maintained in Japan.
