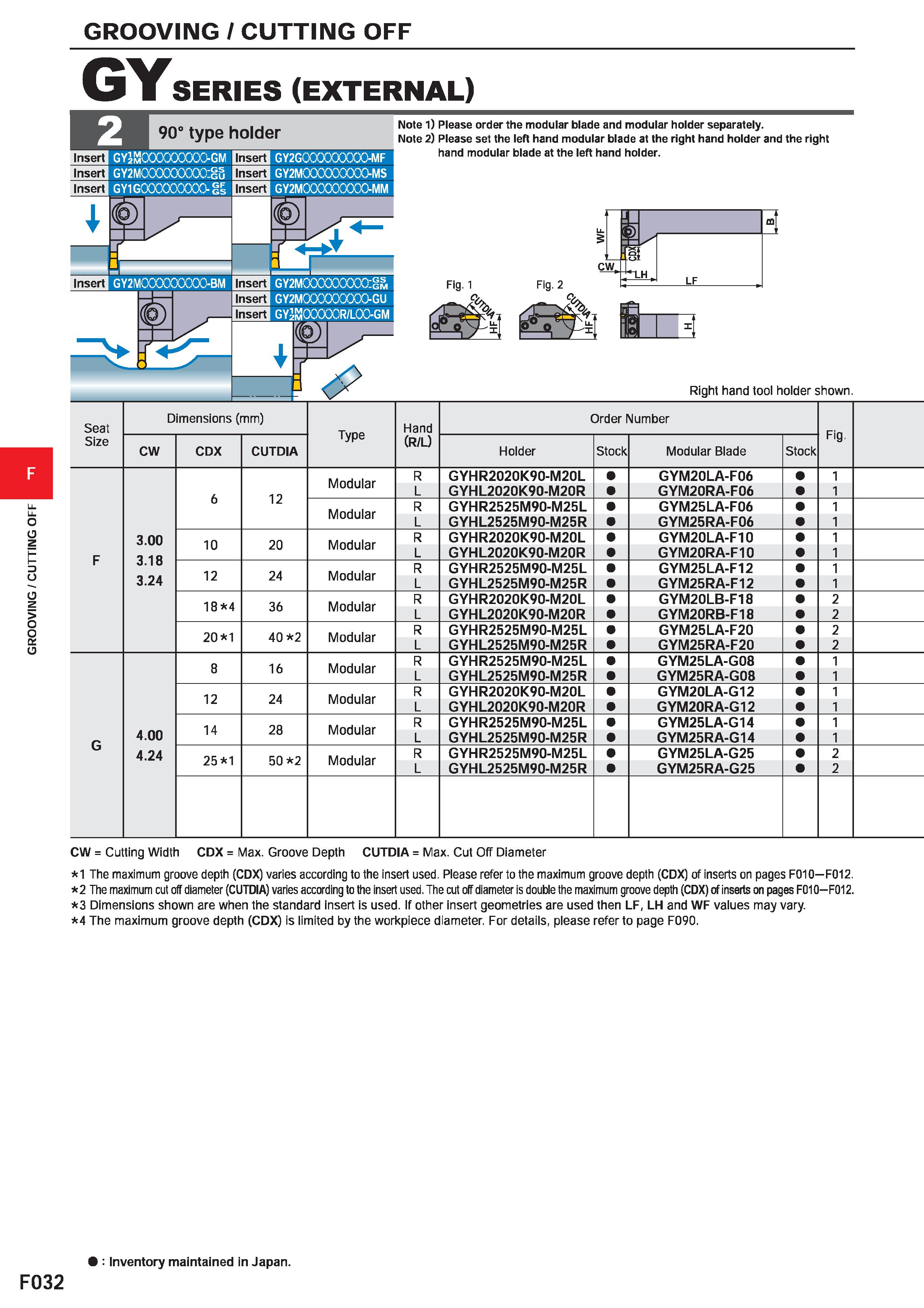

GROOVING / CUTTING OFF GY SERIES (EXTERNAL) 90° type holder Insert Insert Insert GYJmOOOOOOOOO-GM GY2MCXXXXXXXX):gu GY1G000000000- 8s Insert I Insert Insert GY2GOOCOOOOOO-MF GY2M0000CXXX30-MS GY2M000000000-MM Note 1) Please order the modular blade and modular holder separately. Note 2) Please set the left hand modular blade at the right hand holder and the right hand modular blade at the left hand holder. Fig. 1 Fig. 2 LF I Right hand tool holder shown. Seat Size Dimensions (mm) CW CDX CUTDIA Type Hand (R/L) Order Number Holder Stock Modular Blade Stock Fig. Modular 12 R L GYHR2020K90 GYHL2020K90- M20L M20R GYM20LA-F06 GYM20RA-F06 Modular R L GYHR2525M90 GYHL2525M90- M25L M25R GYM25LA-F06 GYM25RA-F06 3.00 3.18 3.24 10 20 Modular R L GYHR2020K90 GYHL2020K90- M20L M20R GYM20LA-F10 GYM20RA-F10 12 24 Modular R L GYHR2525M90 GYHL2525M90- M25L M25R GYM25LA-F12 GYM25RA-F12 18 4 36 Modular R L GYHR2020K90 GYHL2020K90- M20L M20R GYM20LB-F18 GYM20RB-F18 20 1 40 2 Modular R L GYHR2525M90- GYHL2525M90- M25L M25R GYM25LA-F20 GYM25RA-F20 16 Modular R L GYHR2525M90 GYHL2525M90- M25L M25R GYM25LA-G08 GYM25RA-G08 12 24 Modular R L GYHR2020K90 GYHL2020K90- M20L M20R GYM20LA-G12 GYM20RA-G12 4.00 4.24 14 28 Modular R L GYHR2525M90- GYHL2525M90- M25L M25R GYM25LA-G14 GYM25RA-G14 25 1 50 2 Modular R L GYHR2525M90 GYHL2525M90- M25L M25R GYM25LA-G25 GYM25RA-G25 CW = Cutting Width CDX = Max. Groove Depth CUTDIA = Max. Cut Off Diameter 1 The maximum groove depth (CDX) varies according to the insert used. Please refer to the maximum groove depth (CDX) of inserts on pages F010 F012. 2 The maximum cut off diameter (CUTDIA) varies according to the insert used. The cut off diameter is double the maximum groove depth (CDX) of inserts on pages F010-F012. 3 Dimensions shown are when the standard insert is used. If other insert geometries are used then LF, LH and WF values may vary. 4 The maximum groove depth (CDX) is limited by the workpiece diameter. For details, please refer to page F090. : Inventory maintained in Japan.
