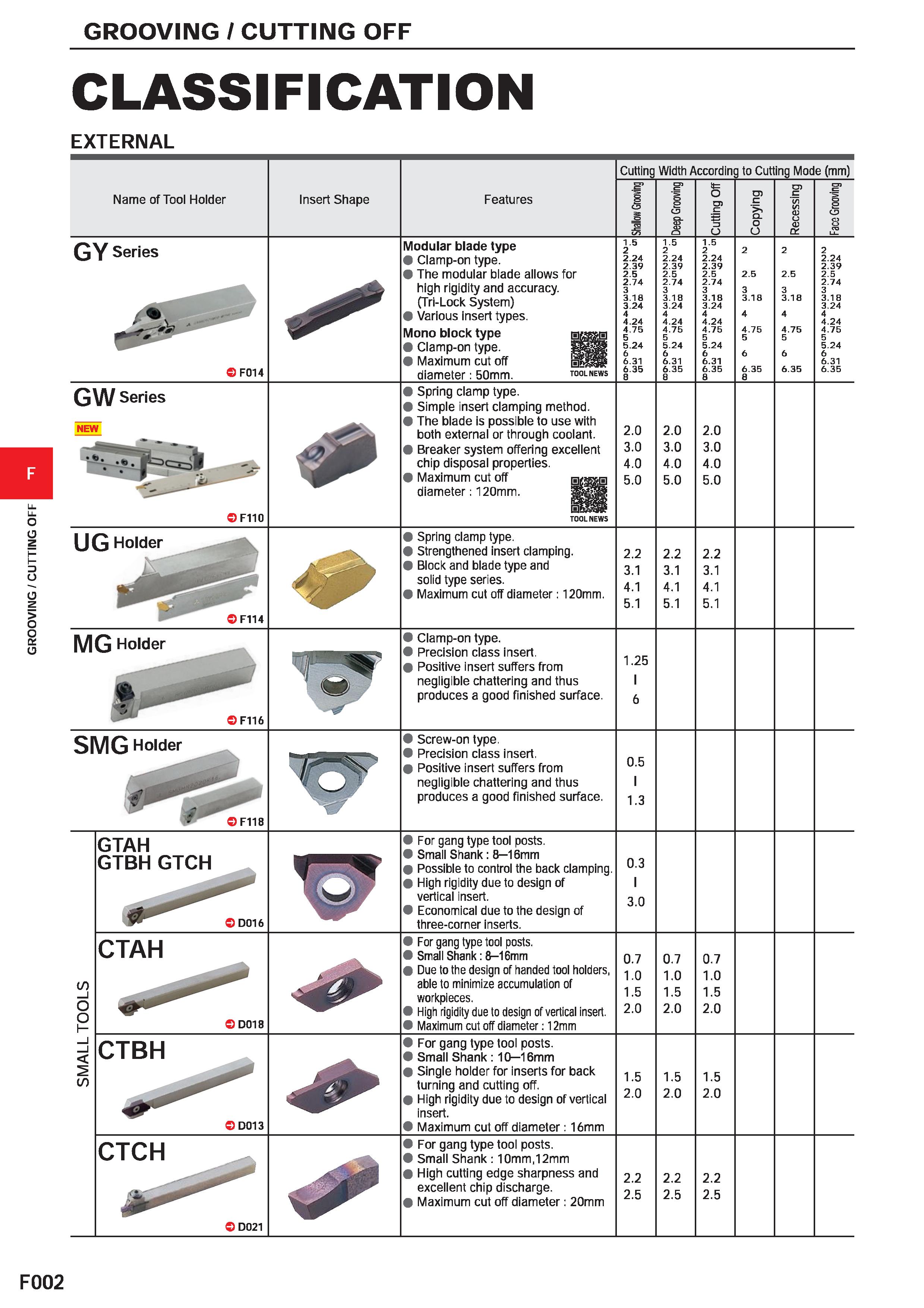

GROOVING / CUTTING OFF GROOVING / CUTTING OFF CLASSIFICATION EXTERNAL Name of Tool Holder Insert Shape Features Cutting Width Accordin to Cutting Mode (mm) i J CO cn c. s o C3 o. a> 3J a o cn c U U) c Q. cn c on V) D (j 13 O' C33 a s 2 O a o CO LL. GY Series F014 Modular blade type Clamp-on type. The modular blade allows for high rigidity and accuracy. (Tri-Lock System) Various insert types. Mono block type BtgSB Clamp-on type. S £ j Maximum cut off Effiiiii diameter: 50mm. toolnews 1.5 2 2.24 2.39 2.5 2.74 3 3.18 3.24 4 4.24 4.75 5 5.24 6 6.31 6.35 8 1.5 2 2.24 2.39 2.5 2.74 3 3.18 3.24 4 4.24 4.75 5 5.24 6 6.31 6.35 8 1.5 2 2.24 2.39 2.5 2.74 3 3.18 3.24 4 4.24 4.75 5 5.24 6 6.31 6.35 8 2 2.5 3 3.18 4 4.75 5 6 6.35 8 2 2.5 3 3.18 4 4.75 5 6 6.35 2 2.24 2.39 2.5 2.74 3 3.18 3.24 4 4.24 4.75 5 5.24 6 6.31 6.35 GW Series NEW F110 Spring clamp type. Simple insert clamping method. The blade is possible to use with both external or through coolant. Breaker system offering excellent chip disposal properties. Maximum cut off 06 0 diameter: 120mm. TOOLNEWS 2.0 3.0 4.0 5.0 2.0 3.0 4.0 5.0 2.0 3.0 4.0 5.0 UG Holder F114 Spring clamp type. Strengthened insert clamping. Block and blade type and solid type series. Maximum cut off diameter: 120mm. 2.2 3.1 4.1 5.1 2.2 3.1 4.1 5.1 2.2 3.1 4.1 5.1 MG Holder Clamp-on type. Precision class insert. Positive insert suffers from negligible chattering and thus produces a good finished surface. 1.25 I 6 SMG Holder F118 Screw-on type. Precision class insert, Positive insert suffers from negligible chattering and thus produces a good finished surface. 0.5 I 1.3 SMALL TOOLS GTAH GTBH GTCH D016 For gang type tool posts. Small Shank: 8 16mm Possible to control the back clamping. High rigidity due to design of vertical insert. Economical due to the design of three-corner inserts. 0.3 I 3.0 CTAH D018 For gang type tool posts. Small Shank: 8-16mm Due to the design of handed tool holders, able to minimize accumulation of workpieces. High rigidity due to design of vertical insert. Maximum cut off diameter: 12mm 0.7 1.0 1.5 2.0 0.7 1.0 1.5 2.0 0.7 1.0 1.5 2.0 CTBH D013 For gang type tool posts. Small Shank : 10 16mm Single holder for inserts for back turning and cutting off. High rigidity due to design of vertical insert. Maximum cut off diameter: 16mm 1.5 2.0 1.5 2.0 1.5 2.0 CTCH D021 For gang type tool posts. Small Shank : 10mm,12mm High cutting edge sharpness and excellent chip discharge. Maximum cut off diameter: 20mm 2.2 2.5 2.2 2.5 2.2 2.5 F002
