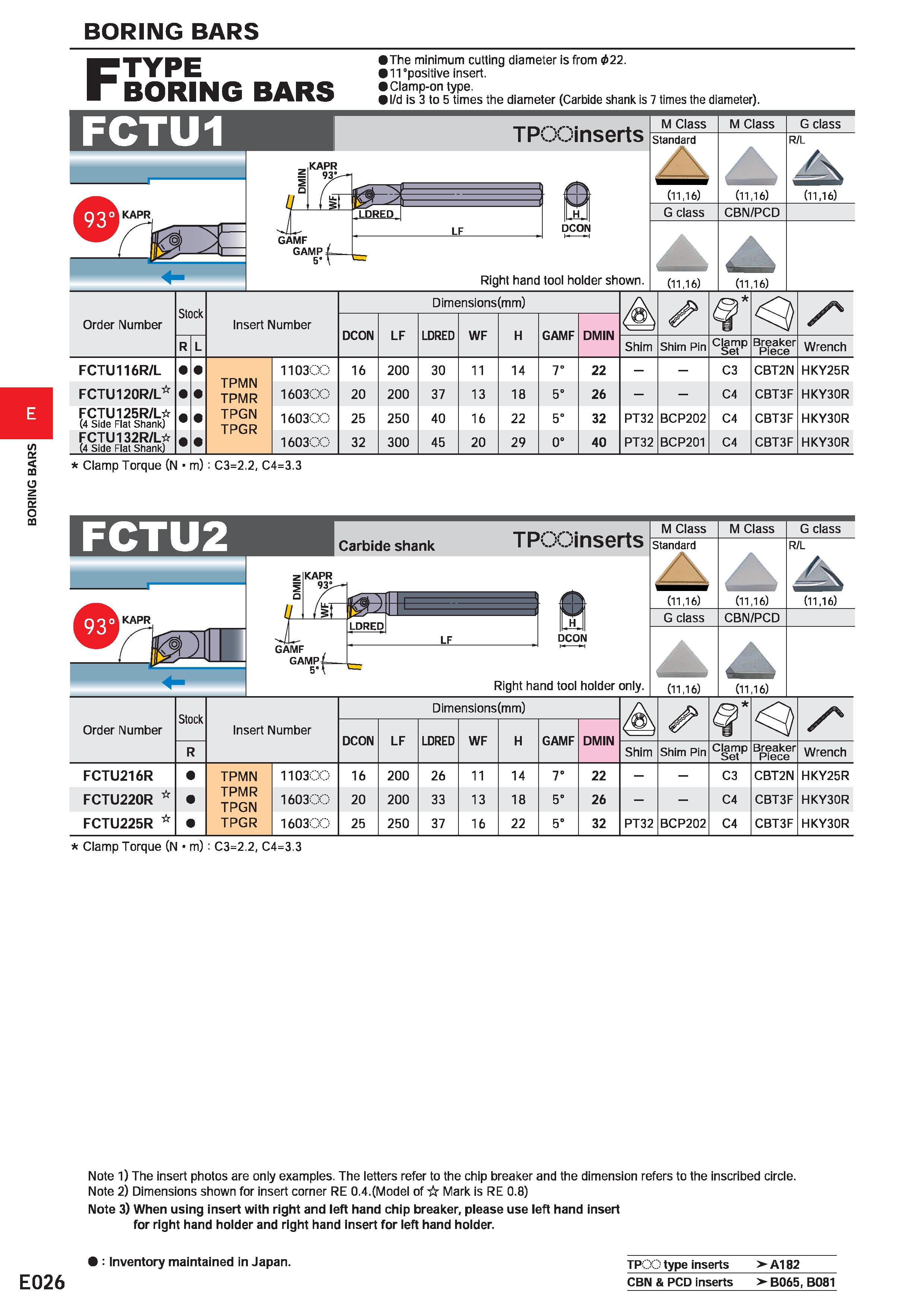

BORING BARS TYPE BORING BARS F FCTU1 The minimum cutting diameter is from 022. 11 "positive insert. Clamp-on type. I/d is 3 to 5 times the diameter (Carbide shank is 7 times the diameter). TPOOinserts KAPR DCON Right hand tool holder shown. M Class Standard (11,16) G class (11,16) M Class (11,16) CBN/PCD (11,16) G class (11,16) Order Number Stock Insert Number Dimensions(mm) 9 A DCON LF LDRED WF H GAMF DMIN R L Shim Shim Pin Clamp Set Breaker Piece Wrench FCTU116R/L TPMN TPMR 1103.:. 16 200 30 11 14 T 22 - - C3 CBT2N HKY25R FCTU120R/L 1603..:.. 20 200 37 13 18 5° 26 - - C4 CBT3F HKY30R FCTU125R/L (4 Side Flat Shank) TPGN TPGR 1603. : . 25 250 40 16 22 5° 32 PT32 BCP202 C4 CBT3F HKY30R FCTU132R/L (4 Side Flat Shank) 1603..:.. 32 300 45 20 29 0° 40 PT32 BCP201 C4 CBT3F HKY30R Clamp Torque (N m): C3=2.2, C4=3.3 Carbide shank TPOOinserts KAPR KAPR 93; Em GAMF GAMP LDRED LF ft DCON Right hand tool holder only. M Class M Class G class Standard R/L (11,16) (11,16) (11,16) G class CBN/PCD (11,16) (11,16) Order Number Stock Insert Number Dimensions(mm) Z' DCON LF LDRED WF H GAMF DMIN R Shim Shim Pin Clamp Set Breaker Piece Wrench FCTU216R TPMN 1103/. 16 200 26 11 14 7° 22 - - C3 CBT2N HKY25R FCTU220R TPMR TPGN 160300 20 200 33 13 18 5° 26 - - C4 CBT3F HKY30R FCTU225R TPGR 160300 25 250 37 16 22 5° 32 PT32 BCP202 C4 CBT3F HKY30R Clamp Torque (N m) : C3=2.2, C4=3.3 Note 1) The insert photos are only examples. The letters refer to the chip breaker and the dimension refers to the inscribed circle. Note 2) Dimensions shown for insert corner RE 0.4.(Model of -fr Mark is RE 0.8) Note 3) When using insert with right and left hand chip breaker, please use left hand insert for right hand holder and right hand insert for left hand holder. : Inventory maintained in Japan. E026 TPOO type inserts > A182 CBN & PCD inserts >- B065, B081
