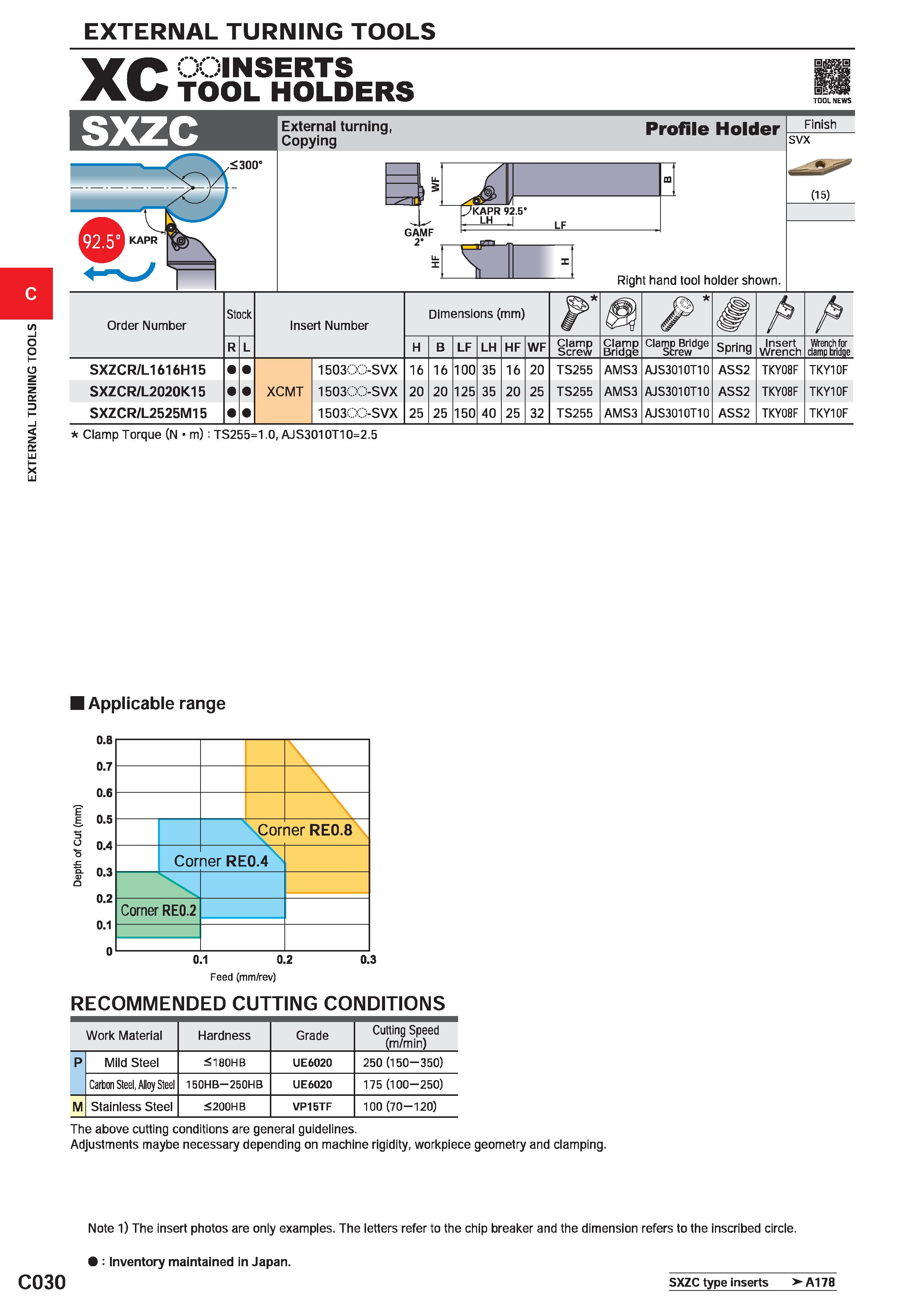

EXTERNAL TURNING TOOLS EXTERNAL TURNING TOOLS c C030 xc INSERTS TOOL HOLDERS TOOL NEWS External turning, Copying Profile Holder 300° l GAMF yKAPR 92.5’ LH , LF Right hand tool holder shown. Finish svx (15) Order Number Stock Insert Number Dimensions (mm) H A R L H B LF LH HF WF Clamp Screw Clamp Bridqe Clamp Bridge Screw Spring Insert Wrench Wrench for damp bridge SXZCR/L1616H15 150300 SVX 16 16 100 35 16 20 TS255 AM S3 AJS3010T10 ASS2 TKY08F TKY10F SXZCR/L2020K15 XCMT 1503..: svx 20 20 125 35 20 25 TS255 AM S3 AJS3010T10 ASS2 TKY08F TKY10F SXZCR/L2525M15 1503..;:. svx 25 25 150 40 25 32 TS255 AM S3 AJS3010T10 ASS2 TKY08F TKY10F Clamp Torque (N m): TS255=1.0, AJS3010T10=2.5 Applicable range 5 o CJ LU JDED CUT TING CO NDITIONS Work Material Hardness Grade Cutting Speed (m/m in) P Mild Steel 180HB UE6020 250 (150-350) Carbon Steel, Alloy Steel 150HB 250HB UE6020 175 (100-250) M Stainless Steel 200HB VP15TF 100 (70-120) The above cutting conditions are general guidelines. Adjustments maybe necessary depending on machine rigidity, workpiece geometry and clamping. Note 1) The insert photos are only examples. The letters refer to the chip breaker and the dimension refers to the inscribed circle. : Inventory maintained in Japan. SXZC type inserts > A178
