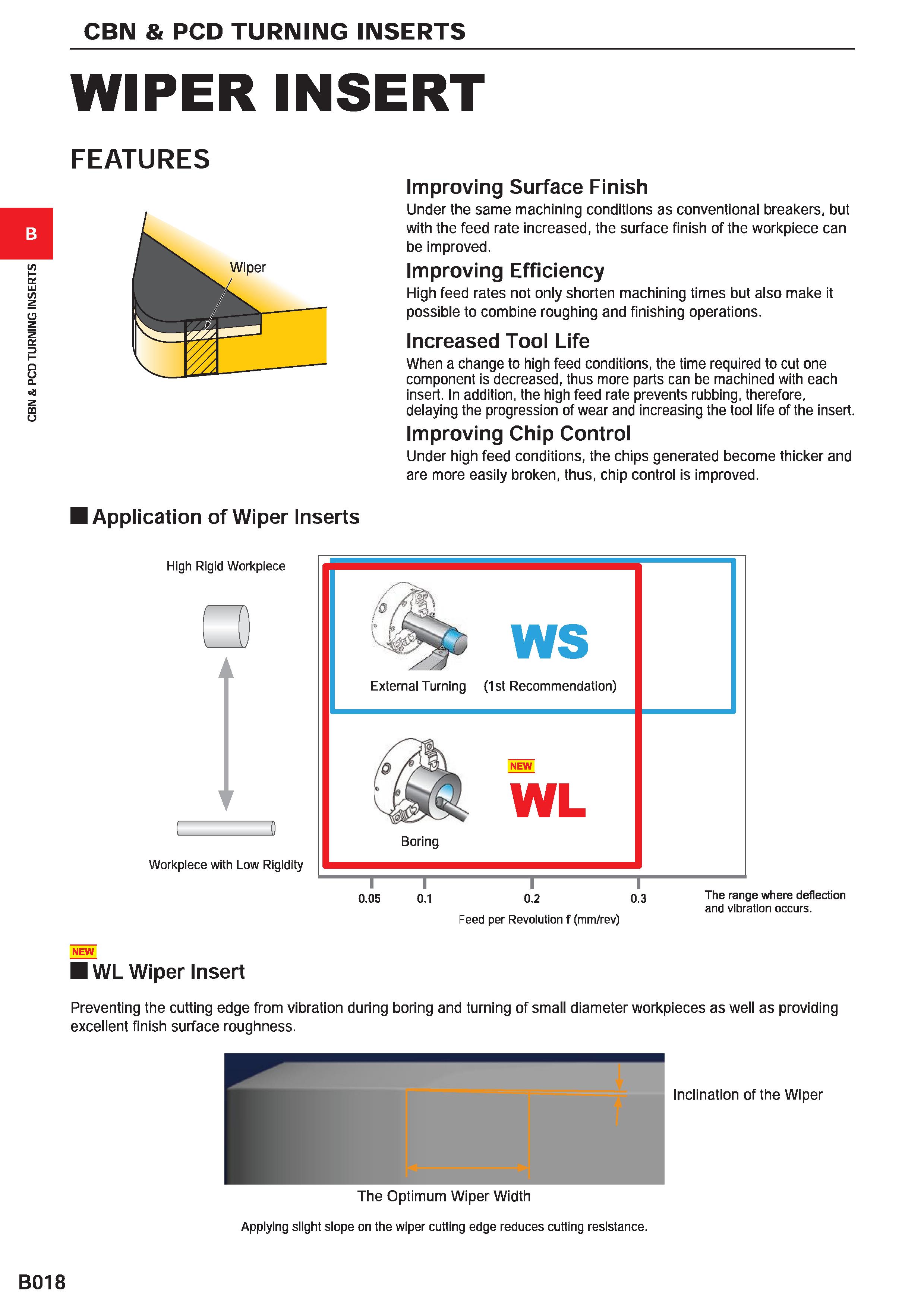

CBN & PCD TURNING INSERTS CBN & PCD TURNING INSERTS WIPER INSERT FEATURES Improving Surface Finish Under the same machining conditions as conventional breakers, but with the feed rate increased, the surface finish of the workpiece can be improved. Improving Efficiency High feed rates not only shorten machining times but also make it possible to combine roughing and finishing operations. Increased Tool Life When a change to high feed conditions, the time required to cut one component is decreased, thus more parts can be machined with each insert. In addition, the high feed rate prevents rubbing, therefore, delaying the progression of wear and increasing the tool life of the insert. Improving Chip Control Under high feed conditions, the chips generated become thicker and are more easily broken, thus, chip control is improved. I Application of Wiper Inserts High Rigid Workpiece Workpiece with Low Rigidity ws External Turning (1st Recommendation) 1 WL Boring 0.05 0.1 0.2 Feed per Revolution f (mm/rev) 0.3 The range where deflection and vibration occurs. WL Wiper Insert Preventing the cutting edge from vibration during boring and turning of small diameter workpieces as well as providing excellent finish surface roughness. Inclination of the Wiper The Optimum Wiper Width Applying slight slope on the wiper cutting edge reduces cutting resistance. B018
