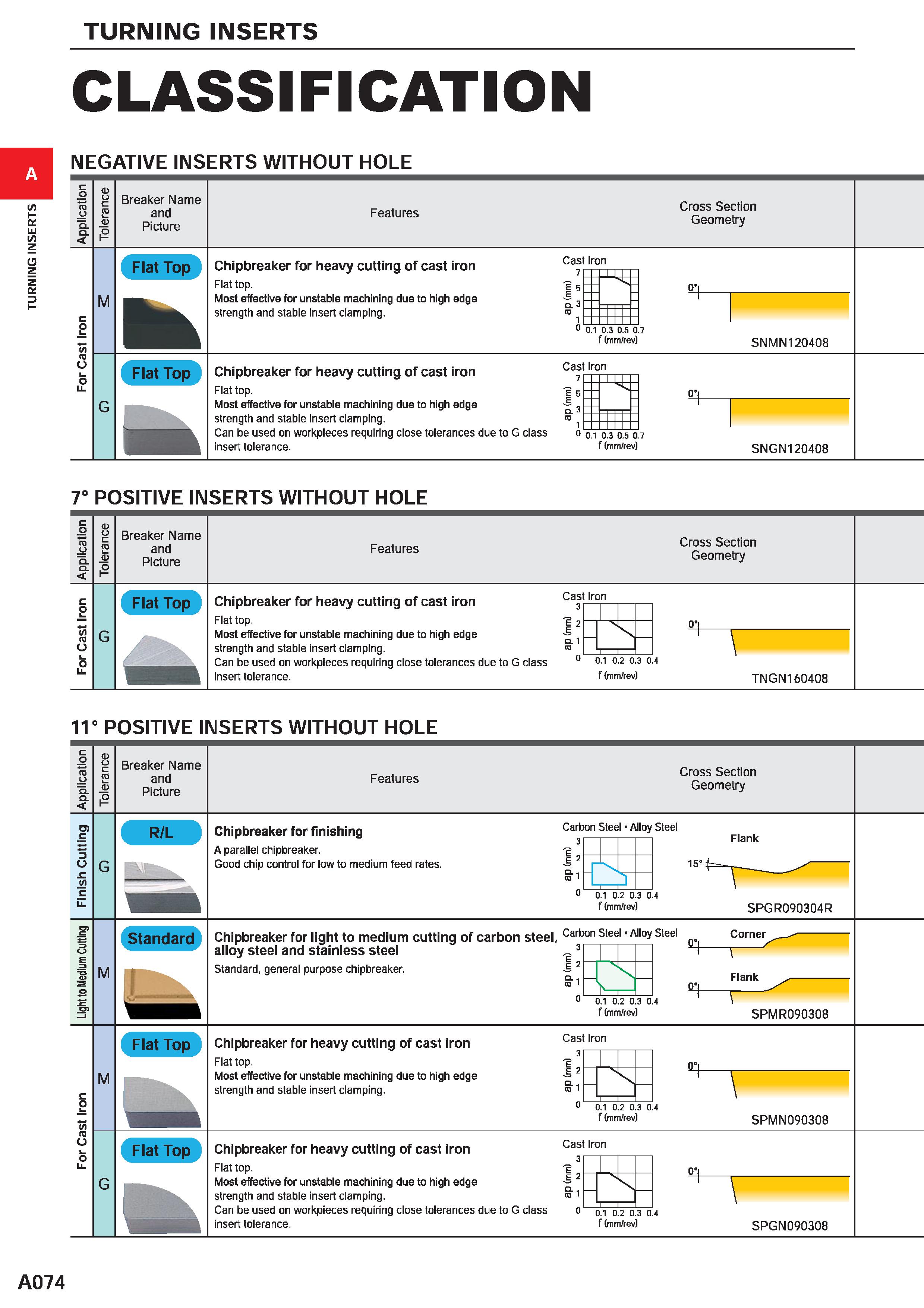

TURNING INSERTS CLASSIFICATION NEGATIVE INSERTS WITHOUT HOLE Breaker Name and Picture Features Cross Section Geometry M Chipbreaker for heavy cutting of cast iron Flat top. Most effective for unstable machining due to high edge strength and stable insert clamping. Cast Iron =: f (mm/rev) SNMN120408 Chipbreaker for heavy cutting of cast iron Flat top. Most effective for unstable machining due to high edge strength and stable insert clamping. Can be used on workpieces requiring close tolerances due to G class insert tolerance. Cast Iron 7 I5 0 0.1 0.3 0.5 0.7 f (mm/rev) SNGN120408 7° POSITIVE INSERTS WITHOUT HOLE Breaker Name and Picture Features Cross Section Geometry Flat Top Chipbreaker for heavy cutting of cast iron Flat top. Most effective for unstable machining due to high edge strength and stable insert clamping. Can be used on workpieces requiring close tolerances due to G class insert tolerance. Cast Iron 3 I I2 Q.1 TO 0 0.1 0.2 0.3 0.4 f (mm/rev) TNGN160408 11° POSITIVE INSERTS WITHOUT HOLE Q. Breaker Name and Picture Features Cross Section Geometry o WL Chipbreaker for finishing A parallel chipbreaker. Good chip control for low to medium feed rates. Carbon Steel Alloy Steel sr Flank 0 0.1 0.2 0.3 0.4 f (mm/rev) SPGR090304R M Chipbreaker for light to medium cutting of carbon steel, Carbon steel Alloysteel Corner alloy steel and stainless steel Standard, general purpose chipbreaker. 12 T Flank 0.1 0.2 0.3 0.4 f (mm/rev) SPMR090308 M Chipbreaker for heavy cutting of cast iron Flat top. Most effective for unstable machining due to high edge strength and stable insert clamping. Cast Iron 3 ' 12 0 0.1 0.2 0.3 0.4 f (mm/rev) SPMN090308 Chipbreaker for heavy cutting of cast iron Flat top. Most effective for unstable machining due to high edge strength and stable insert clamping. Can be used on workpieces requiring close tolerances due to G class insert tolerance. Cast Iron 3r I2 0 0.10.2 0.3 0.4 f (mm/rev) SPGN090308 A074
