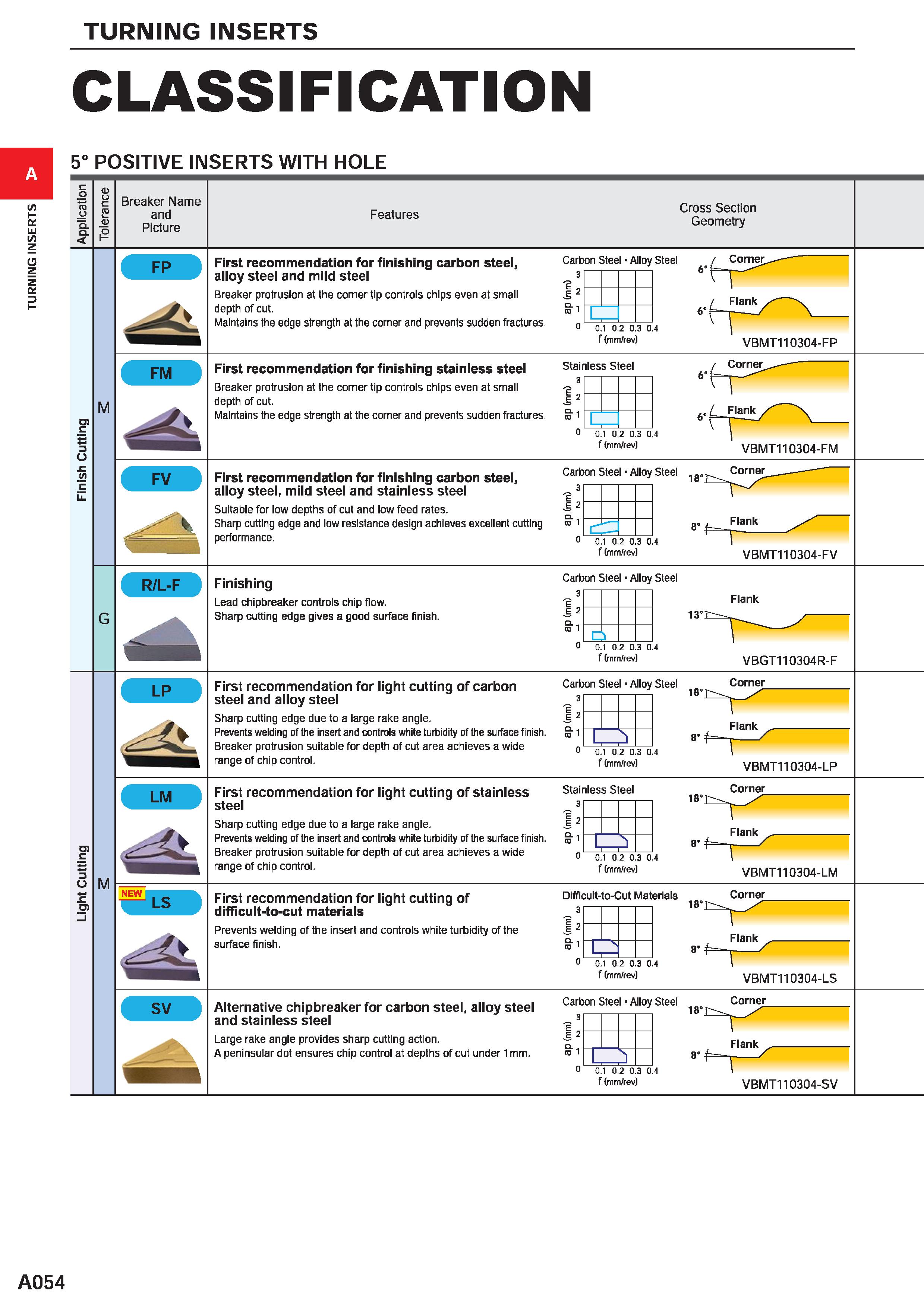

TURNING INSERTS CLASSIFICATION 5° POSITIVE INSERTS WITH HOLE c o D O TO O c TO Q. D 1 Breaker Name and Picture Features Cross Section Geometry First recommendation for finishing carbon steel, alloy steel and mild steel Breaker protrusion at the corner tip controls chips even at small depth of cut. Maintains the edge strength at the corner and prevents sudden fractures. Carbon Steel Alloy Steel 3 2 o 0.1 0.2 0.3 0.4 f (mm/rev) VBMT110304-FP M O First recommendation for finishing stainless steel Breaker protrusion at the comer tip controls chips even at small depth of cut. Maintains the edge strength at the corner and prevents sudden fractures. Stainless Steel 3 I2 0.1 0.2 0.3 0.4 f (mm/rev) VBMT110304-FM First recommendation for finishing carbon steel, alloy steel, mild steel and stainless steel Suitable for low depths of cut and low feed rates. Sharp cutting edge and low resistance design achieves excellent cutting performance. Carbon Steel Alloy Steel 3r I2 Flank 0 0.1 0.2 0.3 0.4 f (mm/rev) VBMT110304-FV Finishing Lead chipbreaker controls chip flow. Sharp cutting edge gives a good surface finish. Carbon Steel Alloy Steel 3 h "1 0 0.1 0.2 0.3 0.4 f (mm/rev) Flank VBGT110304R-F First recommendation for light cutting of carbon steel and alloy steel Sharp cutting edge due to a large rake angle. Prevents welding of the insert and controls white turbidity of the surface finish. Breaker protrusion suitable for depth of cut area achieves a wide range of chip control. Carbon Steel Alloy Steel 3 I 2 o 1 'l 18° Corner Flank 8 0.1 0.2 0.3 0.4 f (mm/rev) VBMT110304-LP LM 0 £ 01 M First recommendation for light cutting of stainless steel Sharp cutting edge due to a large rake angle. Prevents welding of the insert and controls white turbidity of the surface finish. Breaker protrusion suitable for depth of cut area achieves a wide range of chip control. Stainless Steel 3 I 2 1 l 18° Corner Flank 8-f=-r 0.1 0,2 0.3 0.4 f (mm/rev) VBMT110304-LM LS ft First recommendation for light cutting of difflcult-to-cut materials Prevents welding of the insert and controls white turbidity of the surface finish. ifficult-to-Cut Materials 3 I2 1 0 18° Corner Flank 0.1 0,2 0.3 0.4 f (mm/rev) VBMT110304-LS sv Alternative chipbreaker for carbon steel, alloy steel and stainless steel Large rake angle provides sharp cutting action. A peninsular dot ensures chip control at depths of cut under 1mm. Carbon Steel Alloy Steel 3 h ro1 0 1 'I 18° Corner Flank 0.1 0.2 0.3 0.4 f (mm/rev) VBMT110304-SV A054
