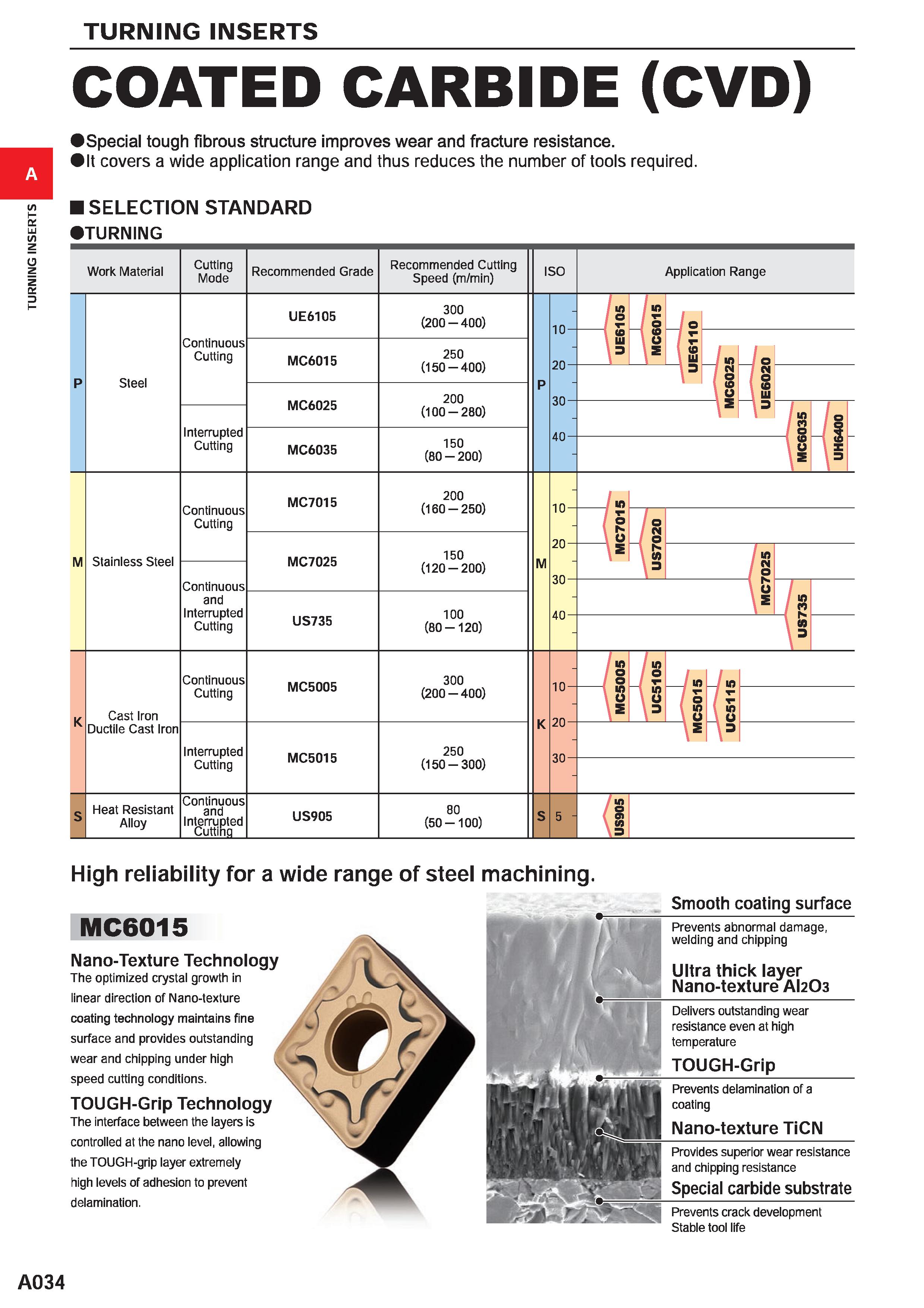

TURNING INSERTS COATED CARBIDE (CVD) Special tough fibrous structure improves wear and fracture resistance. It covers a wide application range and thus reduces the number of tools required. I SELECTION STANDARD TURNING Work Material Cutting Mode Recommended Grade Recommended Cutting Speed (m/min) ISO Application Range UE6105 Continuous Cutting MC6015 Steel MC6025 Interrupted Cutting MC6035 300 (200-400) 250 (150-400) 200 (100-280) 150 (80-200) Continuous Cutting MC7015 M Stainless Steel MC7025 Continuous and Interrupted Cutting US735 200 (160-250) 150 (120-200) M 100 (80-120) 10- 20- 30- 40- Continuous Cutting MC5005 Cast Iron Ductile Cast Iron Interrupted Cutting MC5015 300 (200-400) 250 (150-300) 10- 20- 30- : Heat Resistant Alloy Continuous and Interrupted Cutting US905 80 (50-100) 5 - High reliability for a wide range of steel MC6015 Nano-Texture Technology The optimized crystal growth in linear direction of Nano-texture coating technology maintains fine surface and provides outstanding wear and chipping under high speed cutting conditions. TOUGH-Grip Technology The interface between the layers is controlled at the nano level, allowing the TOUGH-grip layer extremely high levels of adhesion to prevent delamination. machining. Smooth coating surface Prevents abnormal damage, welding and chipping Ultra thick layer Nano-texture AI2O3 Delivers outstanding wear resistance even at high temperature TOUGH-Grip Prevents delamination of a coating Nano-texture TiCN Provides superior wear resistance and chipping resistance Special carbide substrate Prevents crack development Stable tool life A034
