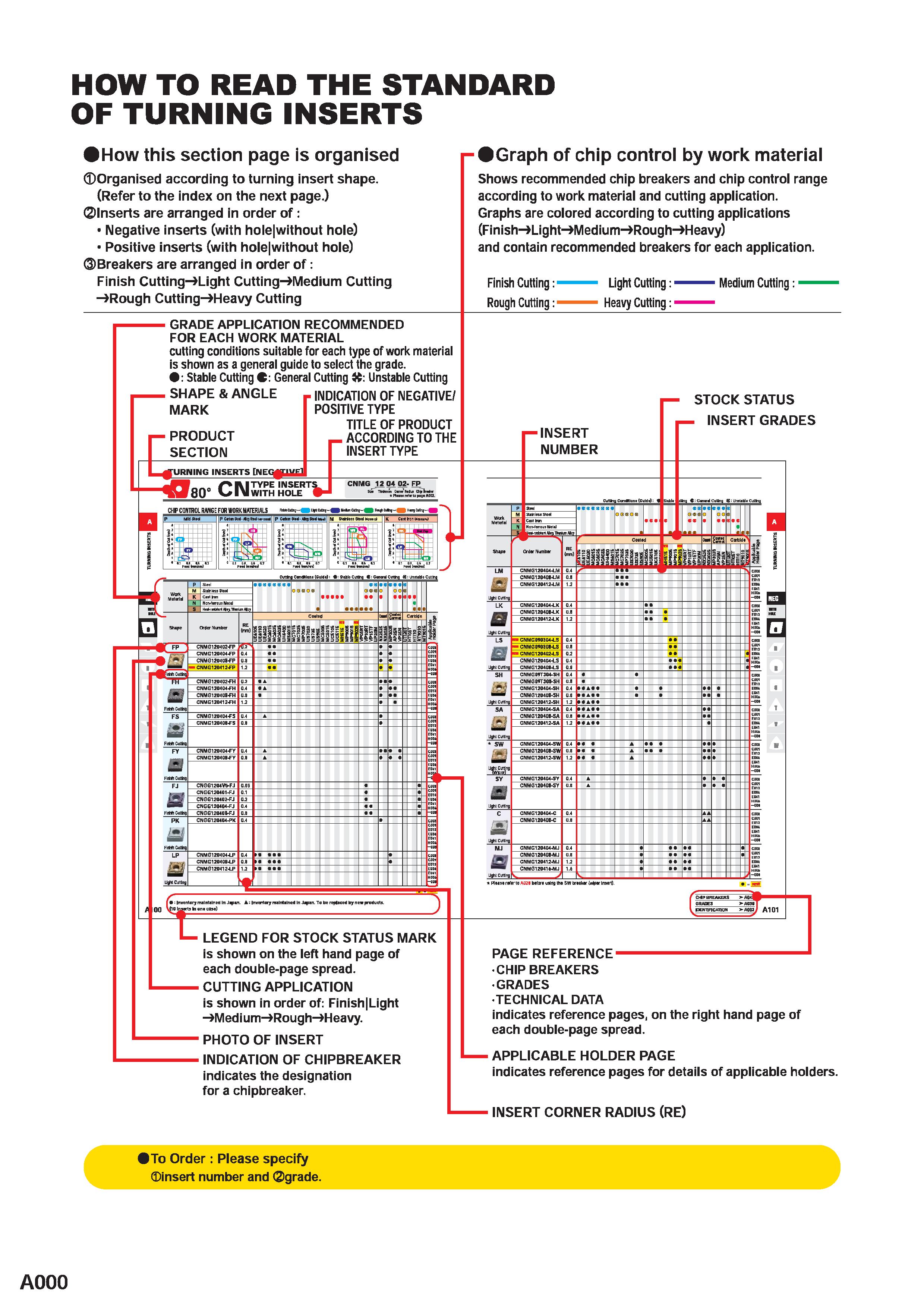

HOW TO READ THE STANDARD OF TURNING INSERTS How this section page is organised Organised according to turning insert shape. (Refer to the index on the next page.) Inserts are arranged in order of: Negative inserts (with hole without hole) Positive inserts (with hole without hole) Breakers are arranged in order of: Finish Cutting- Light Cutting- Medium Cutting - Rough Cutting- Heavy Cutting Graph of chip control by work material Shows recommended chip breakers and chip control range according to work material and cutting application. Graphs are colored according to cutting applications (Finish- Light- Medium- Rough- Heavy) and contain recommended breakers for each application. Finish Cutting: -Rough Cutting: - Light Cutting: Heavy Cutting: 1 Medium Cutting: GRADE APPLICATION RECOMMENDED FOR EACH WORK MATERIAL cutting conditions suitable for each type of work material is shown as a general guide to select the grade. : Stable Cutting C: General Cutting X: Unstable Cutting , SHAPE & ANGLE INDICATION OF NEGATIVE/ POSITIVE TYPE TITLE OF PRODUCT ACCORDING TO THE INSERT TYPE I STOCK STATUS INSERT GRADES - nr tl a CNMGIHHOZ-FH CNMG12Q404-FH CNMG120412-FH CNMG12M04-FY CNMG12Q40B-FY CNGC1204fl4-PK £ LEGEND FOR STOCK STATUS MARK is shown on the left hand page of each double-page spread. CUTTING APPLICATION is shown in order of: Finish Light - Medium- Rough- Heavy. 1 PHOTO OF INSERT INDICATION OF CHIPBREAKER indicates the designation for a chipbreaker. PAGE REFERENCE CHIP BREAKERS GRADES TECHNICAL DATA indicates reference pages, on the right hand page of each double-page spread. APPLICABLE HOLDER PAGE indicates reference pages for details of applicable holders. INSERT CORNER RADIUS (RE) >To Order: Please specify insert number and grade. A000
