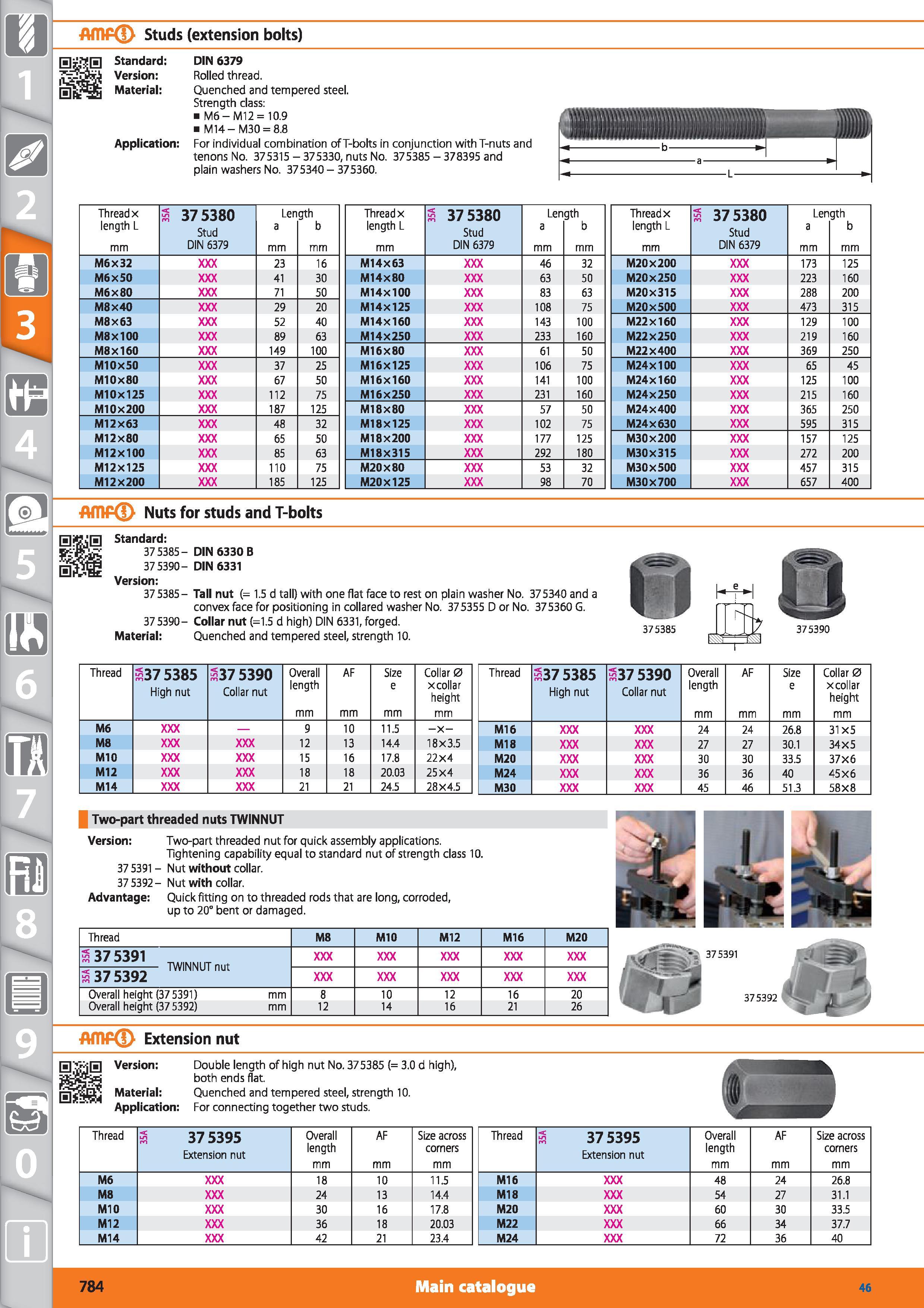

784 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.784

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 784 0784 ENG Lab2u

ATOP Studs (extension bolts) Standard Version Material Application DIN 6379 Rolled thread. Quenched and tempered steel. Strength class M6-M12 10.9 M14- M30 8.8 For individual combination of T-bolts in conjunction with T-nuts and tenons No. 375315-375330, nuts No. 375385 - 378395 and plain washers No. 375340-375360. Threadx length L mm 3 375380 Stud DIN 6379 Len a mm gth b mm Thread x length L mm 3 37 5380 Stud DIN 6379 Len a mm gth b mm Threadx length L mm 3 375380 Stud DIN 6379 Len a mm gth b mm M6X32 23 16 M14X63 46 32 M20X200 173 125 M6x50 41 30 M14X80 63 50 M20X250 223 160 M6x80 71 50 M14X100 83 63 M20X315 288 200 M8x40 29 20 M14X125 108 75 M20X500 473 315 M8x63 52 40 M14X160 143 100 M22X160 129 100 M8X100 89 63 M14X250 233 160 M22X250 219 160 M8X160 149 100 M16X80 61 50 M22X400 369 250 M10X50 37 25 M16X125 106 75 M24X100 65 45 M10x80 67 50 M16X160 141 100 M24X160 125 100 M10x125 112 75 M16X250 231 160 M24X250 215 160 M10X200 187 125 M18X80 57 50 M24X400 365 250 Ml 2x63 48 32 M18X125 102 75 M24X630 595 315 Ml 2x80 65 50 M18X200 177 125 M30X200 157 125 M12X100 85 63 M18X315 292 180 M30X315 272 200 M12X125 110 75 M20X80 53 32 M30X500 457 315 M12X200 185 125 M20X125 98 70 M30X700 657 400 ATOP Nuts for studs and T-bolts 0 0 Standard reflag 37 5385 - DIN 6330 B j-jjjjjliljg 375390- DIN 6331 Version 375385- Tall nut (= 1.5 d tall) with one flat face to rest on plain washer No. 375340 and a convex face for positioning in collared washer No. 375355 D or No. 375360 G. 375390- Collar nut (=1.5 d high) DIN 6331, forged. Material Quenched and tempered steel, strength 10. Thread 3375385 High nut s37 5390 Collar nut Overall length mm AF mm Size e mm Collar 0 x collar height mm Thread 337 5385 High nut 337 5390 Collar nut Overall length mm AF mm Size e mm Collar 0 xcollar height mm M6 9 10 11.5 -X- Ml 6 24 24 26.8 31x5 M8 12 13 14.4 18x3.5 M18 27 27 30.1 34x5 M10 15 16 17.8 22x4 M20 30 30 33.5 37X6 M12 18 18 20.03 25X4 M24 36 36 40 45X6 M14 21 21 24.5 28X4.5 M30 45 46 51.3 58x8 Two-part threaded nuts TWINNUT Version Two-part threaded nut for quick assembly applications. Tightening capability equal to standard nut of strength class 10. 37 5391 - Nut without collar. 37 5392 - Nut with collar. Advantage Quick fitting on to threaded rods that are long, corroded, up to 20° bent or damaged. Thread M8 M10 M12 M16 M20 3 375391 3 375392 Overall height (375391) mm 8 10 12 16 20 Overall height (37 5392) mm 12 14 16 21 26 375391 AfTIPd) Extension nut Material Application Double length of high nut No. 375385 (= 3.0 d high), both ends flat. Quenched and tempered steel, strength 10. For connecting together two studs. 375392 Thread 3 375395 Extension nut Overall length mm AF mm Size across corners mm Thread 3 375395 Extension nut Overall length mm AF mm Size across corners mm M6 18 10 11.5 M16 48 24 26.8 M8 24 13 14.4 M18 54 27 31.1 M10 30 16 17.8 M20 60 30 33.5 M12 36 18 20.03 M22 66 34 37.7 M14 42 21 23.4 M24 72 36 40 784 Main catalogue Hoffmann Group 46
