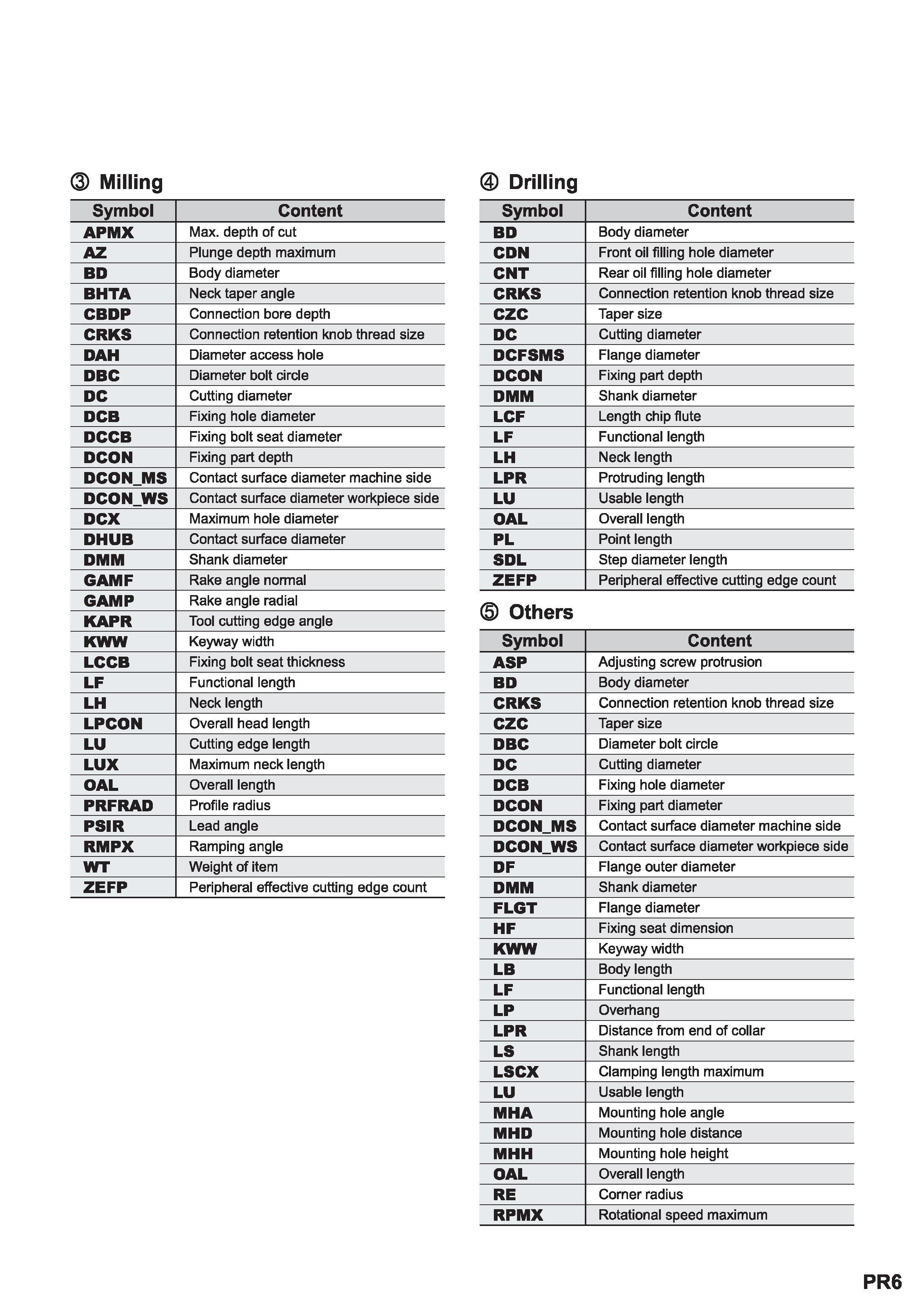

Milling Symbol Content APMX Max. depth of cut AZ Plunge depth maximum BD Body diameter BHTA Neck taper angle CBDP Connection bore depth CRKS Connection retention knob thread size DAH Diameter access hole DBC Diameter bolt circle DC Cutting diameter DCB Fixing hole diameter DCCB Fixing bolt seat diameter DCON Fixing part depth DCONMS Contact surface diameter machine side DCONWS Contact surface diameter workpiece side DCX Maximum hole diameter DHUB Contact surface diameter DMM Shank diameter GAMF Rake angle normal GAMP Rake angle radial KAPR Tool cutting edge angle KWW Keyway width LCCB Fixing bolt seat thickness LF Functional length LH Neck length LPCON Overall head length Cutting edge length LUX Maximum neck length OAL Overall length PRFRAD Profile radius PSIR Lead angle RMPX Ramping angle WT Weight of item ZEFP Peripheral effective cutting edge count Drilling Symbol Content BD Body diameter CDN Front oil filling hole diameter CNT Rear oil filling hole diameter CRKS Connection retention knob thread size CZC Taper size DC Cutting diameter DCFSMS Flange diameter DCON Fixing part depth DMM Shank diameter LCF Length chip flute LF Functional length LH Neck length LPR Protruding length Usable length OAL Overall length PL Point length SDL Step diameter length ZEFP Peripheral effective cutting edge count Others Symbol Content ASP Adjusting screw protrusion BD Body diameter CRKS Connection retention knob thread size CZC Taper size DBC Diameter bolt circle DC Cutting diameter DCB Fixing hole diameter DCON Fixing part diameter DCONJVIS Contact surface diameter machine side DCONJWS Contact surface diameter workpiece side DF Flange outer diameter DMM Shank diameter FLGT Flange diameter HF Fixing seat dimension KWW Keyway width LB Body length LF Functional length LP Overhang LPR Distance from end of collar LS Shank length LSCX Clamping length maximum Usable length MHA Mounting hole angle MHD Mounting hole distance MHH Mounting hole height OAL Overall length RE Corner radius RPMX Rotational speed maximum PR6
