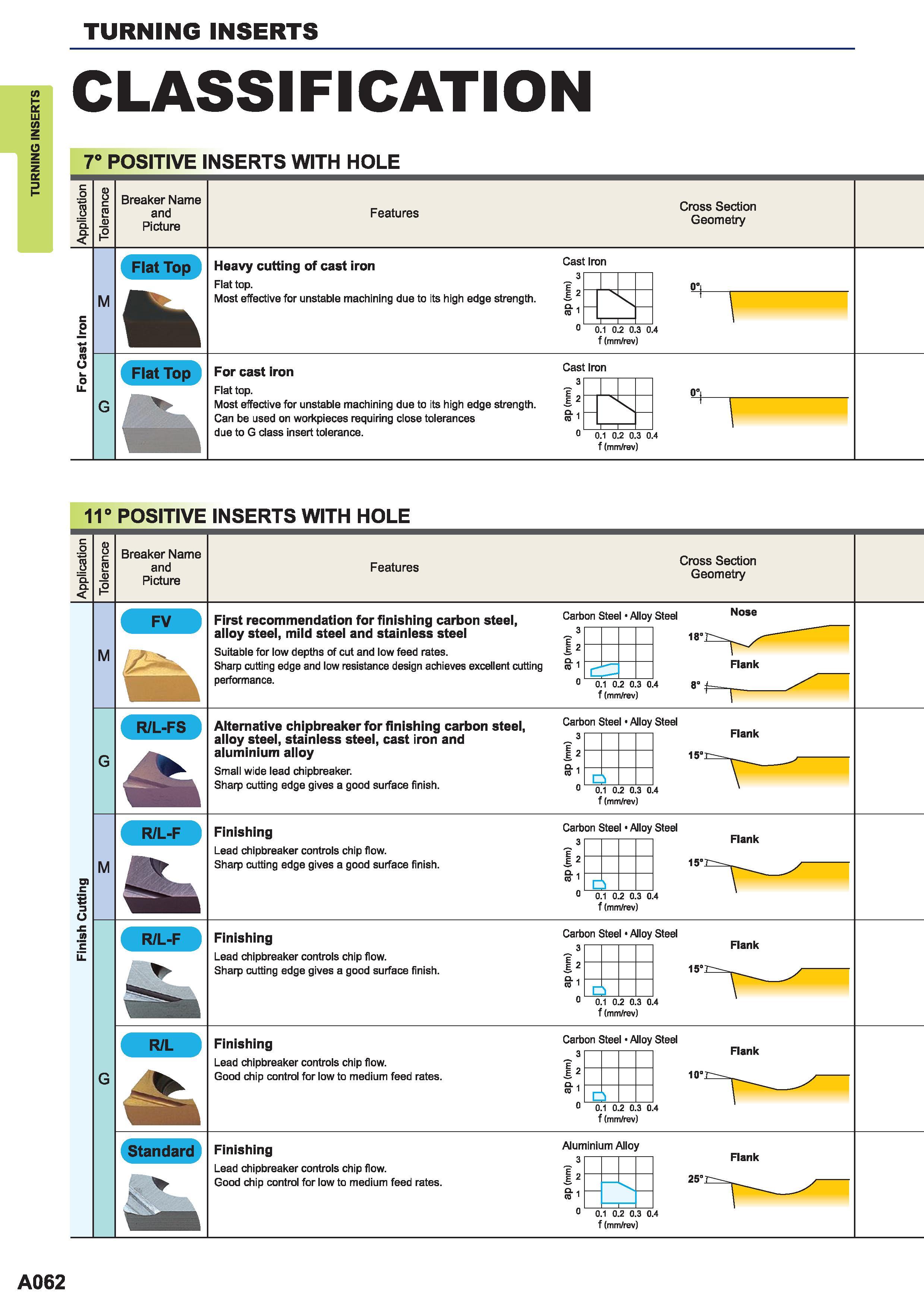

TURNING INSERTS TURNING INSERTS CLASSIFICATION 7 POSITIVE INSERTS WITH HOLE g a. a. Breaker Name and Picture Features Cross Section Geometry M Heavy cutting of cast iron Flat top. Most effective for unstable machining due to its high edge strength. Cast Iron I2 0 0.1 0.2 0.3 0.4 f (mm/rev) For cast iron Flat top. Most effective for unstable machining due to its high edge strength. Can be used on workpieces requiring close tolerances due to G class insert tolerance. Cast Iron 3 I2 0 0.1 0.2 0.3 0.4 f (mm/rev) 11 POSITIVE INSERTS WITH HOLE a. Breaker Name and Picture Features Cross Section Geometry M First recommendation for finishing carbon steel alloy steel mild steel and stainless steel Suitable for low depths of cut and low feed rates. Sharp cutting edge and low resistance design achieves excellent cutting performance. Carbon Steel Alloy Steel 3 2 Nose Flank 0.1 0.2 0.3 0.4 f (mm/rev) :f Alternative chipbreaker for finishing carbon steel alloy steel stainless steel cast iron and aluminium alloy Small wide lead chipbreaker. Sharp cutting edge gives a good surface finish. Carbon Steel Alloy Steel I2 Flank 0.1 0.2 0.3 0.4 f (mm/rev) T M Ui c s 3 o .c tn Finishing Lead chipbreaker controls chip flow. Sharp cutting edge gives a good surface finish. Carbon Steel Alloy Steel I2 Flank 0.1 0.2 0.3 0.4 f (mm/rev) R L-F K Finishing Lead chipbreaker controls chip flow. Sharp cutting edge gives a good surface finish. Carbon Steel Alloy Steel I2 Flank 0.1 0.2 0.3 0.4 f (mm/rev) Finishing Lead chipbreaker controls chip flow. Good chip control for low to medium feed rates. Carbon Steel Alloy Steel I2 Flank 0.1 0.2 0.3 0.4 f (mm/rev) Finishing Lead chipbreaker controls chip flow. Good chip control for low to medium feed rates. Aluminium Alloy 3 2 Flank 0.1 0.2 0.3 0.4 f (mm/rev) A062
