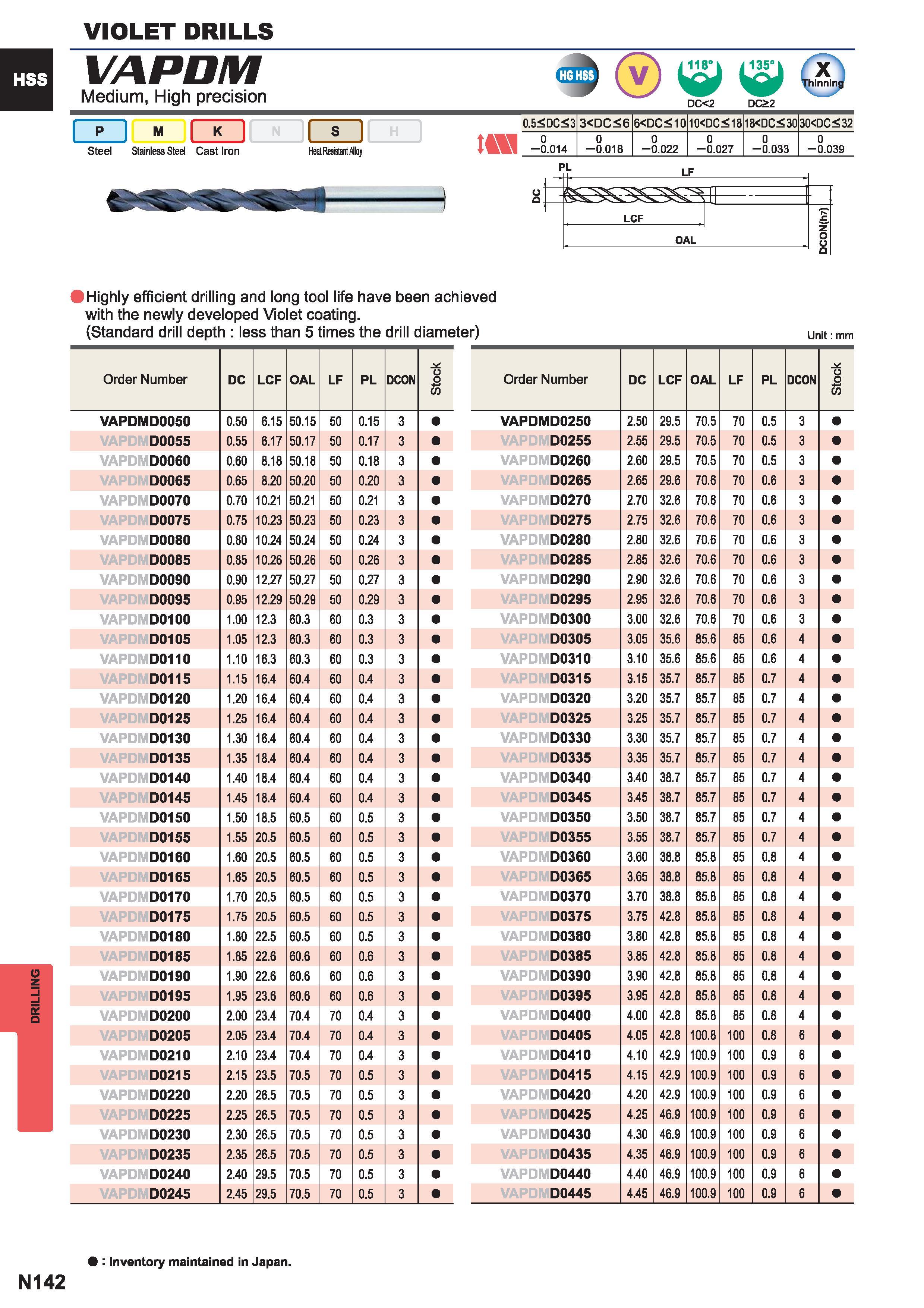

VIOLET DRILLS VAPDM Medium High precision (jg) (g) DC2 DCS2 p M K s 0.5DC3 3DC6 6DC10 10DC18 18DC30 30DC32 1411 Steel Stainless Steel Cast Iron Heat Resistant Altov -0.014 -0.018 -0.022 -0.027 -0.033 -0.039 PL LF r LCF t Z OAL Highly efficient drilling and long tool life have been achieved with the newly developed Violet coating. (Standard drill depth less than 5 times the drill diameter) Unit mm Order Number DC LCF OAL LF PL DCON Stock VAPDM D0050 0.50 6.15 50.15 50 0.15 3 D0055 0.55 6.17 50.17 50 0.17 3 1 D0060 0.60 8.18 50.18 50 0.18 3 D0065 0.65 8.20 50.20 50 0.20 3 D0070 0.70 10.21 50.21 50 0.21 3 D0075 0.75 10.23 50.23 50 0.23 3 D0080 0.80 10.24 50.24 50 0.24 3 D0085 0.85 10.26 50.26 50 0.26 3 1 D0090 0.90 12.27 50.27 50 0.27 3 1 D0095 0.95 12.29 50.29 50 0.29 3 D0100 1.00 12.3 60.3 60 0.3 3 D0105 1.05 12.3 60.3 60 0.3 3 D0110 1.10 16.3 60.3 60 0.3 3 D0115 1.15 16.4 60.4 60 0.4 3 1 D0120 1.20 16.4 60.4 60 0.4 3 1 D0125 1.25 16.4 60.4 60 0.4 3 1 D0130 1.30 16.4 60.4 60 0.4 3 D0135 1.35 18.4 60.4 60 0.4 3 1 D0140 1.40 18.4 60.4 60 0.4 3 D0145 1.45 18.4 60.4 60 0.4 3 D0150 1.50 18.5 60.5 60 0.5 3 1 D0155 1.55 20.5 60.5 60 0.5 3 1 D0160 1.60 20.5 60.5 60 0.5 3 1 D0165 1.65 20.5 60.5 60 0.5 3 D0170 1.70 20.5 60.5 60 0.5 3 D0175 1.75 20.5 60.5 60 0.5 3 D0180 1.80 22.5 60.5 60 0.5 3 1 D0185 1.85 22.6 60.6 60 0.6 3 1 D0190 1.90 22.6 60.6 60 0.6 3 1 D0195 1.95 23.6 60.6 60 0.6 3 1 D0200 2.00 23.4 70.4 70 0.4 3 D0205 2.05 23.4 70.4 70 0.4 3 D0210 2.10 23.4 70.4 70 0.4 3 D0215 2.15 23.5 70.5 70 0.5 3 D0220 2.20 26.5 70.5 70 0.5 3 D0225 2.25 26.5 70.5 70 0.5 3 D0230 2.30 26.5 70.5 70 0.5 3 D0235 2.35 26.5 70.5 70 0.5 3 D0240 2.40 29.5 70.5 70 0.5 3 D0245 2.45 29.5 70.5 70 0.5 3 Order Number DC LCF OAL LF PL DCON Stock VAPDMD0250 2.50 29.5 70.5 70 0.5 3 D0255 2.55 29.5 70.5 70 0.5 3 D0260 2.60 29.5 70.5 70 0.5 3 D0265 2.65 29.6 70.6 70 0.6 3 D0270 2.70 32.6 70.6 70 0.6 3 D0275 2.75 32.6 70.6 70 0.6 3 D0280 2.80 32.6 70.6 70 0.6 3 D0285 2.85 32.6 70.6 70 0.6 3 D0290 2.90 32.6 70.6 70 0.6 3 D0295 2.95 32.6 70.6 70 0.6 3 11 D0300 3.00 32.6 70.6 70 0.6 3 D0305 3.05 35.6 85.6 85 0.6 4 D0310 3.10 35.6 85.6 85 0.6 4 D0315 3.15 35.7 85.7 85 0.7 4 D0320 3.20 35.7 85.7 85 0.7 4 D0325 3.25 35.7 85.7 85 0.7 4 D0330 3.30 35.7 85.7 85 0.7 4 D0335 3.35 35.7 85.7 85 0.7 4 11 D0340 3.40 38.7 85.7 85 0.7 4 D0345 3.45 38.7 85.7 85 0.7 4 D0350 3.50 38.7 85.7 85 0.7 4 D0355 3.55 38.7 85.7 85 0.7 4 D0360 3.60 38.8 85.8 85 0.8 4 11 D0365 3.65 38.8 85.8 85 0.8 4 D0370 3.70 38.8 85.8 85 0.8 4 D0375 3.75 42.8 85.8 85 0.8 4 D0380 3.80 42.8 85.8 85 0.8 4 D0385 3.85 42.8 85.8 85 0.8 4 D0390 3.90 42.8 85.8 85 0.8 4 D0395 3.95 42.8 85.8 85 0.8 4 1 D0400 4.00 42.8 85.8 85 0.8 4 11 D0405 4.05 42.8 100.8 100 0.8 6 D0410 4.10 42.9 100.9 100 0.9 6 D0415 4.15 42.9 100.9 100 0.9 6 D0420 4.20 42.9 100.9 100 0.9 6 D0425 4.25 46.9 100.9 100 0.9 6 D0430 4.30 46.9 100.9 100 0.9 6 D0435 4.35 46.9 100.9 100 0.9 6 D0440 4.40 46.9 100.9 100 0.9 6 D0445 4.45 46.9 100.9 100 0.9 6 Inventory maintained in Japan.
