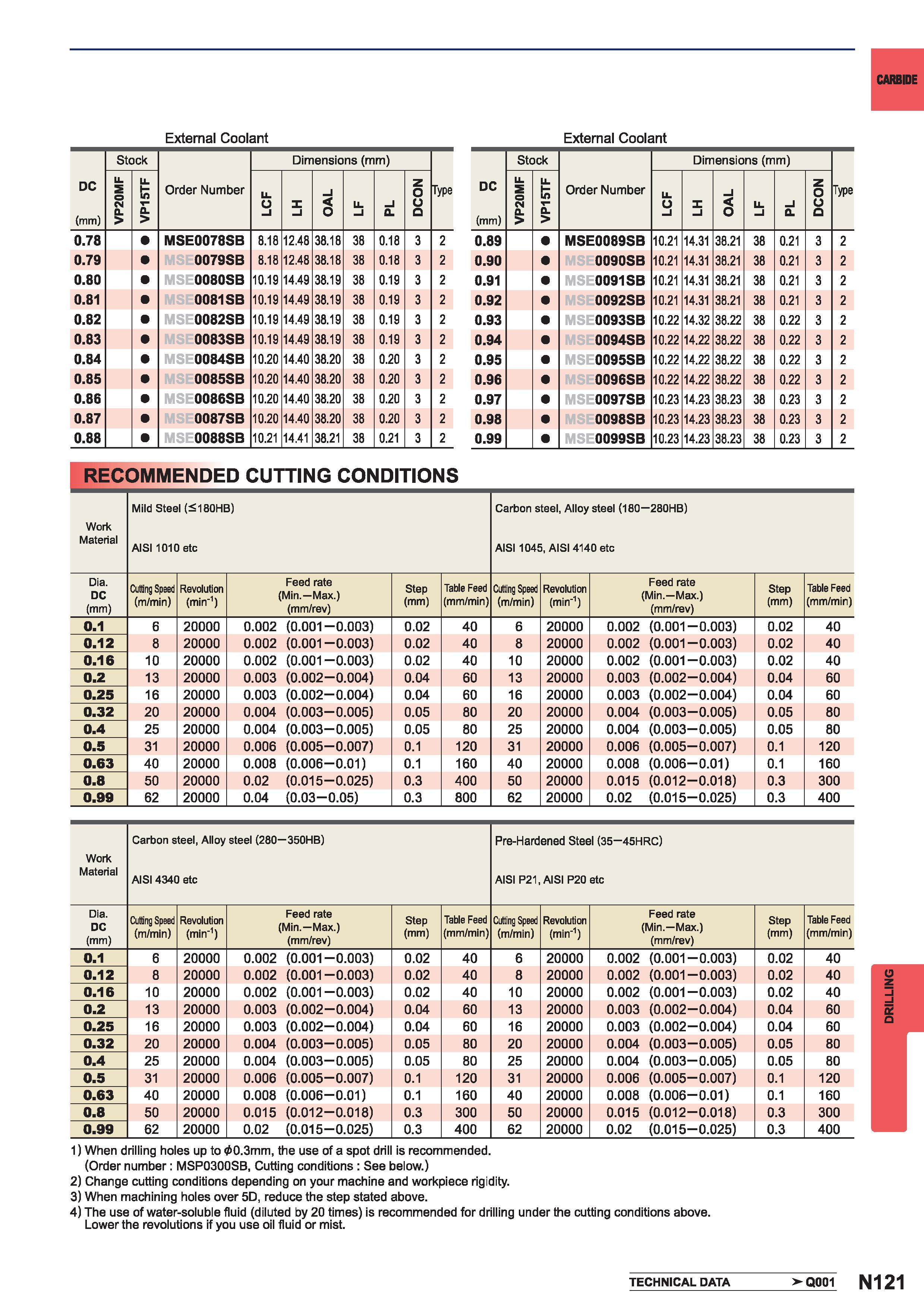

1437 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N121

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N121 1437 ENG Lab2u

CARBIDE External Coolant External Coolant DC (mm) Stock Order Number Dimensions (mm) Type DC (mm) Stock Order Number Dimensions (mm) Type VP20MF VP15TF LCF X i OAL 0. DCON VP20MF VP15TF LCF X i OAL u. 0. DCON 0.78 MSE0078SB 8.18 12.48 38.18 38 0.18 3 2 0.89 MSE0089SB 10.21 14.31 38.21 38 0.21 3 2 0.79 0079SB 8.18 12.48 38.18 38 0.18 3 2 0.90 0090SB 10.21 14.31 38.21 38 0.21 3 2 0.80 0080SB 10.19 14.49 38.19 38 0.19 3 2 0.91 0091 SB 10.21 14.31 38.21 38 0.21 3 2 0.81 0081 SB 10.19 14.49 38.19 38 0.19 3 2 0.92 0092SB 10.21 14.31 38.21 38 0.21 3 2 0.82 0082SB 10.19 14.49 38.19 38 0.19 3 2 0.93 0093SB 10.22 14.32 38.22 38 0.22 3 2 0.83 0083SB 10.19 14.49 38.19 38 0.19 3 2 0.94 0094SB 10.22 14.22 38.22 38 0.22 3 2 0.84 0084SB 10.20 14.40 38.20 38 0.20 3 2 0.95 0095SB 10.22 14.22 38.22 38 0.22 3 2 0.85 0085SB 10.20 14.40 38.20 38 0.20 3 2 0.96 0096SB 10.22 14.22 38.22 38 0.22 3 2 0.86 0086SB 10.20 14.40 38.20 38 0.20 3 2 0.97 0097SB 10.23 14.23 38.23 38 0.23 3 2 0.87 0087SB 10.20 14.40 38.20 38 0.20 3 2 0.98 0098SB 10.23 14.23 38.23 38 0.23 3 2 0.88 0088SB 10.21 14.41 38.21 38 0.21 3 2 0.99 0099SB 10.23 14.23 38.23 38 0.23 3 2 RECOMMENDED CUTTING CONDITIONS Work Material Mild Steel (180HB) AISI 1010 etc Carbon steel Alloy steel (180 280HB) AISI 1045 AISI 4140 etc Dia. DC (mm) Cutting Speed (m/min) Revolution (min'1) Feed rate (Min. Max.) (mm/rev) Step (mm) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min'1) Feed rate (Min. Max.) (mm/rev) Step (mm) Table Feed (mm/min) 0.1 6 20000 0.002 (0.001-0.003) 0.02 40 6 20000 0.002 (0.001-0.003) 0.02 40 0.12 8 20000 0.002 (0.001-0.003) 0.02 40 8 20000 0.002 (0.001-0.003) 0.02 40 0.16 10 20000 0.002 (0.001-0.003) 0.02 40 10 20000 0.002 (0.001-0.003) 0.02 40 0.2 13 20000 0.003 (0.002-0.004) 0.04 60 13 20000 0.003 (0.002-0.004) 0.04 60 0.25 16 20000 0.003 (0.002-0.004) 0.04 60 16 20000 0.003 (0.002-0.004) 0.04 60 0.32 20 20000 0.004 (0.003-0.005) 0.05 80 20 20000 0.004 (0.003-0.005) 0.05 80 0.4 25 20000 0.004 (0.003-0.005) 0.05 80 25 20000 0.004 (0.003-0.005) 0.05 80 0.5 31 20000 0.006 (0.005-0.007) 0.1 120 31 20000 0.006 (0.005-0.007) 0.1 120 0.63 40 20000 0.008 (0.006-0.01) 0.1 160 40 20000 0.008 (0.006-0.01) 0.1 160 0.8 50 20000 0.02 (0.015-0.025) 0.3 400 50 20000 0.015 (0.012-0.018) 0.3 300 0.99 62 20000 0.04 (0.03-0.05) 0.3 800 62 20000 0.02 (0.015-0.025) 0.3 400 Work Material Carbon steel Alloy steel (280 350HB) AISI 4340 etc Pre-Hardened Steel (35 45HRC) AISI P21 AISI P20 etc ia. DC (mm) Cutting Speed (m/min) Revolution (min'1) Feed rate (Min. Max.) (mm/rev) Step (mm) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min'1) Feed rate (Min. Max.) (mm/rev) Step (mm) Table Feed (mm/min) 0.1 6 20000 0.002 (0.001-0.003) 0.02 40 6 20000 0.002 (0.001-0.003) 0.02 40 0.12 8 20000 0.002 (0.001-0.003) 0.02 40 8 20000 0.002 (0.001-0.003) 0.02 40 0.16 10 20000 0.002 (0.001-0.003) 0.02 40 10 20000 0.002 (0.001-0.003) 0.02 40 0.2 13 20000 0.003 (0.002-0.004) 0.04 60 13 20000 0.003 (0.002-0.004) 0.04 60 0.25 16 20000 0.003 (0.002-0.004) 0.04 60 16 20000 0.003 (0.002-0.004) 0.04 60 0.32 20 20000 0.004 (0.003-0.005) 0.05 80 20 20000 0.004 (0.003-0.005) 0.05 80 0.4 25 20000 0.004 (0.003-0.005) 0.05 80 25 20000 0.004 (0.003-0.005) 0.05 80 0.5 31 20000 0.006 (0.005-0.007) 0.1 120 31 20000 0.006 (0.005-0.007) 0.1 120 0.63 40 20000 0.008 (0.006-0.01) 0.1 160 40 20000 0.008 (0.006-0.01) 0.1 160 0.8 50 20000 0.015 (0.012-0.018) 0.3 300 50 20000 0.015 (0.012-0.018) 0.3 300 0.99 62 20000 0.02 (0.015-0.025) 0.3 400 62 20000 0.02 (0.015-0.025) 0.3 400 1) When drilling holes up to 00.3mm the use of a spot drill is recommended. (Order number MSP0300SB Cutting conditions See below.) 2) Change cutting conditions depending on your machine and workpiece rigidity. 3) When machining holes over 5D reduce the step stated above. 4) The use of water-soluble fluid (diluted by 20 times) is recommended for drilling under the cutting conditions above. Lower the revolutions if you use oil fluid or mist. TECHNICAL DATA -Q001 N121 DRILLING
