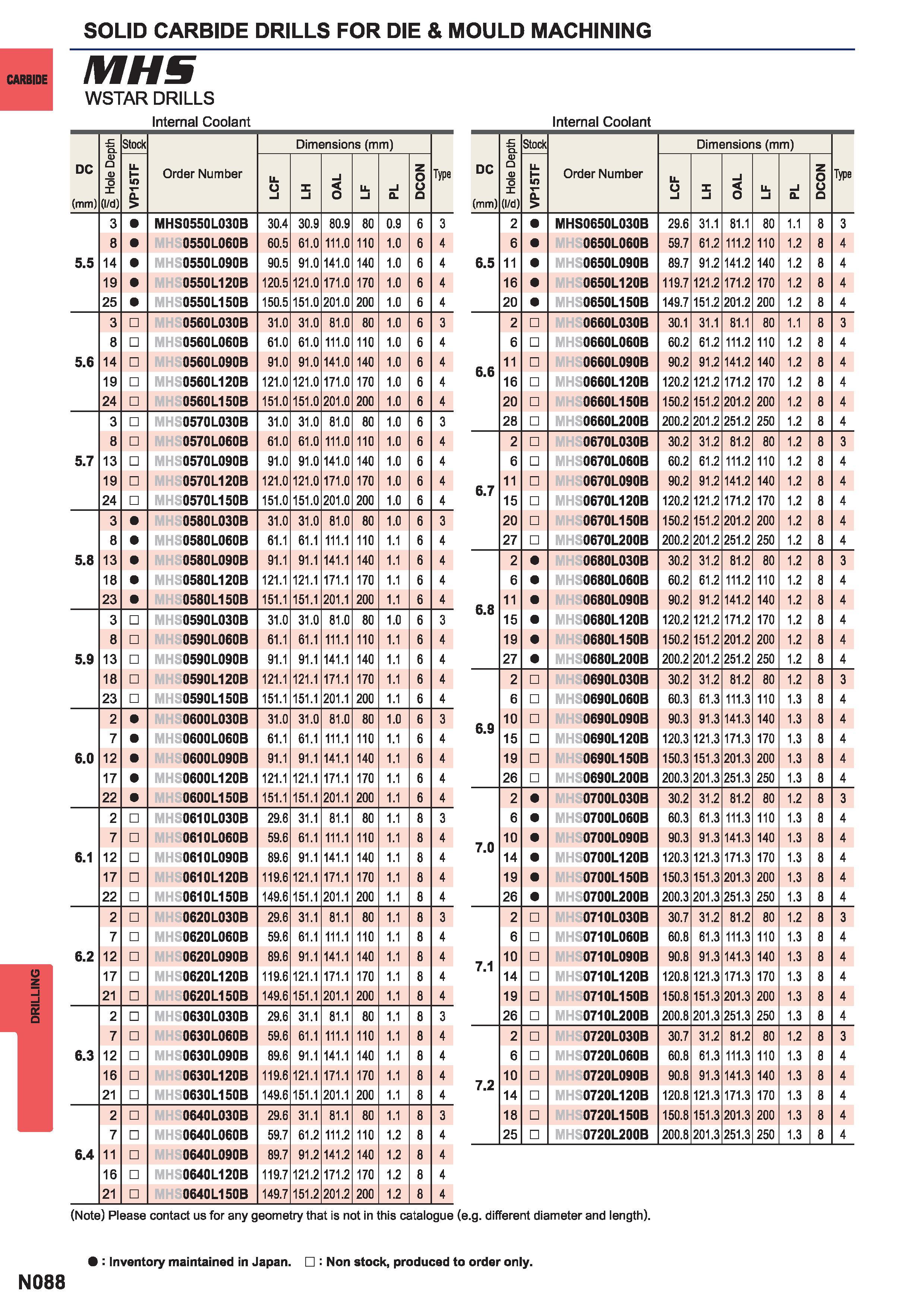

SOLID CARBIDE DRILLS FOR DIE & MOULD MACHINING MHS WSTAR DRILLS Internal Coolant DC (mm) g Hole Depth Stock Order Number Dimensions (mm) Type VP15TF LCF X i OAL u. DCON 3 MHS0550L030B 30.4 30.9 80.9 80 0.9 6 8 0550L060B 60.5 61.0 111.0 110 1.0 6 4 5.5 14 0550L090B 90.5 91.0 141.0 140 1.0 6 4 19 0550L120B 120.5 121.0 171.0 170 1.0 6 4 25 0550L150B 150.5 151.0 201.0 200 1.0 6 4 3 0560L030B 31.0 31.0 81.0 80 1.0 6 8 0560L060B 61.0 61.0 111.0 110 1.0 6 4 5.6 14 0560L090B 91.0 91.0 141.0 140 1.0 6 4 19 0560L120B 121.0 121.0 171.0 170 1.0 6 4 24 0560L150B 151.0 151.0 201.0 200 1.0 6 4 3 0570L030B 31.0 31.0 81.0 80 1.0 6 8 0570L060B 61.0 61.0 111.0 110 1.0 6 4 5.7 13 0570L090B 91.0 91.0 141.0 140 1.0 6 4 19 0570L120B 121.0 121.0 171.0 170 1.0 6 4 24 0570L150B 151.0 151.0 201.0 200 1.0 6 4 3 0580L030B 31.0 31.0 81.0 80 1.0 6 8 0580L060B 61.1 61.1 111.1 110 1.1 6 4 5.8 13 0580L090B 91.1 91.1 141.1 140 1.1 6 4 18 0580L120B 121.1 121.1 171.1 170 1.1 6 4 23 0580L150B 151.1 151.1 201.1 200 1.1 6 4 3 0590L030B 31.0 31.0 81.0 80 1.0 6 8 0590L060B 61.1 61.1 111.1 110 1.1 6 4 5.9 13 0590L090B 91.1 91.1 141.1 140 1.1 6 4 18 0590L120B 121.1 121.1 171.1 170 1.1 6 4 23 0590L150B 151.1 151.1 201.1 200 1.1 6 4 2 0600L030B 31.0 31.0 81.0 80 1.0 6 7 0600L060B 61.1 61.1 111.1 110 1.1 6 4 6.0 12 0600L090B 91.1 91.1 141.1 140 1.1 6 4 17 0600L120B 121.1 121.1 171.1 170 1.1 6 4 22 0600L150B 151.1 151.1 201.1 200 1.1 6 4 2 0610L030B 29.6 31.1 81.1 80 1.1 8 7 0610L060B 59.6 61.1 111.1 110 1.1 8 4 6.1 12 0610L090B 89.6 91.1 141.1 140 1.1 8 4 17 0610L120B 119.6 121.1 171.1 170 1.1 8 4 22 0610L150B 149.6 151.1 201.1 200 1.1 8 4 2 0620L030B 29.6 31.1 81.1 80 1.1 8 7 0620L060B 59.6 61.1 111.1 110 1.1 8 4 6.2 12 0620L090B 89.6 91.1 141.1 140 1.1 8 4 17 0620L120B 119.6 121.1 171.1 170 1.1 8 4 21 0620L150B 149.6 151.1 201.1 200 1.1 8 4 2 0630L030B 29.6 31.1 81.1 80 1.1 8 7 0630L060B 59.6 61.1 111.1 110 1.1 8 4 6.3 12 0630L090B 89.6 91.1 141.1 140 1.1 8 4 16 0630L120B 119.6 121.1 171.1 170 1.1 8 4 21 0630L150B 149.6 151.1 201.1 200 1.1 8 4 2 0640L030B 29.6 31.1 81.1 80 1.1 8 7 0640L060B 59.7 61.2 111.2 110 1.2 8 4 6.4 11 0640L090B 89.7 91.2 141.2 140 1.2 8 4 16 0640L120B 119.7 121.2 171.2 170 1.2 8 4 21 0640L150B 149.7 151.2 201.2 200 1.2 8 4 Internal Coolant DC (mm) a Hole Depth Stock Order Number Dimensions (mm) Type VP15TF LCF X i OAL u. DCON 2 MHS0650L030B 29.6 31.1 81.1 80 1.1 8 3 6 0650L060B 59.7 61.2 111.2 110 1.2 8 4 6.5 11 0650L090B 89.7 91.2 141.2 140 1.2 8 4 16 0650L120B 119.7 121.2 171.2 170 1.2 8 4 20 0650L150B 149.7 151.2 201.2 200 1.2 8 4 2 0660L030B 30.1 31.1 81.1 80 1.1 8 6 0660L060B 60.2 61.2 111.2 110 1.2 8 4 c e 11 0660L090B 90.2 91.2 141.2 140 1.2 8 4 O.D 16 0660L120B 120.2 121.2 171.2 170 1.2 8 4 20 0660L150B 150.2 151.2 201.2 200 1.2 8 4 28 0660L200B 200.2 201.2 251.2 250 1.2 8 4 2 0670L030B 30.2 31.2 81.2 80 1.2 8 6 0670L060B 60.2 61.2 111.2 110 1.2 8 4 c 7 11 0670L090B 90.2 91.2 141.2 140 1.2 8 4 O. 15 0670L120B 120.2 121.2 171.2 170 1.2 8 4 20 0670L150B 150.2 151.2 201.2 200 1.2 8 4 27 0670L200B 200.2 201.2 251.2 250 1.2 8 4 2 0680L030B 30.2 31.2 81.2 80 1.2 8 6 0680L060B 60.2 61.2 111.2 110 1.2 8 4 c o 11 0680L090B 90.2 91.2 141.2 140 1.2 8 4 0.0 15 0680L120B 120.2 121.2 171.2 170 1.2 8 4 19 0680L150B 150.2 151.2 201.2 200 1.2 8 4 27 0680L200B 200.2 201.2 251.2 250 1.2 8 4 2 0690L030B 30.2 31.2 81.2 80 1.2 8 6 0690L060B 60.3 61.3 111.3 110 1.3 8 4 A Q 10 0690L090B 90.3 91.3 141.3 140 1.3 8 4 0.9 15 0690L120B 120.3 121.3 171.3 170 1.3 8 4 19 0690L150B 150.3 151.3 201.3 200 1.3 8 4 26 0690L200B 200.3 201.3 251.3 250 1.3 8 4 2 0700L030B 30.2 31.2 81.2 80 1.2 8 6 0700L060B 60.3 61.3 111.3 110 1.3 8 4 7 n 10 0700L090B 90.3 91.3 141.3 140 1.3 8 4 i .u 14 0700L120B 120.3 121.3 171.3 170 1.3 8 4 19 0700L150B 150.3 151.3 201.3 200 1.3 8 4 26 0700L200B 200.3 201.3 251.3 250 1.3 8 4 2 0710L030B 30.7 31.2 81.2 80 1.2 8 6 0710L060B 60.8 61.3 111.3 110 1.3 8 4 7 1 10 0710L090B 90.8 91.3 141.3 140 1.3 8 4 t .1 14 0710L120B 120.8 121.3 171.3 170 1.3 8 4 19 0710L150B 150.8 151.3 201.3 200 1.3 8 4 26 0710L200B 200.8 201.3 251.3 250 1.3 8 4 2 0720L030B 30.7 31.2 81.2 80 1.2 8 6 0720L060B 60.8 61.3 111.3 110 1.3 8 4 7 9 10 0720L090B 90.8 91.3 141.3 140 1.3 8 4 f . 14 0720L120B 120.8 121.3 171.3 170 1.3 8 4 18 0720L150B 150.8 151.3 201.3 200 1.3 8 4 25 0720L200B 200.8 201.3 251.3 250 1.3 8 4 (Note) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). Inventory maintained in Japan. Non stock produced to order only.
